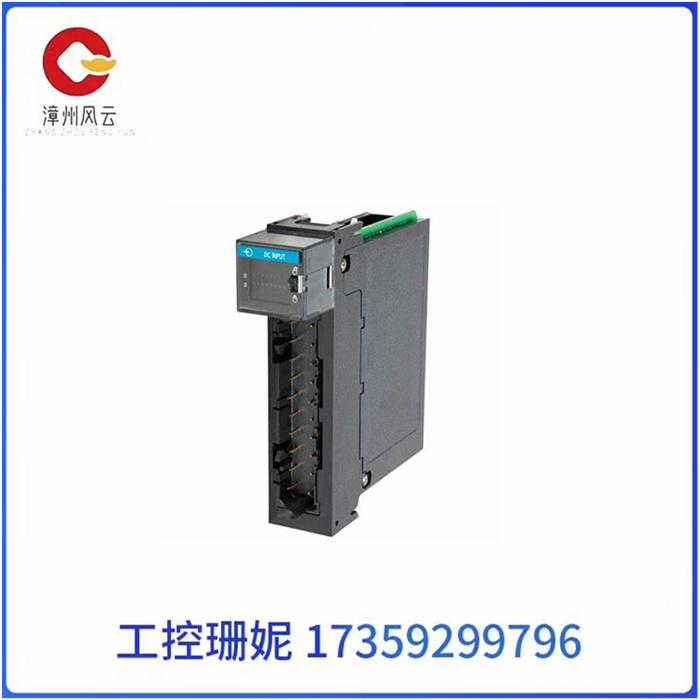

1756-IB16I 是一款 ControlLogix 离散输入模块。该模块具有十六 （16） 个独立隔离的输入通道，可接受 10-30VDC 的输入信号电压范围，标称值为 24VDC。该模块通常用于连接分立器件，如按钮、开关、辅助触点和其他提供二进制或ON-OFF信号状态的器件。

1756-IB16 是一个单插槽模块，可安装到任何 1756 ControlLogix 机箱上。它可以连接到任何可用的插槽，但专用于 ControlLogix 处理器或通信适配器的最插槽除外。因此，1756-IB16I 可用于本地 I/O 配置以及远程或分布式 I/O 架构。

1756-IB16I输入通道具有固有的信号转换延迟。对于 OFF 到 ON 转换，信号延迟最大为 1 ms + 滤波时间硬件延迟，其中用户可配置滤波时间，例如 0 ms、1 ms 或 2 ms。对于ON到OFF转换，信号延迟由最大4 ms+滤波时间组成，其中可选滤波时间为0 ms、1 ms、2 ms、9 ms或18 ms。该模块的电流消耗为 100 mA @ 5.1VDC 和 3 mA @ 24VDC，总背板功率要求为 0.58 瓦。

1756-IB16I ControlLogix离散输入模块

The 1756-IB16I is a ControlLogix discrete input module. The module has sixteen (16) independently isolated input channels that accept an input signal voltage range of 10-30VDC with a nominal value of 24VDC. The module is commonly used to connect discrete devices such as buttons, switches, auxiliary contacts, and other devices that provide binary or ON-OFF signal states.

The 1756-IB16 is a single slot module that can be installed into any 1756 ControlLogix chassis. It can be connected to any available slot, except for the most slot dedicated to the ControlLogix processor or communication adapter. As a result, the 1756-IB16I can be used for local I/O configurations as well as remote or distributed I/O architectures.

The 1756-IB16I input channel has an inherent signal conversion delay. For the OFF to ON conversion, the signal delay is up to 1 ms + filter time hardware delay, where the user can configure the filter time, such as 0 ms, 1 ms, or 2 ms. For ON-to-off conversion, the signal delay consists of a maximum of 4 ms+ filtering time, with optional filtering times of 0 ms, 1 ms, 2 ms, 9 ms, or 18 ms. The module's current consumption is 100 mA@ 5.1VDC and 3 mA@ 24VDC, with a total backplane power requirement of 0.58 watts.
