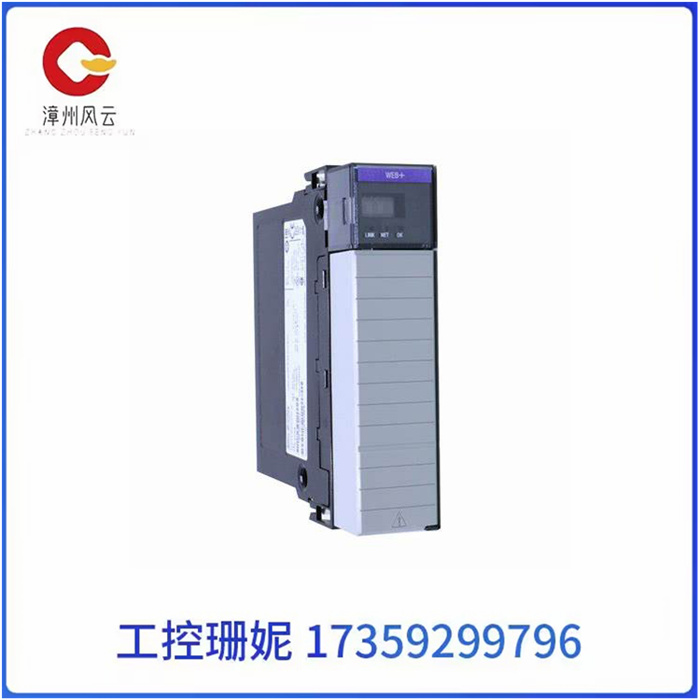

1756-EWEB 是一个单插槽模块

1756-EWEB 是一个单插槽模块

1756-EWEB或增强型Web服务器是一个模块，可通过Web浏览器访问控制系统中的信息。这还允许使用 XML 网页远程监控和修改同一机箱内的控制系统数据。1756-EWEB 模块允许您路由消息、闪存升级模块以及上传或下载程序。因此，1756-EWEB 模块充当访问目标设备的桥梁。也可以通过此模块创建适合您的应用程序的自定义网页。使用 ASP 函数，可以使用实时控制器数据填充网页。此功能受到限制，因为 1756-EWEB 模块最多只能存储 5 MB 的网页和数据视图。您还可以通过 1756-EWEB 模块的嵌入式电子邮件编辑器创建电子邮件，以及使用 MSG 指令发送由 Logix 控制器发起的电子邮件。请注意，当您使用该界面发送电子邮件时，每次都需要输入所有电子邮件信息。通过该模块也可以打开与其他标准以太网设备的TCP或UDP通信链路。1756-EWEB 模块可以支持多达 128 个连接的 CIP 连接消息，适用于桥接消息、ASP 函数调用和数据调用以及 32 个终端节点连接的任意组合。此外，它可以支持多达 256 个未连接的 CIP 消息，其中一半可以从以太网端口发送到模块或背板上的对象，另一半可以从背板到模块或以太网端口上的对象。模块连接到的每个 IP 地址都使用一个 TCP 连接，模块最多可支持 64 个 TCP 连接，这些连接将处理 CIP 连接。安装1756-EWEB模块非常简单;您只需要将模块与 1756 ControlLogix 控制器机箱中的插槽对齐，将其滑入直至卡入到位，然后将其连接到网络。

Allen-Bradley 1756-EWEB是一个ControlLogix通信模块。该模块专门用于以太网 I/P 通信桥接模块，允许远程访问 ControlLogix 控制器组件，包括用户程序和硬件配置。

1756-EWEB 带有单个 RJ-45 以太网接口，支持 10/100 Mbps 传输速度。当提供适当的IP地址时，可以使用标准Web浏览器访问模块的Web服务器功能。

1756-EWEB 是一个单插槽模块

The 1756-EWEB or Enhanced Web Server is a module that allows access to information in a control system through a Web browser. This also allows the use of XML web pages to remotely monitor and modify control system data within the same chassis. The 1756-EWEB module allows you to route messages, flash upgrade modules, and upload or download programs. Therefore, the 1756-EWEB module acts as a bridge to the target device. You can also use this module to create custom web pages suitable for your application. Using ASP functions, you can populate web pages with real-time controller data. This functionality is limited because the 1756-EWEB module can only store a maximum of 5 MB of web pages and data views. You can also create emails through the embedded email editor of the 1756-EWEB module, as well as send emails initiated by the Logix controller using the MSG command. Note that when you use this interface to send an email, you need to enter all the email information each time. TCP or UDP communication links with other standard Ethernet devices can also be opened through this module. The 1756-EWEB module can support CIP connection messages for up to 128 connections and is suitable for any combination of bridge messages, ASP function calls and data calls, and 32 end node connections. In addition, it can support up to 256 unconnected CIP messages, half of which can be sent from the Ethernet port to an object on the module or backplane, and the other half from the backplane to an object on the module or Ethernet port. Each IP address to which the module connects uses one TCP connection, and the module can support up to 64 TCP connections that will handle CIP connections. Installing the 1756-EWEB module is simple; You just need to align the module with the slot in the 1756 ControlLogix controller case, slide it in until it snaps into place, and then connect it to the network.

Allen-Bradley 1756-EWEB is a ControlLogix communication module. This module is specifically designed for Ethernet I/P communication bridge modules that allow remote access to ControlLogix controller components, including user programs and hardware configurations.

The 1756-EWEB comes with a single RJ-45 Ethernet interface that supports 10/100 Mbps transfer speeds. The Web server functionality of the module can be accessed using a standard Web browser when the appropriate IP address is provided.

1756-EWEB 是一个单插槽模块
