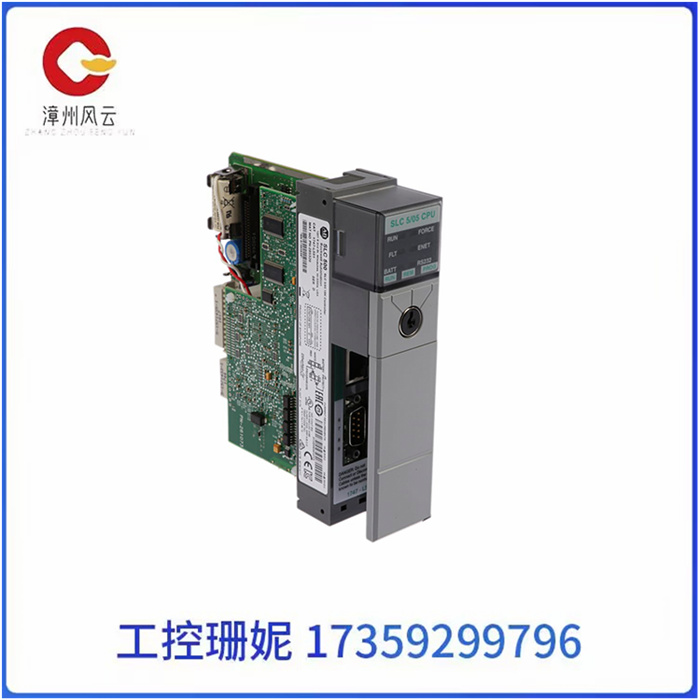

1747-L543 SLC 是 SLC 5/04 控制器

1747-L543 SLC 是 SLC 5/04 控制器

Allen-Bradley 1747-L543是SLC 500处理器。该硬件是一个处理器，其最大离散输入和输出容量分别为 4096。它具有64K字的集成存储器，特别是60K字用于数据和程序以及4K字仅用于数据。它还带有闪存EPROM备份存储器和107个编程指令。64-L1747 处理器的 543 KB RAM 由电池供电。1747-L543 的 I/O 机箱最多为 3 个，最多有 30 个 I/O 模块插槽。此处理器上的通信端口是 DH+ 端口和 RS-232 端口。1747-L543 它还具有状态 LED，用于强制 I/O、运行、CPU 故障、RS-232 和 DH+。

1747-L543处理器的程序扫描时间平均为0.9毫秒/K，典型I/O扫描时间为0.225毫秒，位执行时间为0.37μs。它还具有断电后20毫秒至3秒的程序扫描保持时间，这也取决于电源的负载。1747-L543 还采用 1 伏直流时为 5 A 的背板电流和 125 伏直流时的 24 mA 背板电流运行。它的工作冲击为 30 G，它可以承受 2.5 到 57 赫兹的 2000 G 加速度和 0.015 英寸的位移，峰到峰值，在 5 到 57 赫兹。其非冷凝相对湿度在5至95%之间，其储存温度为-40至85摄氏度，其工作温度为0至60摄氏度。

1747-L543 SLC 是 SLC 5/04 控制器，在三 （3） 个 5/04 处理器变体中具有最高的内存容量。该处理器集成了 64KB 用户存储器，其大小可处理 4096 个输入和输出。包括集成的前面板指示器，以便快速诊断模块的状态。

1747-L543 SLC 是 SLC 5/04 控制器

The Allen-Bradley 1747-L543 is an SLC 500 processor. The hardware is a processor with a maximum discrete input and output capacity of 4096, respectively. It has an integrated memory of 64K words, in particular 60K words for data and programs and 4K words for data only. It also comes with flash EPROM backup memory and 107 programming instructions. The 64-L1747 processor's 543 KB of RAM is battery powered. The 1747-L543 has a maximum of three I/O chassis with a maximum of 30 I/O module slots. The communication ports on this processor are the DH+ port and RS-232 port. 1747-L543 It also has status leds for forced I/O, run, CPU failure, RS-232, and DH+.

The 1747-L543 processor has an average program scan time of 0.9 ms /K, typical I/O scan time of 0.225 ms, and bit execution time of 0.37μs. It also has a program scan hold time of 20 milliseconds to 3 seconds after power failure, which also depends on the load of the power supply. The 1747-L543 also operates with A backplane current of 5 A at 1 volt DC and 24 mA at 125 volts DC. With an operating shock of 30 G, it can withstand 2000 G acceleration of 2.5 to 57 Hertz and a displacement of 0.015 inches, peak-to-peak, at 5 to 57 Hertz. Its non-condensing relative humidity is between 5 and 95%, its storage temperature is -40 to 85 degrees Celsius, and its operating temperature is 0 to 60 degrees Celsius.

The 1747-L543 SLC is an SLC 5/04 controller with the highest memory capacity of the three (3) 5/04 processor variants. The processor integrates 64KB of user memory, which is large enough to handle 4096 inputs and outputs. Includes integrated front panel indicators for quick diagnosis of module status.

1747-L543 SLC 是 SLC 5/04 控制器
