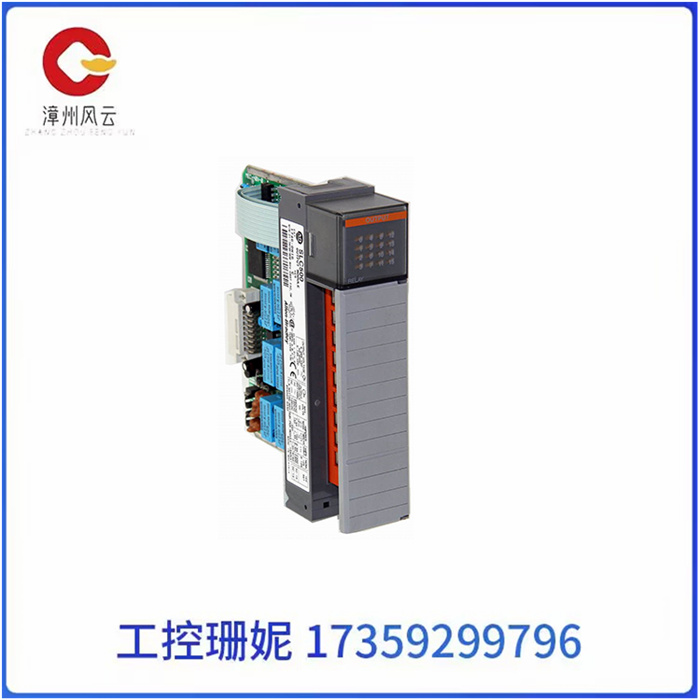

1746-OW16 Allen-Bradley 离散输出模块

1746-OW16 Allen-Bradley 离散输出模块制造者罗克韦尔自动化品牌艾伦-布拉德利部件号/目录号1746-OW16系列SLC 500模块类型数字触点输出模块工作电压5-265 伏交流电或 5-125 伏直流电输出16哈哈组数2每组积分81746-OW16 Allen-Bradley 离散输出模块Allen-Bradley 1746-OW16 是一款 Allen-Bradley 离散

立即咨询立即咨询

咨询电话 :17359299796

微信:17359299796邮箱:A3669372910@163.com

产品详情

1746-OW16 Allen-Bradley 离散输出模块

制造者罗克韦尔自动化
品牌艾伦-布拉德利
部件号/目录号1746-OW16
系列SLC 500
模块类型数字触点输出模块
工作电压5-265 伏交流电或 5-125 伏直流电
输出16
哈哈组数2
每组积分8


1746-OW16 Allen-Bradley 离散输出模块

Allen-Bradley 1746-OW16 是一款 Allen-Bradley 离散输出模块,与 SLC 500 产品系列一起使用。该模块是继电器输出模块或有时称为干接点输出模块。


该模块非常适合用于存在多种电压类别的应用。电压类别,例如直流电压,范围为 5 -125 VDC 和 5 - 265 VA。它有两 (2) 个输入组,每组一 (1) 个公共终端。这些分组允许一组使用直流电压工作,而另一组使用交流电压工作。它也可以与直流电压或两个交流电压输入一起使用。使用该模块无需实现插拔电路。


在 120VAC 下运行时,断路电流额定值为 15 A,而断断额定值为 1.5 A。对于 240VAC,额定电流为 7.5 A,开断安培额定值为 0.75 A。交流操作的连续电流为 2.5 A。在 125 VDC 下运行时,接通触点额定值为 0.22 A,断开触点额定值为 1.2 A。在 125 VDC 时,连续电流为 1.0 A,在 2VDC 工作时为 0.24 A。建议为每个通道在外部安装浪涌抑制装置。使用这些设备可以防止损坏模块,从而延长模块的使用寿命。


Allen-Bradley 1746-OW16是Allen-Bradley的SLC 500离散输出模块。它用于该模块具有十六 (16) 个继电器触点输出,两 (2) 组每个公共点有八 (8) 个点。


安装此模块需要不接触化学品,因为化学品可能会降低密封材料的密封性能。定期检查模块是否有化学损坏。


1746-OW16 有两种工作电压:5 - 125V DC 和 5 - 265V DC。在最大阻性负载下,它在ON和OFF状态下均具有10 ms的信号延迟。与其他继电器输出模块相比,1746-OW16 具有更高的背板电流消耗。它在 0V DC 时具有 17.5A 背板电流消耗,在 0V DC 时具有 18.24A 背板电流消耗。它在 10V DC 时的最小负载电流为 5 mA。1746-OW16 的最大散热为 5.7 W。每个模块的最大连续电流也为 16 A。请注意每个模块的连续电流,以确保每个模块的连续电流受到限制,使模块功率不超过1440VA。


1746-OW16 易于使用。因此,您可以使用计算机设置模块。它还具有一个可拆卸的接线端子,可让您轻松地将任何电缆或跳线连接到模块。请使用滑动闩锁、螺钉、螺纹连接器或本产品随附的其他连接方式固定模块的外部连接。


1746-OW16 Allen-Bradley 离散输出模块

The Allen-Bradley 1746-OW16 is an Allen-Bradley discrete output module for use with the SLC 500 product family. This module is a relay output module or sometimes called a dry contact output module.


The module is ideal for applications where multiple voltage classes exist. Voltage categories, such as DC voltage, range from 5-125 VDC and 5-265 VA. It has two (2) input groups, each with one (1) common terminal. These groupings allow one group to work with DC voltage, while the other group works with AC voltage. It can also be used with DC voltage or two AC voltage inputs. There is no need to implement plug and unplug circuit in this module.


When operating at 120VAC, the breaking current is rated at 15 A, while the breaking current is rated at 1.5 A. For 240VAC, the current rating is 7.5A and the breaking ampere rating is 0.75A. The continuous current for AC operation is 2.5 A. When operating at 125 VDC, the on-contact rating is 0.22A and the off-contact rating is 1.2A. The continuous current is 1.0 A at 125 VDC and 0.24 A at 2VDC. It is recommended to install a surge suppression device externally for each channel. Using these devices can prevent damage to the module, thus extending the service life of the module.


Allen-Bradley 1746-OW16 is an Allen-Bradley SLC 500 discrete output module. It is used for the module to have sixteen (16) relay contact outputs, two (2) groups of eight (8) points for each common point.


Installation of this module requires no contact with chemicals, as chemicals may reduce the sealing properties of the sealing material. Check the module regularly for chemical damage.


The 1746-OW16 has two operating voltages: 5-125V DC and 5-265V DC. Under maximum resistive loads, it has a signal delay of 10 ms in both ON and OFF states. The 1746-OW16 has a higher backplane current consumption compared to other relay output modules. It has 17.5A backplane current consumption at 0V DC and 18.24A backplane current consumption at 0V DC. It has a minimum load current of 5 mA at 10V DC. The 1746-OW16 has a maximum heat dissipation of 5.7W. The maximum continuous current per module is also 16 A. Note the continuous current of each module to ensure that the continuous current of each module is limited so that the module power does not exceed 1440VA.


1746-OW16 Easy to use. Therefore, you can use the computer setup module. It also features a detachable terminal that allows you to easily connect any cable or jumper to the module. Secure the external connections of the module using sliding latches, screws, threaded connectors, or other connections included with this product.


1746-OW16 Allen-Bradley 离散输出模块
