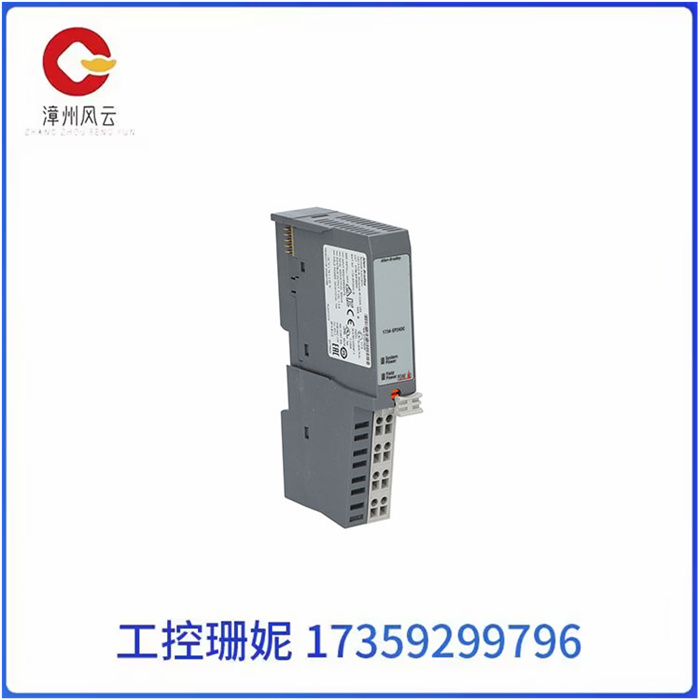

Allen-Bradley 1734-EP24DC 电源扩展单元将 24V DC 电场传递到右侧的 I/O 模块。该电源扩展单元可将背板总线电源扩展到电源右侧的 17 个 I/O 模块。该电源为现场驱动设备创建新的现场电压分区段。1734-EP24DC 将现场电源与设备左侧的 I/O 模块分开。

此电源为深灰色，扩展电源的深灰色便于目视检查和识别。您可以使用带有 POINT I/O 适配器的电源扩展单元来完全组装系统。1734-EP24DC 扩展单元与 1734 POINT I/O 适配器兼容。

1734-EP24DC 的电源电压范围为 10-28.8V DC。该电源的最大电源电流为10A。该电源的工作温度为 -13-140 度。华氏度和非工作温度为-40-185度。华氏度在 5-95% 的相对湿度下无冷凝。该电源的工作振动在 5-10 Hz 时为 500g。1734-EP24DC的工作冲击为30g，非工作冲击为50g。它具有 24 伏直流场功率和 6 安培的浪涌电流，持续 10 毫秒，具有反极性过压保护。此扩展电源具有 10 A 电源电流。

1734-EP24DC 是一个艾伦-布拉德利模块，用作扩展电源。此模块设计用于 1734 POINT I/O 系统。它主要用于扩展POINTBus电流并为安装在电源右侧的模块供电。

1734-EP24DC 支持安装多达四 （4） 至十七 （17） 个 POINT I/O 模块，具体取决于已安装模块的额定电流。它的额定输入电压为 24VDC，标称，可接受的电压范围为 10-28.8 VDC。该扩展电源能够承受 6 安培的浪涌电流 10 ms。 1734-EP24DC 具有内置状态指示器，例如现场电源状态指示器和 5V 系统电源指示器。

它可以按照 POINT I/O 系统的方向水平和垂直安装。水平安装时，POINTBus 输出电流为 1 A @ 10-19.2VDC 输入和 1.3 A @ 19.2-28.8VDC 输入。垂直安装时，POINTBus 输出电流为 1 A @ 10-28.8V 输入。该模块具有集成的输入过压保护，特别是反极性保护。

1734-EP24DC 兼容任何 1734 POINT I/O 适配器的安装。当扩展电源中断时，当输入电源电压在10V最大负载下压降10 ms时，输出电压保持在规格范围内。

1734-EP24DC 的最大功耗为 9.8 W @ 28.8V DC，最大功耗为 3.0 W @ 28.8V DC，热耗散为 10.0 BTU/hr @ 28.8V DC。

1734-EP24DC  扩展电源模块 1734 POINT I/O 模块

The Allen-Bradley 1734-EP24DC Power expansion unit delivers the 24V DC electric field to the I/O module on the right. The power expansion unit extends the backplane bus power supply to 17 I/O modules on the right side of the power supply. This power supply creates a new field voltage partition for the field drive device. The 1734-EP24DC separates the field power supply from the I/O module on the left side of the device.

This power supply is dark gray, and the dark gray of the extended power supply is easy to visual inspection and identification. You can use a power expansion unit with a POINT I/O adapter to fully assemble the system. The 1734-EP24DC expansion unit is compatible with the 1734 POINT I/O adapter.

The power supply voltage range of the 1734-EP24DC is 10-28.8V DC. The maximum supply current of this power supply is 10A. The operating temperature of the power supply is -13-140 degrees. Fahrenheit and non-operating temperatures are -40 to 185 degrees. No condensation at 5-95% relative humidity. The operating vibration of the power supply is 500g at 5-10 Hz. The 1734-EP24DC has a working impact of 30g and a non-working impact of 50g. It has 24 volts DC field power and 6 amps of surge current for 10 milliseconds with reverse polarity overvoltage protection. This extended power supply has 10 A supply current.

The 1734-EP24DC is an Allen Bradley module used as an extended power supply. This module is designed for use with 1734 POINT I/O systems. It is mainly used to extend the POINTBus current and power the module installed on the right side of the power supply.

The 1734-EP24DC supports the installation of up to four (4) to seventeen (17) POINT I/O modules, depending on the current rating of the installed module. It has a rated input voltage of 24VDC and a nominal, acceptable voltage range of 10-28.8VDC. The extended power supply is capable of withstanding a 6 amp surge current of 10 ms. The 1734-EP24DC has built-in status indicators, such as field power status indicators and 5V system power indicators.

It can be installed horizontally and vertically in the direction of the POINT I/O system. When installed horizontally, the POINTBus output current is 1 A@10-19.2VDC input and 1.3A@19.2-28.8VDC input. When installed vertically, the POINTBus output current is 1 A@10-28.8V input. The module has integrated input overvoltage protection, especially reverse polarity protection.

The 1734-EP24DC is compatible with any 1734 POINT I/O adapter installation. When the extended power supply is interrupted, the output voltage remains within the specification range when the input power supply voltage drops 10 ms at the 10V maximum load.

The 1734-EP24DC has a maximum power consumption of 9.8W@28.8V DC, a maximum power consumption of 3.0W@28.8V DC, and a heat dissipation of 10.0 BTU/ hr@28.8V DC.
