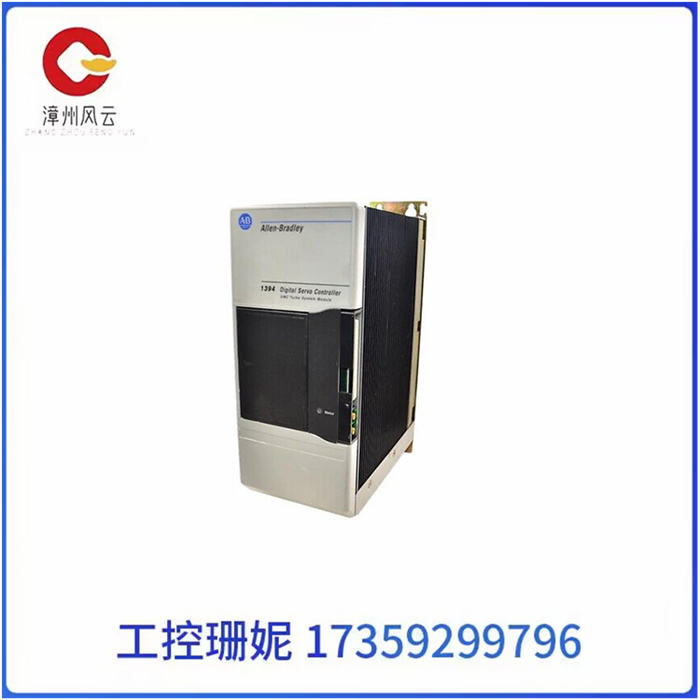

1394-SJT05-C 由 Allen-Bradley 制造，用作 GMC 标准系统模块，与多轴运动控制系统的 1394 产品公告一起使用。该组件具有嵌入式 RS232 / 422 和 DH485 功能以及 AxisLink 和远程 I/O 通信端口。

由于它配备了远程I / O通信端口，该模块能够在GMC Turbo和标准系统之间以及与Allen-Bradley的SLC 500和PLC 5控制器平台之间进行数据交换。此外，AxisLink 通信还可以专门用于与网络中的其他系统模块直接通信。它也可用于设置网络中的主轴。

连接系统模块时，请使用MTW型铜线，这是一种75摄氏度的机床线。使用 12 AWG 电线尺寸（3.3 平方毫米）。最大限度地减少噪声和接地回路，分离反馈并确保系统正确接地，以确保系统平稳运行。系统模块设计为逆变器载波频率为5000 Hz，输出逆变器开关输出载波频率为10,000 Hz。这可能会成为额外的噪音源，可能会影响安装在模块附近的敏感设备。

在机柜内布线电缆时，将低压、通信、控制 I/O 和电机反馈电缆与电源线和 460 / 380 VAC 电源分开。每个国家应有不同的入境点。以 90 度交叉高压线和低压线。请勿在同一电缆管理托盘中运行低压和高压电线。

1394-SJT10-C-RL A-B伺服控制器  船舶运输行业使用

The 1394-SJT05-C is manufactured by Allen-Bradley and is used as a GMC standard system module in conjunction with the 1394 product Bulletin for multi-axis motion control systems. The component has embedded RS232/422 and DH485 capabilities as well as AxisLink and remote I/O communication ports.

As it is equipped with a remote I/O communication port, the module is able to exchange data between GMC Turbo and standard systems, as well as with Allen-Bradley's SLC 500 and PLC 5 controller platforms. In addition, AxisLink communication can be specifically used to communicate directly with other system modules in the network. It can also be used to set spindles in a network.

When connecting system modules, use MTW type copper wire, which is a 75 degree Celsius machine tool wire. Use 12 AWG wire size (3.3 sq. mm). Minimize noise and ground loops, separate feedback and ensure the system is properly grounded to ensure smooth system operation. The system module is designed for the inverter carrier frequency of 5000 Hz and the output inverter switch output carrier frequency of 10,000 Hz. This can become an additional source of noise, potentially affecting sensitive equipment installed near the module.

When routing cables in the cabinet, separate the low-voltage, communication, control I/O, and motor feedback cables from the power cables and 460/380 VAC power supply. Each country should have different entry points. Cross high and low voltage lines at 90 degrees. Do not run low and high voltage wires in the same cable management tray.
