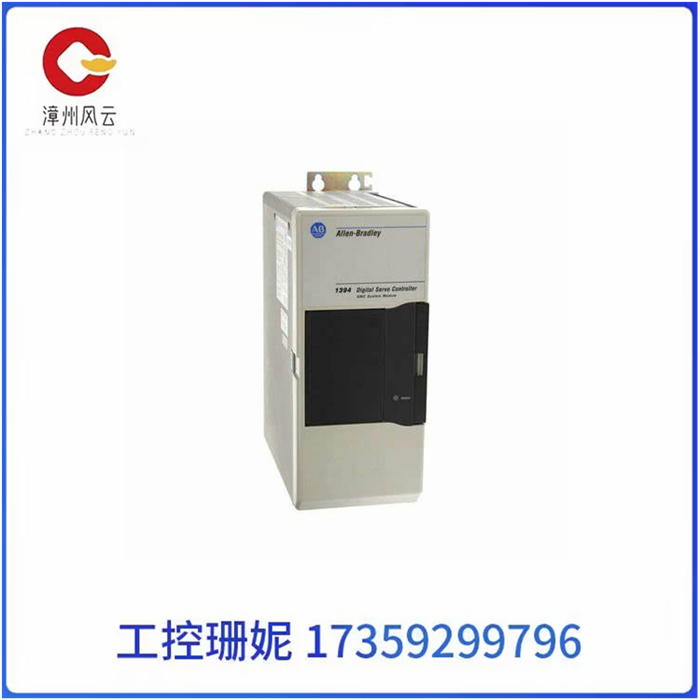

1394-SJT05-C-RL A-B 自动化 标准 GMC 系统模块

1394-SJT05-C-RL A-B 自动化 标准 GMC 系统模块

1394-SJT05-C-RL 是标准 GMC 系统模块，具有集成的远程 I/O （RIO） 和 AxisLink 通信端口。

远程 I/O 和 AxisLink 通信端口位于模块的左上角，安装了诊断 LED。远程 I/O 允许任何 1394 系统模块与 Allen-Bradley 制造的位置控制器进行通信。系统模块上安装了两 （2） 个标签为 CHAN A/P3 和 CHAN B/P4 的类似连接器。为了建立物理远程I/O （RIO）连接，Allen-Bradley建议使用AB1770 CD Belden 9463电线或同等电缆。该电缆也是其他艾伦-布拉德利产品RIO通信的推荐电缆。将远程 I/O 电缆端接到两 （2） 个 RIO 通道中的任何一个时，蓝线必须端接到 1 号端子，屏蔽线端接到端子 2，透明线端接到端子 3。RIO 网络需要安装终端电阻器。该终端电阻安装在RIO通信网络的第一个和最后一个节点上。

安讯士链接支持通过网络传输数据。该协议支持八 （8） 个节点，主要用于同步运动应用程序。节点可以由八 （8） 个 GMC 系统模块组成，也可以由 ALEC 和 GMC 系统模块的任意组合组成。通过使用这种通信协议，可以使用1394系统模块作为主轴，可用于电子齿轮，凸轮和其他系统。轴线段的最大长度为 25 米或 82 英尺。

Allen-Bradley 1394-SJT05-C-RL 伺服控制器模块是一个集成运动控制系统，系统中最多具有 4 个轴和 4 个辅助编码器输入。它通过智能电源、EMI 滤波和端接得到增强。1394-SJT05-C-RL 在 360-480V AC 的输入电压和 6.5A 的输入电流下运行。它的设计输出峰值电流为 975A，标称输出电压为 530-680V 直流。1394-SJT05-C-RL的额定功率为4-5KW，最大可达28KW。1394-SJT05-C-RL伺服控制器模块是运行效率为99%的系统模块。它还具有 7.36A 的输出电流，峰值电流为 156A。1394-SJT05-C-RL 伺服控制器模块的环境温度范围为 0-50 度。摄氏（32-122°F），相对湿度为5-95%，非冷凝作为其环境规格。它还具有 15G 的最大冲击等级，最高可振动 1G。1394-SJT05-C-RL 配备 1000 微H 电感，电容为 2200 微华。每百分比输出功率的耗散功率在 （66%） 时为 20W，在 （70%） 时为 40W，在 （73%） 时为 60W，在 （77%） 时为 80W，在 （80%） 时为 100W，重量为 11 kg （24.25 lb），Allen-Bradley 98-SJT1394-C-RL 伺服控制器支持 05% 的效率，是一款具有 GMC- IMC S 类、AxisLink 和远程 I/O GMC 选项的系统。

1394-SJT05-C-RL A-B 自动化 标准 GMC 系统模块

The 1394-SJT05-C-RL is a standard GMC system module with integrated Remote I/O (RIO) and AxisLink communication ports.

The remote I/O and AxisLink communication ports are located in the upper left corner of the module with a diagnostic LED installed. Remote I/O allows any 1394 system module to communicate with the Allen-Bradley manufactured position controller. Two (2) similar connectors labeled CHAN A/P3 and CHAN B/P4 are installed on the system module. To establish a physical remote I/O (RIO) connection, Allen-Bradley recommends AB1770 CD Belden 9463 wire or equivalent cable. The cable is also recommended for other Allen-Bradley products, RIO Communications. When connecting the remote I/O cable end to either of the two (2) RIO channels, the blue wire must be connected to terminal 1, the shielded wire to terminal 2, and the transparent wire to terminal 3. The RIO network requires installation of terminal resistors. This terminal resistor is installed on the first and last node of the RIO communication network.

Axis Link supports data transfer over the network. The protocol supports eight (8) nodes and is primarily used for synchronous motion applications. A node may consist of eight (8) GMC system modules or any combination of ALEC and GMC system modules. By using this communication protocol, it is possible to use the 1394 system module as a spindle, which can be used for electronic gears, cams and other systems. The maximum length of the axis section is 25 meters or 82 feet.

The Allen-Bradley 1394-SJT05-C-RL servo controller module is an integrated motion control system with up to 4 axes and 4 auxiliary encoder inputs. It is enhanced by smart power, EMI filtering and terminating. The 1394-SJT05-C-RL operates at an input voltage of 360-480V AC and an input current of 6.5A. It has a designed peak output current of 975A and a nominal output voltage of 530-680V DC. The 1394-SJT05-C-RL has a power rating of 4-5KW and a maximum of 28KW. 1394-SJT05-C-RL servo controller module is a system module with an operating efficiency of 99%. It also has an output current of 7.36A and a peak current of 156A. The ambient temperature range of the 1394-SJT05-C-RL servo controller module is 0-50 degrees. Celsius (32-122°F), relative humidity of 5-95%, non-condensing as its environmental specification. It also has a maximum impact rating of 15G and can vibrate up to 1G. The 1394-SJT05-C-RL is equipped with 1000 microH inductors and a capacitance of 2200 microwatts. The dissipated power per percentage of output power is 20W at (66%), 40W at (70%), 60W at (73%), 80W at (77%), 100W at (80%), and the weight is 11 kg (24.25 lb). The Allen-Bradley 98-SJT1394-C-RL servo controller supports 05% efficiency and is a system with GMC-IMC Class S, AxisLink and Remote I/O GMC options.

1394-SJT05-C-RL A-B 自动化 标准 GMC 系统模块
