1336-SN-SP6A  AB可调频率驱动器

1336-SN-SP6A  AB可调频率驱动器

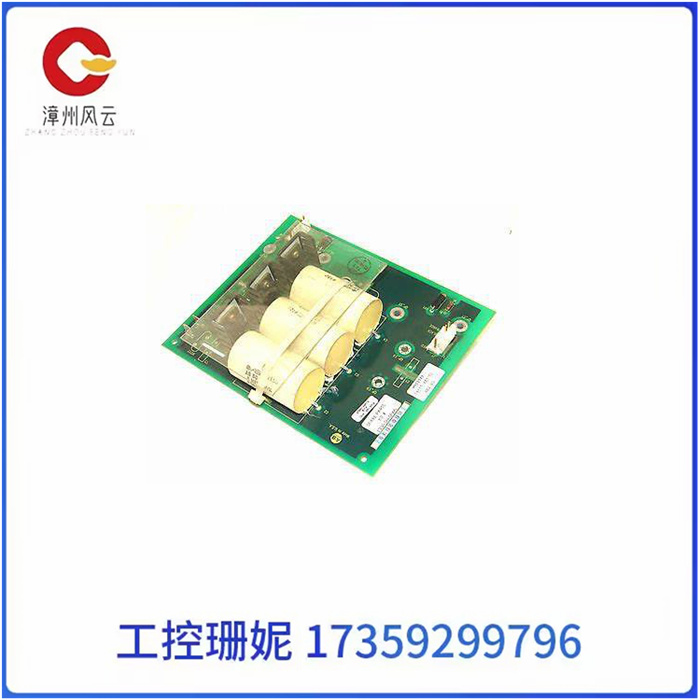

艾伦-布拉德利 1336-SN-SP6A 逆变器缓冲板组装套件是 1336 系列艾伦-布拉德利交流变频器的替代缓冲板。1336-SN-SP6A 缓冲板是一个独立的设备，不共享公共总线，与冲击、力、增强和增强系列 1336 驱动器兼容。通常，1336-SN-SP6A PCB逆变器缓冲板和所有类似的板都有助于限制电路中的开关电压和电压瞬态电平的任何上升。1336-SN-SP6A 缓冲板组装套件包括 3 个逆变器缓冲板和 15 个随附的紧固螺钉。

它的设计与 Allen-Bradley 1336 Plus、Plus II、力和冲击驱动器兼容，具有 230 伏交流输入电压额定值和 40 至 50 马力输出功率额定值。它还兼容 460 伏交流额定 D 型机架驱动器，输出功率额定值为 60 至 100 马力。1336-SN-SP6A 板可用作额定功率在 575 马力到 1336 马力之间的 75 伏交流 D 框架 100 Plus、Plus II、力和冲击系列驱动器的替代逆变器缓冲板。

1336-SN-SP6A 逆变器缓冲板不向后兼容任何以前的逆变器缓冲板版本，它只能作为类似规格的缓冲板的替代品。更换旧的缓冲板并安装新的缓冲板非常容易。要安装 1336-SN-SP6A PCB 逆变器缓冲板，请先卸下存储模块（如果有），然后关闭驱动器的电源。卸下固定旧板的螺钉，拆下旧板，然后更换新板。

1336-SN-SP6A  AB可调频率驱动器

The Allen-Bradley 1336-SN-SP6A Inverter buffer Board Assembly kit is a replacement buffer board for the 1336 Series Allen-Bradley AC inverter. The 1336-SN-SP6A buffer board is a standalone device that does not share a common bus and is compatible with shock, force, enhance and Enhance series 1336 drives. In general, the 1336-SN-SP6A PCB inverter buffer board and all similar boards help limit any rise in switching voltage and voltage transient levels in the circuit. The 1336-SN-SP6A buffer board Assembly kit includes 3 inverter buffer boards and 15 included fastening screws.

It is designed to be compatible with Allen-Bradley 1336 Plus, Plus II, force and shock drivers, and has a 230 volt AC input voltage rating and a 40 to 50 horsepower output power rating. It is also compatible with a 460-volt AC rated D-rack drive with an output power rating of 60 to 100 HP. The 1336-SN-SP6A board can be used as an alternative inverter buffer board for 75 volt AC D-frame 100 Plus, Plus II, Force and Shock series drives rated between 575 and 1336 HP.

The 1336-SN-SP6A inverter buffer board is not backward-compatible with any previous inverter buffer board versions, it can only be used as a replacement for a buffer board of similar specifications. It is very easy to replace the old buffer board and install a new one. To install the 1336-SN-SP6A PCB inverter buffer board, first remove the storage module (if any) and then turn off the power to the drive. Remove the screws holding the old board, remove the old board, and replace the new board.

1336-SN-SP6A  AB可调频率驱动器
