1336-MOD-KB010 交流变颍器设备

1336-MOD-KB010 交流变颍器设备

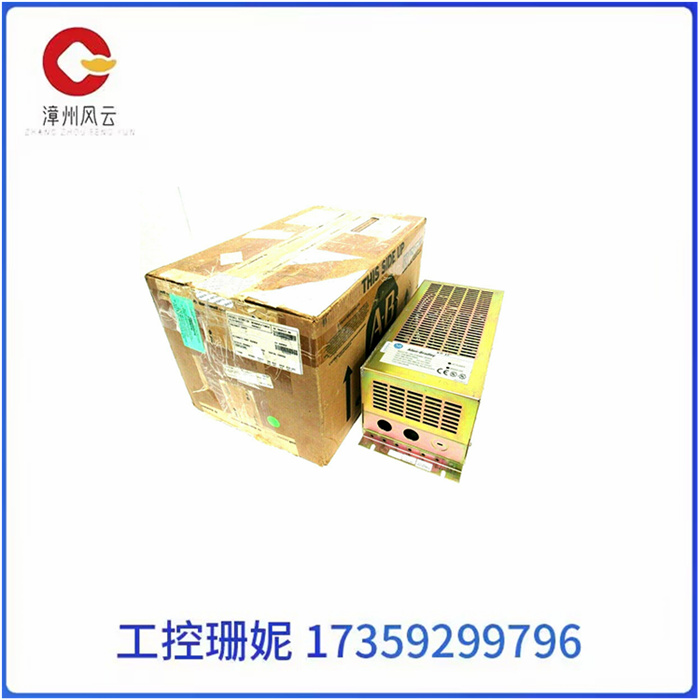

1336-MOD-KB010设备是Allen Bradley的交流驱动动态制动组件。380-MOD-KB460 交流变频器的额定电压为 1336 至 010 伏交流电，可确保更高的性能水平。1336-MOD-KB010 重型动态制动系统提供独立的 NEMA 1 型封闭组件，该组件已连接到 1336 交流驱动单元。1336-MOD-KB010装置提供的高动态制动系统能够将给定驱动器的整体制动扭矩能力提高多达100%。

1336-MOD-KB010 交流驱动制动单元的尺寸规格为 28 x 24 x 20 英寸，重量约为 25 磅。给定的 1336-MOD-KB010 单元（及其兄弟 1336-MOD-KB050 单元）的最有效组合以并行方式运行，以确保等效动态制动阻力约为 8.76 欧姆。典型的动态制动模块驱动器由斩波器模块（由斩波晶体管和相关控制元件组成）和动态制动电阻组成。动态制动模块设计为在额定电流往往不足以满足给定的行业特定应用时并联运行。一个特定的动态制动模块被指定为主动态制动模块的角色，而所有其他模块被视为从动模块。

1336-MOD-KB010 动态制动单元只能安装在垂直位置。每个动态制动外壳必须安装在任何其他给定外壳的外部。然后必须将其暴露在不受限制的空气循环中，以允许热量的适当散发。制动外壳和所有其他外壳（包括 304-MOD-KB8 交流变频器）之间必须有 1336.010 毫米的距离。

1336-MOD-KB010 交流变颍器设备

The 1336-MOD-KB010 device is Allen Bradley's AC drive dynamic brake assembly. The 380-MOD-KB460 AC converters are rated from 1336 to 010 volts AC, ensuring a higher level of performance. The 1336-MoD-KB010 heavy-duty dynamic braking system offers a separate NEMA Type 1 closed assembly that is connected to the 1336 AC drive unit. The high dynamic braking system provided by the 1336-MOD-KB010 unit is capable of increasing the overall braking torque capacity of a given drive by up to 100%.

The 1336-MOD-KB010 AC drive brake unit has a size specification of 28 x 24 x 20 inches and weighs approximately 25 pounds. The most efficient combination of a given 1336-MOD-KB010 unit (and its sibling 1336-MOD-KB050 unit) runs in parallel to ensure an equivalent dynamic braking resistance of about 8.76 ohms. A typical dynamic brake module driver consists of a chopper module (consisting of a chopper transistor and associated control elements) and a dynamic brake resistor. Dynamic brake modules are designed to operate in parallel when the rated current is often insufficient for a given industry-specific application. A particular dynamic brake module is assigned the role of master dynamic brake module, while all other modules are treated as slave modules.

1336-MOD-KB010 Dynamic brake unit can only be installed in a vertical position. Each dynamic brake housing must be mounted on the outside of any other given housing. It must then be exposed to unrestricted air circulation to allow proper dissipation of heat. There must be a distance of 1336.010 mm between the brake housing and all other housing (including 304-MOD-KB8 AC converters).
