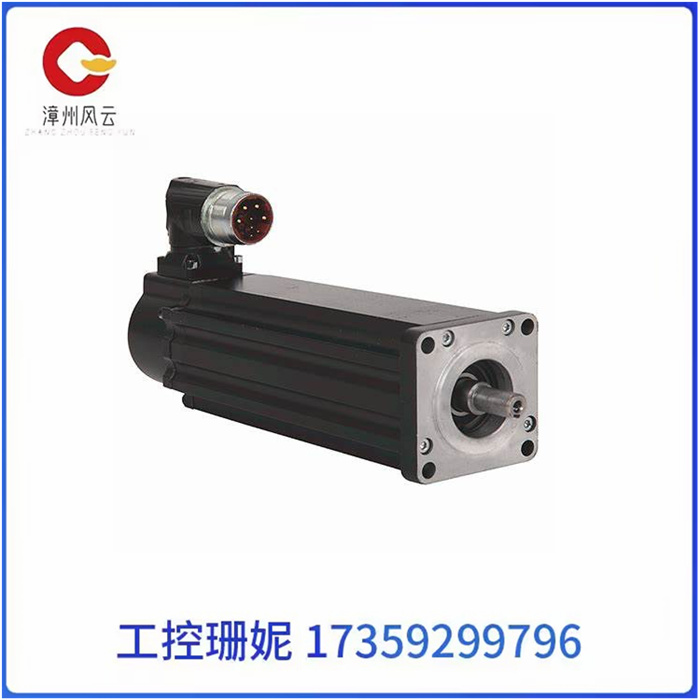

VPL-B1304E-PJ14AA AB罗克韦尔 伺服电机

VPL-B1304E-PJ14AA AB罗克韦尔 伺服电机

VPL-B1304C-P14AA是Allen-Bradleyf氐惯性伺服电机，最大电压为400伏。该模块的框架尺寸为130毫米，电机额定转速为每分钟2500转。低惯性伺服电机配有4个磁体组，它具有18位绝对多圈数字编码器或Hiperface DSL协议。该模块具有轴健轴类型，带有单速TEC DIN连接器和直角325度可旋转连接器。

VPL-B1304C-P14AA具有带自由安装孔或IEC公制安装法兰的F型安装方法。该电机还具有标准的工厂选项，并配备了24伏DC制动。

VPL-B1304C-P144A环境等级至少要求IP50外壳，不带轴封，也可通过可选轴封和使用环境密封电缆连接器安装到IP66外壳中。该模块还具有200伏和40O伏级绕组，带有高能稀土磁体和轴端螺纹孔。

电机经过特殊设计，符合Kinetx 5500驱动器的额定值，以优化系统尺寸。该模块还采用了单电缆技术，具有高扭矩尺寸比和低转子惯性。VPL-B1304C-P/14AA是不同应用的理想选择，包括包装应用、加工应用、材料处理应用、电子装配应用、汽车工业应用和金属成型应用。Kinetix低惯性电机也可用于高性能编码器。

VPL-B1304E-PJ14AA AB罗克韦尔 伺服电机

The VPL-B1304C-P14AA is an Allen-Bradleyf inertia servo motor with a maximum voltage of 400 volts. The frame size of the module is 130 mm and the motor speed is rated at 2500 RPM. The low inertia servo motor is equipped with 4 magnet groups and it has an 18-bit absolute multi-turn digital encoder or Hiperface DSL protocol. The module is available in the shaft shaft type with a single speed TEC DIN connector and a right Angle 325 degree rotatable connector.

The VPL-B1304C-P14AA has an F-type mounting method with free mounting holes or IEC metric mounting flanges. The motor also comes with a standard factory option and is equipped with 24-volt DC braking.

The VPL-B1304C-P144A environment class requires at least an IP50 housing without shaft seal, or can be installed into an IP66 housing with an optional shaft seal and using an environmentally sealed cable connector. The module also has 200 and 40O volt class windings with high energy rare earth magnets and threaded holes at the shaft end.

The motor has been specially designed to conform to the rating of the Kinetx 5500 drive to optimize system size. The module also uses single-cable technology with a high torque dimension ratio and low rotor inertia. The VPL-B1304C-P/14AA is ideal for different applications, including packaging applications, processing applications, material handling applications, electronic assembly applications, automotive industry applications and metal forming applications. Kinetix low inertia motors are also available for high performance encoders.

VPL-B1304E-PJ14AA AB罗克韦尔 伺服电机
