贵阳 MPL-B540D-MJ24AA MPL系列伺服电机

贵阳 MPL-B540D-MJ24AA MPL系列伺服电机

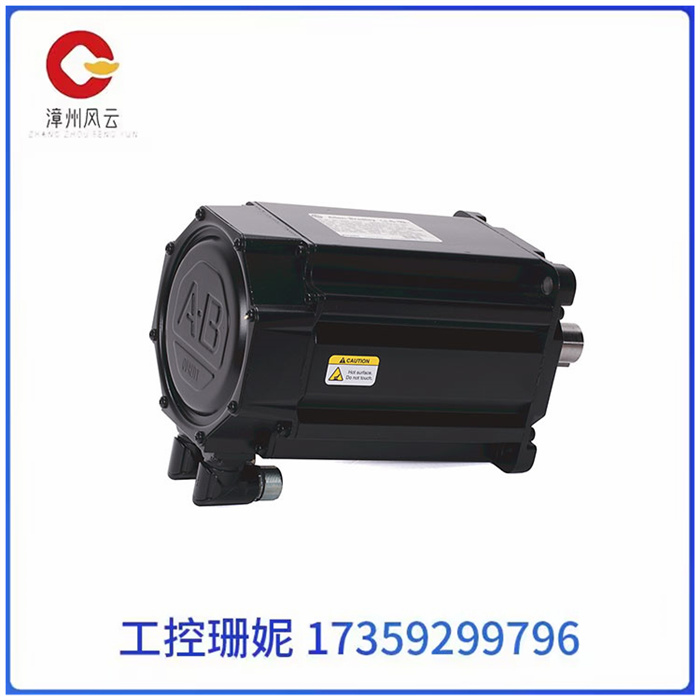

艾伦-布拉德利MPL-B540D-M24AAMPL系列伺服电机是一种无刷伺服电机。它与Allen-Bradley Kinetix伺服驱动器结合使用，用于包装、加工和材料处理等工业应用。该同服电机的环境规格包括O至40摄氏度的工作温度范围、-30至70摄氏度的储存温度范围以及5至95%的非冷凝相对湿度范围，以便操作和储存。

MPL-B540D-M24AA伺服电机上的绕组是40O伏交流电压等级的一部分。最大和额定电机速度均为200O RPM。MPL-B540D-MJ24AA伺服电机输出功率为3.4千瓦。持续失速电流为10.5安培，峰值失速电流为23安培。此外，持续失速扭矩为19.4牛米，峰值失速扭矩为41牛·米

Allen-Bradley MPL-B540D-mj 24 aa MPL系列无刷伺服电机的框架尺寸为165毫米，磁体堆叠长度为101.6毫米或4英寸。

MPL-B54OD-MJ24A4伺服电机从支持Hiperface协议的集成1024 sin/cos多圈编码器向连接的伺服驱动器提供反馈。MPL-B54OD-MI24AA伺服电机上的轴有一个轴键，但没有轴封。电机上的卡口连接器面向电机轴。电机上的另一个可用特征是止动制动器，该止动制动器被设计用于使用来自独立电源的24伏DC电压进行操作。MPL-B540D-M24AA同服电机只能在安装后通电。电机和相关机械的正确安装需要培训经验，只能由受过培训的人员进行。

贵阳 MPL-B540D-MJ24AA MPL系列伺服电机

The Allen Bradley MPL-B540D-M24AAMPL series servo motor is a brushless servo motor. It is used in conjunction with Allen-Bradley Kinetix servo drives for industrial applications such as packaging, processing and material handling. The environmental specifications of the co-service motor include an operating temperature range of O to 40 degrees Celsius, a storage temperature range of -30 to 70 degrees Celsius, and a non-condensing relative humidity range of 5 to 95% for operation and storage.

The winding on the MPL-B540D-M24AA servo motor is part of the 40O volt AC voltage class. The maximum and rated motor speed is 200O RPM. The output power of the MPL-B540D-MJ24AA servo motor is 3.4 kW. The continuous stall current is 10.5 amps and the peak stall current is 23 amps. In addition, the sustained stall torque is 19.4 nm and the peak stall torque is 41 nm

Allen-Bradley MPL-B540D-MJ 24 aa MPL series brushless servo motors have a frame size of 165 mm and a magnet stack length of 101.6 mm or 4 inches.

The MPL-B54OD-MJ24A4 servo motor provides feedback to the connected servo drive from an integrated 1024 sin/cos multi-turn encoder that supports the Hiperface protocol. The shaft on the MPL-B54OD-MI24AA servo motor has a shaft key, but no shaft seal. The bayonet connector on the motor faces the motor shaft. Another feature available on the motor is the stop brake, which is designed to operate using 24 volts DC voltage from an independent power supply. The MPL-B540D-M24AA co-serving motor can only be powered on after installation. Proper installation of motors and related machinery requires training experience and can only be carried out by trained personnel.

贵阳 MPL-B540D-MJ24AA MPL系列伺服电机
