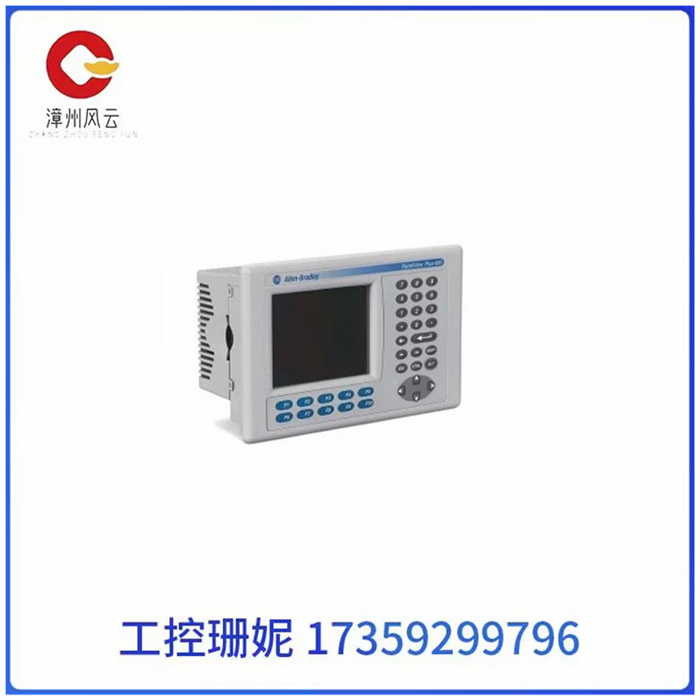

2711P-K6C2O0A终端是Allen-Bradley的PanelView Plus 6图形操作员界面终端。它是一个600系列接口，显示屏尺寸为5.5英寸。2711P-K6C20A终端上的操作员输入是一个带有不锈钢膜的键盘，它有数字、导航和功能键，在340 G的力下额定按压100万次。显示器尺寸为5.5英寸，显示器类型为彩色有源矩阵TFT显示器。显示面积为4.5x 3.4英寸。

显示器的分辨率为320x240，18位彩色图形。显示器的额定亮度为440尼特。显示屏背光是一个不可更换的白色LED，在25摄氏度的温度下，额定工作时间至少为25，000小时。系统实时时钟的电池在25摄氏度下至少有4年的寿命。电地可现场更换。

2711P-K6C20A端子配有256MB RAN和512MB非易失性存储器。SD卡和USB闪存驱动器可用于外部存储。2711P-K6C20A终端上的操作系统是Windows CE6.0操作系统。

2711P-K6C20A终端上的通信接口包括1个10/100 Mbps以太网端口、1个RS-232和1个USB主机端口和1个USB设备端口。2711P-K6C20A端子设计用于50至60赫兹的120或240伏交流输入电压。典型功耗为20 VA，最大功耗为35VA。2711 p-kbc 20 a终端重1.31磅，尺寸约为167x 266 x98毫米，安装时需要142x 241毫米的切口。

罗克韦尔AllenBradley2711P-K6C20A8分立输出模块适用于各种感性负载

The 2711P-K6C2O0A terminal is Allen-Bradley's PanelView Plus 6 graphical operator interface terminal. It is a 600 Series port with a 5.5-inch display. The operator input on the 2711P-K6C20A terminal is a keypad with a stainless steel film, which has numeric, navigation and function keys and is rated for 1 million presses at 340 G of force. The display size is 5.5 inches and the display type is a color active matrix TFT display. The display area is 4.5x 3.4 inches.

The display has a resolution of 320x240 and 18-bit color graphics. The rated brightness of the display is 440 nits. The display backlight is a non-replaceable white LED that is rated for at least 25,000 hours of operation at a temperature of 25 degrees Celsius. The battery of the system's real-time clock has a life of at least four years at 25 degrees Celsius. Electrical ground can be replaced on site.

The 2711P-K6C20A terminal is equipped with 256MB RAN and 512MB non-volatile memory. SD cards and USB flash drives are available for external storage. The operating system on the 2711P-K6C20A terminal is Windows CE6.0.

The communication interface on the 2711P-K6C20A terminal consists of one 10/100 Mbps Ethernet port, one RS-232 and one USB host port and one USB device port. The 2711P-K6C20A terminal is designed for 120 or 240 volts AC input voltages from 50 to 60 Hz. Typical power consumption is 20 VA and maximum power consumption is 35VA. The 2711 p-kbc 20a terminal weighs 1.31 pounds, measures approximately 167x 266 x98 mm and requires a 142x 241 mm incision for installation.
