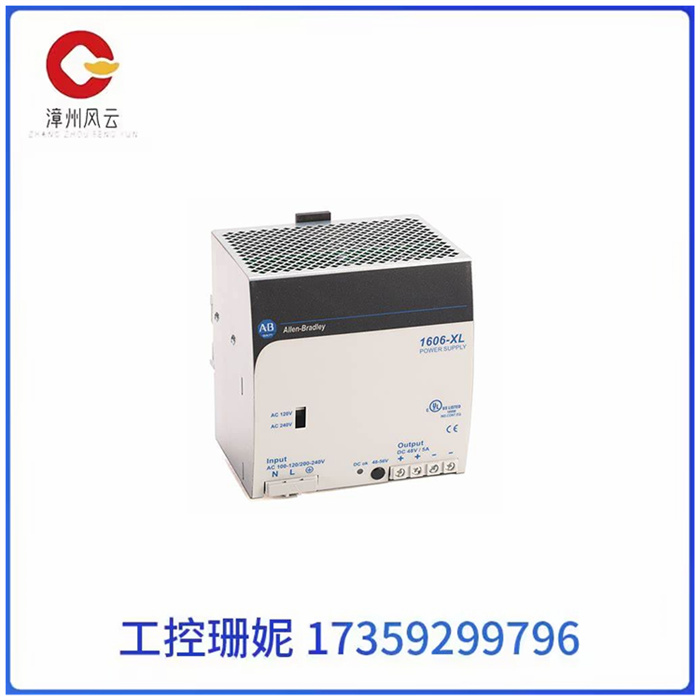

Allen-BradleyRockwell Automation 1606-XL 480 e电源模块是作为Allen-Bradley公告1606-XL开关模式电源产品线的一部分制造的。它的输入电压为230伏，频率在47到63赫兹之间。

该电源具有184至264伏交流电或270至370伏DC的连续工作电压容差范围，以及在24伏和20安培电流下170至280伏交流电或250至400伏DC的短期(1分钟)电压容差。Allen-Bradley 1606-XL480E电源的输入电流为5安培，在264伏交流电下的典型涌入电流为33安培。

该装置的输出电压范围为24至28伏，可通过使用前面板电位计进行调整，预设电压为24伏，保证调整范围为0.5%。

Allen-Bradley 1606-KL480E开关式电源装置专门在额定温度为105摄氏度的长寿命电解装置上运行。它还具有高水平的可靠性，因为仅使用四个铝电解电容器，并且它们不需要小的铝电解电容器。

如果操作员希望通过使用断路器或保险丝来保护电源的初级侧，则建议安装10安培的慢动保险丝或额外的保护器模块，如1492-SPU1C100模块。务必查阅当地的法规和条例，以确保正确安装。

1606-XL48O0E电源支持多达十个单元的并行操作。输出V/I特性可在0.4安培时变为25伏，或在20安培时变为24伏，以实现均流。这可以在不打开设备的情况下通过移动桥接来完成。

AB 1606-XL480E 开关电源

Allen-BradleyRockwell Automation 1606-XL 480 e power modules are manufactured as part of the Allen-Bradley Announcement 1606-XL Switching Mode power supply line. It has an input voltage of 230 volts and a frequency between 47 and 63 Hertz.

The power supply has a continuous operating voltage tolerance range of 184 to 264 volts AC or 270 to 370 volts DC, as well as a short-term (1 minute) voltage tolerance of 170 to 280 volts AC or 250 to 400 volts DC at 24 volts and 20 amps. The Allen-Bradley 1606-XL480E supply has an input current of 5 amps and a typical inrush current of 33 amps at 264 volts AC.

The unit has an output voltage range of 24 to 28 volts, which can be adjusted by using a front panel potentiometer with a preset voltage of 24 volts, guaranteeing an adjustment range of 0.5%.

The Allen-Bradley 1606-KL480E switching power supply unit is specially designed to operate on long-life electrolytic units rated at 105 degrees Celsius. It also has a high level of reliability as only four aluminum electrolytic capacitors are used and they do not require small aluminum electrolytic capacitors.

If the operator wishes to protect the primary side of the power supply by using a circuit breaker or fuse, it is recommended to install a 10 amp slow acting fuse or an additional protector module such as the 1492-SPU1C100 module. Be sure to check local codes and ordinances to ensure proper installation.

The 1606-XL48O0E power supply supports parallel operation of up to ten units. The output V/I characteristics can be changed to 25 volts at 0.4 amps or 24 volts at 20 amps to achieve current sharing. This can be done by moving the bridge without turning on the device.
