6186M-17PTA-B面板 VersaView 安装式工业显示器

6186M-17PTA-B面板 VersaView  安装式工业显示器

6186M-17PTA-B面板 VersaView  安装式工业显示器

Allen-Bradley生产的6186M-17PT高性能工业显示器是一种基于工业的显示设备，通过17英寸宽的彩色有源矩阵LCD触摸屏提供可视界面，用于控制和维护工业应用。

它提供了338毫米x 270毫米(13.3英寸x 10.7英寸)的独特显示屏尺寸，并支持从720× 400像素到1280x1024像素的多种可选分辨率，每种分辨率的颜色深度为16.7米。抗触摸和防眩光显示表面的亮度为350 cd/m2(尼特)，并配有冷阴极荧光管背光，待机时间为50，000小时。它提供1000:1的对比度和5:4的纵横比，响应时间低于35毫秒。

6186M-17PT具有140MHz的视频传输频率容量，背面有一个数字和模拟DVI和HD-15VGA视频信号连接器，可提供数字和模拟视频信号。它背面有两个USB端口，前面有一个，电流容量为500mA，用于与键盘和打印机等外部设备直接通信。6186M-17PT是一款安装在面板上的工业显示器，使用DIN导轨安装交流电源适配器，额定电压为100-240伏交流电，频率为47-63赫兹，功耗为55瓦。它重8.6千克(19磅)，总尺寸为356毫米x452mm毫米x 61mm毫米(14.02英寸x 17.80in英寸x 2.4in英寸)。

6186M-17PTA-B面板 VersaView  安装式工业显示器

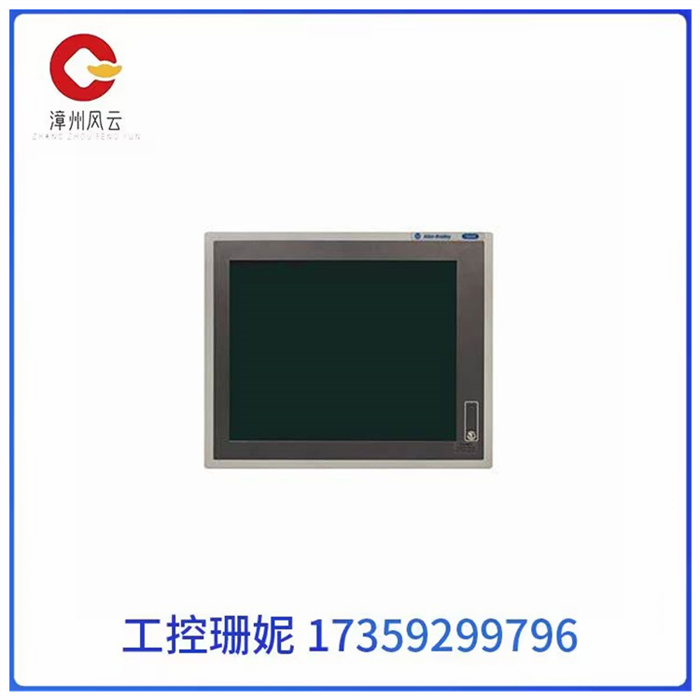

The 61866-17PT High Performance Industrial Display from Allen-Bradley is an industrial-based display device that provides a visual interface via a 17-inch wide color active matrix LCD touch screen for controlling and maintaining industrial applications.

It offers a unique display size of 338 mm x 270 mm (13.3 inches x 10.7 inches) and supports a variety of selectable resolutions from 720 x 400 pixels to 1280x1024 pixels, each with a color depth of 16.7 meters. The anti-touch and anti-glare display surface has a brightness of 350 cd/m2(nits) and is backlit by a cold cathode fluorescent tube with a standby time of 50,000 hours. It offers a 1000:1 contrast ratio and a 5:4 aspect ratio with a response time of less than 35 milliseconds.

The 6186M-17PT has a 140MHz video transmission frequency capacity and a digital and analog DVI and HD-15VGA video signal connector on the back to provide digital and analog video signals. It has two USB ports on the back and one on the front with a current capacity of 500mA for direct communication with external devices such as keyboards and printers. The 61866-17PT is a panel-mounted industrial display with a DIN rail mounted AC power adapter rated for 100-240 volts AC at a frequency of 47-63 Hertz and a power consumption of 55 watts. It weighs 8.6 kg (19 lb) and has a total dimensions of 356 mm x452mm x 61mm (14.02 inches x 17.80in inches x 2.4in inches).
