6181P-17A2MW71DC单点触摸显示器

6181P-17A2MW71DC单点触摸显示器

技术规格

. 6181P17A2MW71DC·综合显示

·工业计算机 17"

·单点触摸显示器铝制表圈

·英特尔酷睿l3

· 2.5英寸MLC固态硬盘

. WINDowS 764位操作系统·直流电

6181P-17A2MW71DC单点触摸显示器

Technical specification

.6181P17A2MW71DC · Integrated display

· Industrial Computer 17"

· Aluminum bezel of single touch display

· Intel Core l3

· 2.5-inch MLC SSD

WINDowS 764 bit operating system · Direct current

6181P-17A2MW71DC单点触摸显示器

Allen-Bradley 6181 p-17 a2HW71 DC versa view 1700 p工业显示计算机是一款高性能工业计算机，采用薄膜层集成显示技术和i3核心处理器，用于执行视觉界面、维护和基本信息应用。这台计算机是圆顶形的，带有用于额外保护的铝制挡板，它采用NEMA 4X/12级工业室内外壳，专为危险的工业环境而设计。

6181P-17A2HW71DC具有17英寸彩色有源薄膜晶体管(TFT)集成平板显示器，带有模拟电阻式触摸屏，屏幕面积为338x270毫米(13.3×10.7英寸)。它的默认显示分辨率为1280×1024像素，16.7米颜色，典型响应时间为15毫秒，最大视角为60度和40度(水平和垂直)。这款电脑配备了处理速度为1.2 GHz的英特尔酷睿i3处理器，以及2M L2高速缓存。

6181P-17A2HW71DC还配备了100 GB2.5英寸SATA旋转硬盘驱动器，用于存储用户应用程序，它有1个PCI插槽，可以升级到2个PCIl插槽或1个PCI+1个PCI Express插槽。

它有1个超薄的DVD-RW/CD-RW光盘驱动器，配有1个PS/2鼠标和键盘端口、1个并行端口、1个DVH端口、2个串行通信端口、4个后置USB 2.0主机端口、1个前置USB端口、1个音频线路输入/线路输出插槽、1个麦克风端口和2个用于连接的GB以太网LAN端口。

这台计算机是DC供电的，DC输入电压范围为18至32伏，在5.28安培和18伏DC下最大功耗为95瓦。6181P-17A2HW71DC在10%至90%非冷凝相对湿度下的工作温度范围为0至50摄氏度(32至122华氏度)，非工作温度范围为-20至60摄氏度(-4至140华氏度)。6181P-17A2HW71DC重约12.6千克，安装尺寸为356x452 × 100毫米，通过了cUL-us、RoHS、CE和C-TICK认证。

6181P-17A2MW71DC单点触摸显示器

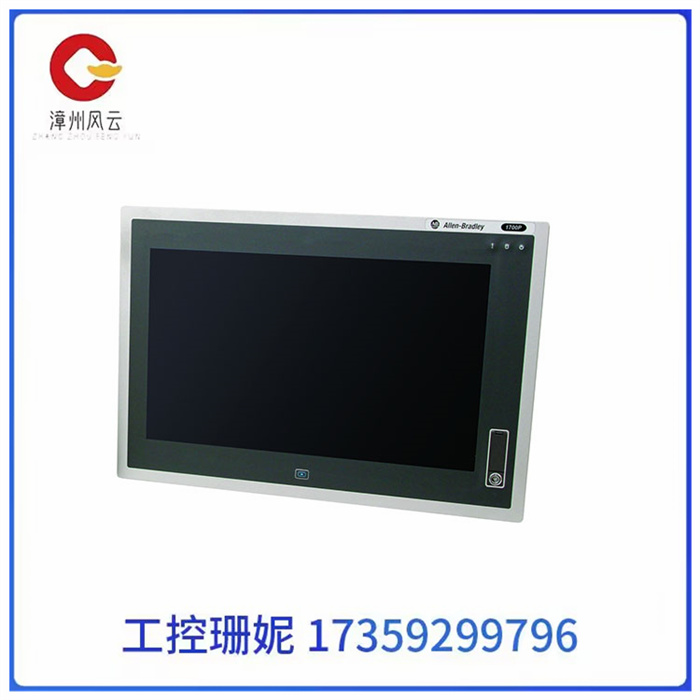

Allen-Bradley 6181 P-17 a2HW71 DC versa view 1700 p Industrial Display Computer is a high performance industrial computer with thin film layer integrated display technology and i3 core processor for performing visual interface, maintenance and basic information applications. The computer is dome-shaped with an aluminum baffle for extra protection, and it features a NEMA 4X/12 grade industrial interior housing designed for hazardous industrial environments.

The 6181P-17A2HW71DC features a 17-inch color active thin film transistor (TFT) integrated flat panel display with an analog resistive touch screen with a screen area of 338x270 mm (13.3 x 10.7 in). It has a default display resolution of 1280×1024 pixels, 16.7 meters of color, a typical response time of 15 milliseconds, and a maximum viewing Angle of 60 and 40 degrees (horizontal and vertical). The computer is equipped with an Intel Core i3 processor with a processing speed of 1.2GHz and a 2M L2 cache.

The 6181P-17A2HW71DC also comes with a 100 Gb2.5-inch SATA rotary hard drive for storing user applications, which has 1 PCI slot and can be upgraded to 2 PCIl slots or 1 PCI+1 PCI Express slot.

It has a slim DVD-RW/CD-RW disc drive, It comes with 1 PS/2 mouse and keyboard port, 1 parallel port, 1 DVH port, 2 serial communication ports, 4 rear USB 2.0 host ports, 1 front USB port, 1 audio line input/line output slot, 1 microphone port, and 2 GB Ethernet LAN ports for connectivity.

This computer is DC-powered with a DC input voltage range of 18 to 32 volts and a maximum power consumption of 95 watts at 5.28 amps and 18 volts DC. The 6181P-17A2HW71DC has an operating temperature range of 0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit) and a non-operating temperature range of -20 to 60 degrees Celsius (-4 to 140 degrees Fahrenheit) at 10% to 90% non-condensing relative humidity. The 6181P-17A2HW71DC weighs approximately 12.6 kg, has a mounting size of 356x452 x 100 mm, and is certified by cUL-us, RoHS, CE, and C-TICK.
