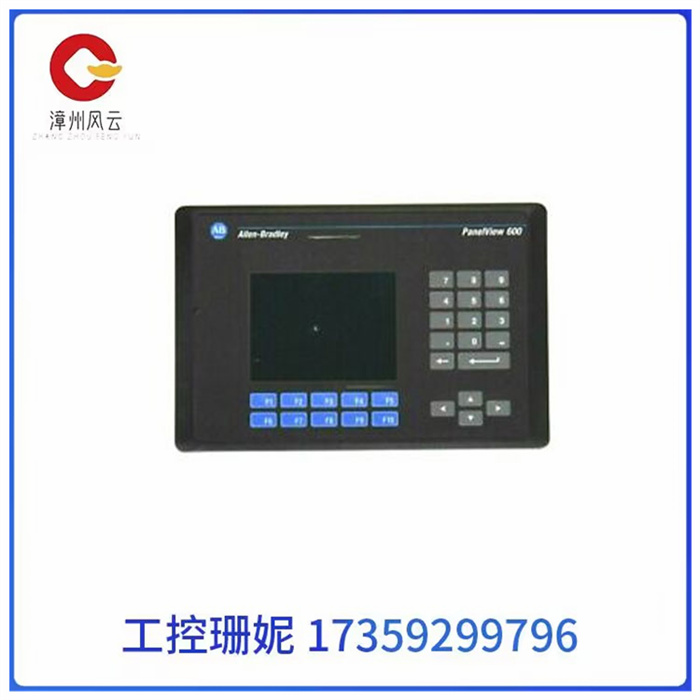

A-B罗克韦尔 2711-B6C1 人机界面HMI 触摸屏

A-B罗克韦尔 2711-B6C1 人机界面HMI 触摸屏

A-B罗克韦尔 2711-B6C1 人机界面HMI 触摸屏

现场控制是一系列高度模块化的分布式I/O和控制产品。

它们很合适  适用于各种主机体系结构。  现场控制系统的核心是总线接口单元。总线接口单元提供  智能处理、I/O扫描和多八个I/O组的功能配置  模块。

 总线接口单元和I/O模块封装在坚固、紧凑的铝外壳中。公共汽车  接口单元和I/O模块用螺栓牢固地固定在单独的接线板上，接线板提供所有现场数据  接线端子。

I/O接线板是通用的，允许使用不同的I/O模块类型  安装在同一基座上。I/O接线板可与箱式端子、屏障式端子一起使用  端子或线路板连接器。所有接线板必须安装在DIN导轨上。这个  DIN导轨作为接地系统的一个组成部分，也可以安装在面板上。

A-B罗克韦尔 2711-B6C1 人机界面HMI 触摸屏

Field Control is a series of highly modular distributed I/O and control products.

They are suitable for a variety of host architectures. The core of the field control system is the bus interface unit. The bus interface unit provides intelligent processing, I/O scanning, and functional configuration modules for eight more I/O groups.

The bus interface unit and I/O module are packaged in a robust, compact aluminum housing. The bus interface unit and I/O module are bolted securely to a separate patch board that provides all field data terminals.

The I/O patch board is universal, allowing different I/O module types to be mounted on the same base. I/O terminals can be used with box terminals, screen terminals or circuit board connectors. All connectors must be mounted on DIN rails. This DIN rail is an integral part of the grounding system and can also be mounted on the panel.
