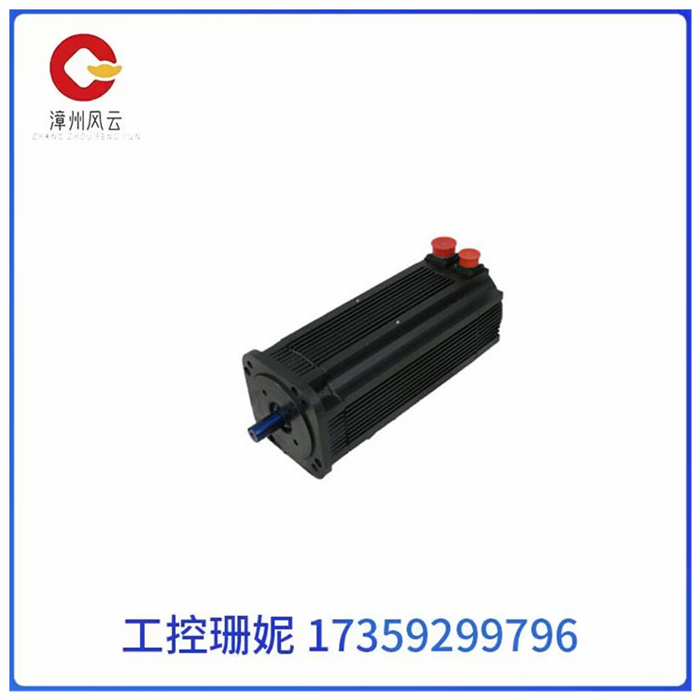

A-B 1326AB-B720E-21 伺服电机

A-B 1326AB-B720E-21 伺服电机

A-B 1326AB-B720E-21 伺服电机

Allen Bradley设计的无刷交流同步电机满足伺服系统应用的严格要求。本系列标准交流伺服电机可与1391交流伺服控制器一起使用。表演带有选定放大器的这些电机的参数列在第8页。典型的转速-转矩曲线（见第9页）描述了运行工况这些电机和控制器组合的外壳。

每个电机都有以下标准功能：

•增加伺服响应的永磁转子。

•三相正弦绕线定子磁场，用于将热量直接传递到环境友好，低速平稳运行。

•无刷旋转变压器提供位置、换向和速度反馈信息这还可以在恶劣环境下提供性在马达中装有车载电子设备。1391 A四线组B（可选）编码器输出（高达2048 ppr）通过解析器反馈生成。

•失速时连续额定输出扭矩（零rpm）。

•总峰值为0.0005英寸（0.0127毫米）的天平取代

•垂直轴上下安装。

•TENV建设。

•IP65额定值（与轴封选件一起使用时），可承受恶劣环境环境。

A-B 1326AB-B720E-21 伺服电机

Allen Bradley designs brushless AC synchronous motors to meet the stringent requirements of servo system applications. This series of standard AC servo motors can be used with 1391 AC servo controllers. The parameters for performing these motors with selected amplifiers are listed on page 8. The typical RPM to torque curve (see page 9) describes the operating conditions of these motor and controller combinations of the housing.

Each motor has the following standard features:

• Permanent magnet rotor with increased servo response.

• Three-phase sinusoidal winding stator magnetic field is used to transfer heat directly to environmentally friendly, low speed and smooth operation.

• Brushless rotary transformers provide position, commutation and speed feedback This can also provide performance in harsh environments with on-board electronics in the motor. 1391 A quad B (optional) encoder output (up to 2048 ppr) is generated by parser feedback.

• Continuous rated output torque at stall (zero rpm).

• Replace the balance with a total peak value of 0.0005 inches (0.0127 mm)

• Vertical shaft mounting up and down.

•TENV construction.

•IP65 rating (when used with shaft seal options) to withstand harsh environments.
