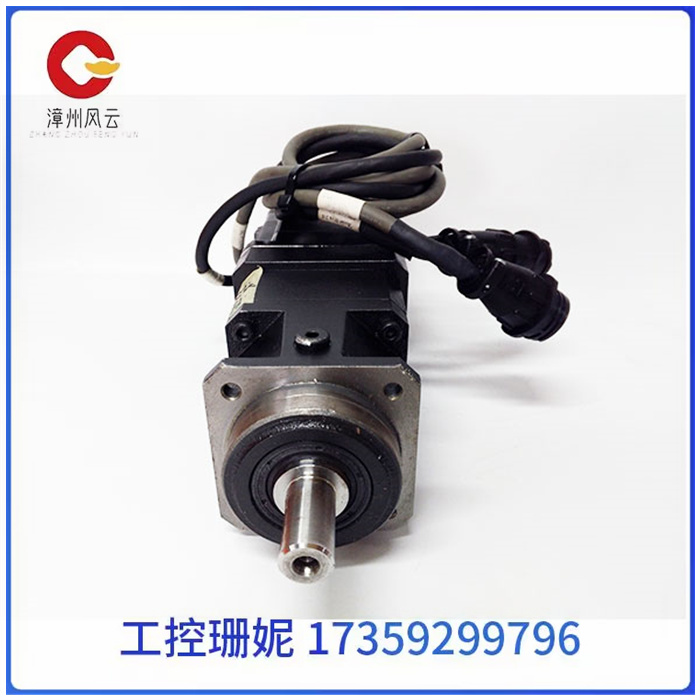

A-B罗克韦尔 Y-3023-2-H00AA Y系列无刷伺服电机 机器人伺服驱动

A-B罗克韦尔 Y-3023-2-H00AA Y系列无刷伺服电机 机器人伺服驱动

Y-3023-2-H00AA是艾伦-布拉德利Y系列的无刷伺服电机。-般来说，它的目的是执行复杂的定位和完美的速度应用，以及工业机器上的加速控  制。它是轻工Y系列中机架尺寸最大的伺服电机。

它的绕组在230伏的交流电压下工作。光学编码器线计数可用,不包括中断选项。Y-3023-2-  H0OAA伺服电机高能磁体(钕)为快速加速提供低惯性。它的额定转速是每分钟4500转。获得IP43额定外壳保护。

Y-3023-2-H00AA有8个电极。  Y-3023-2-H00AA的特点之一安装在电机 上的光学编码器行计数，具有2000 P/R分辨率和换向信号。5伏DC电压用于编码器电源。将需要伺服驱  动器来完成伺服驱动器定位系统。

Allen- Bradley推荐将下列伺服驱动器与下列伺服电机-起使用:1 398-DDM-019、1398-DDM-020、 2093-  AM02、2094-AM02或2098-DSD-020。 系统与伺服电机轴的连接应该是刚性的，以防止联轴器、滑轮或皮带随着时间的推移而滑动并导致轴损  坏。连接电缆应尽可能短。该模块的装运重量为3.9千克(8.7磅)。

它的工作温度范围是0到40摄氏度(32到104华氏度)。 Y-3023-2-H00AA伺服电机  应在标准I业环境中使用。不要将它们暴露在高湿度或高环境温度下。Y-3023-2-H00AA的尺寸为140 x 80 x 80毫米(5.57 x 3.15x 3.15英寸。).它   的轴直径为16毫米(0.63英寸)。

A-B罗克韦尔 Y-3023-2-H00AA Y系列无刷伺服电机 机器人伺服驱动

Y-3023-2-h00aa is a brushless servo motor in the Allen-Bradley Y series. - In general, it is designed to perform complex positioning and perfect speed applications, as well as acceleration control on industrial machines. It is the largest rack size servo motor in the light industry Y series.

Its windings operate at 230 volts AC. Optical encoder line counting is available and does not include interrupt option. Y-3023-2-H0OAA servo motor High Energy magnets (Neodymium) provide low inertia for fast acceleration. It is rated at 4500 revolutions per minute. IP43 rated enclosure protection.

Y-3023-2-H00AA has eight electrodes. One of the features of the Y-3023-2-H00AA is an optical encoder line counting mounted on the motor with 2000 P/R resolution and commutation signal. 5 V DC voltage for encoder power supply. A servo driver will be required to complete the servo drive positioning system.

Allen-Bradley recommends using the following servo drives with the following servo motors :1 398-DDM-019, 1398-DDM-020, 2093-AM02, 2094-AM02 or 2098-DSD-020. The connection of the system to the servo motor shaft should be rigid to prevent the coupling, pulley or belt from sliding over time and causing shaft damage. The connection cable should be as short as possible. The module's shipping weight is 3.9 kg (8.7 lb).

It operates in a temperature range of 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit). Y-3023-2-H00AA servo motor should be used in a standard I industry environment. Do not expose them to high humidity or ambient temperatures. The Y-3023-2-H00AA measures 140 x 80 x 80 mm (5.57 x 3.15x 3.15 inches). Its shaft diameter is 16 mm (0.63 in).
