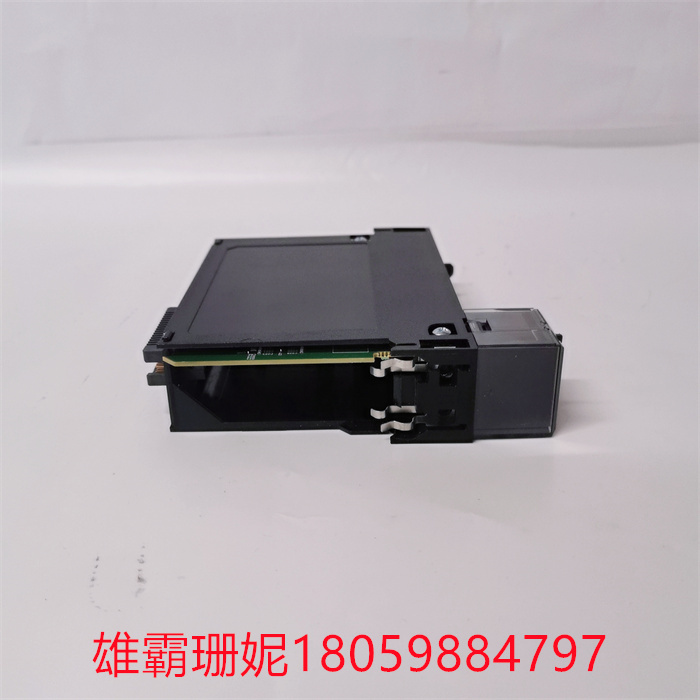

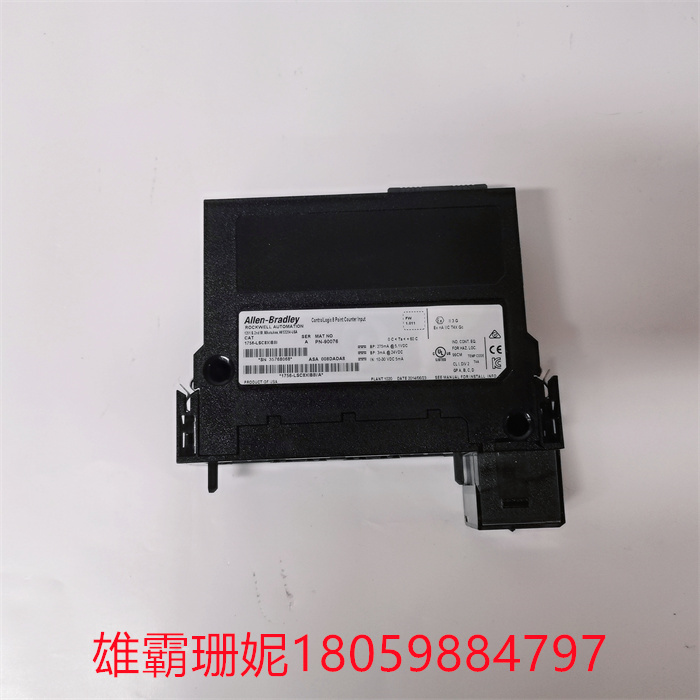

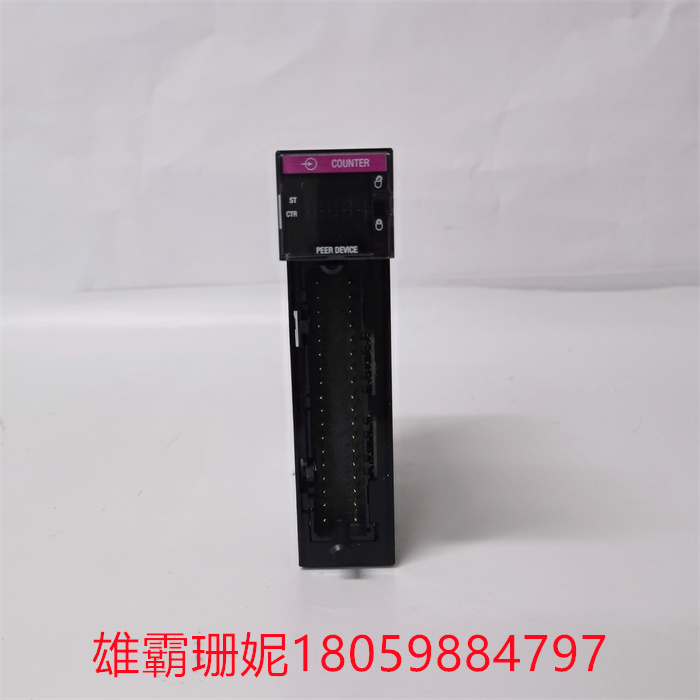

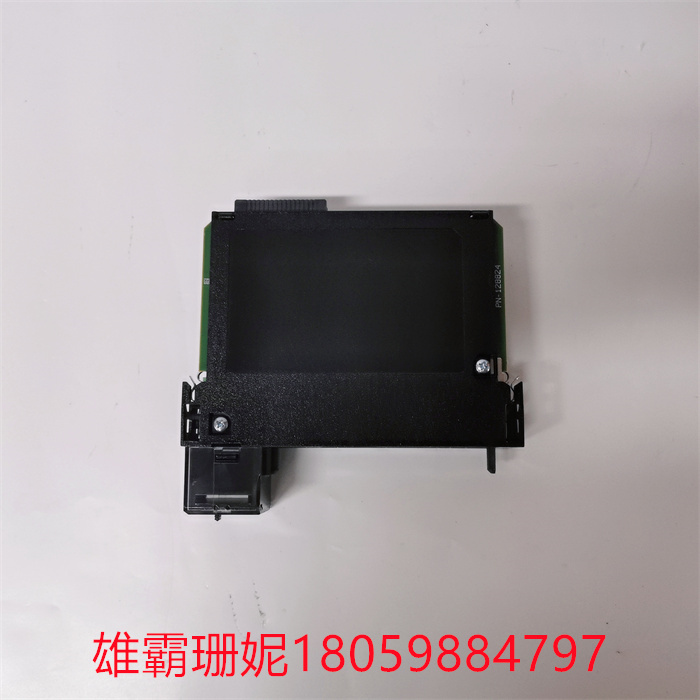

1756-LSC8XIB8I模块的工作电压范围为10至30V DC，标称输入电压为24V DC。它还在5.1V DC时消耗275 mA电流，在24V DC时消耗3 mA的电流。它还具有1.47 W的总背板功率。在关闭状态下，其大电压为5V，大电流为1.5 mA。处于导通状态时，其电流范围在10V DC时小为2 mA，在30V DC时大为5 mA。1756-SC8XIB8I模块还具有250V的连续隔离电压。它已经在1500V AC下进行了60s输入到输入的测试，在2300V AC下进行了60s输入到背板的测试。

该模块的散热量为12.97 BTU / hr。从关到开，反之亦然，其螺钉到背板的输入延迟时间为标称值为14 µs /大值为23 µs +用户可配置的过滤时间为0至30,000 µs。它的工作温度范围为0到60摄氏度，非工作范围为-40到85摄氏度。它在10到500 Hz时的振动为2 g，操作冲击为30 g，非操作冲击为50 g。

The 1756-LSC8XIB8I module has an operating voltage range of 10 to 30V DC with a nominal input voltage of 24V DC. It also consumes 275 mA of current at 5.1V DC and 3 mA of current at 24V DC. It also has a total backplane power of 1.47W. In the off state, the high voltage is 5V and the high current is 1.5mA. In the on-state, its current range is as little as 2 mA at 10V DC and as much as 5 mA at 30V DC. The 1756-SC8XIB8I module also features a continuous isolation voltage of 250V. It has been tested with 60s input to input at 1500V AC and 60s input to backplane at 2300V AC.

The heat dissipation of the module is 12.97 BTU/hr. From off to on, and vice versa, the input delay time of the screw to the backplane is a nominal value of 14 µs/a maximum value of 23 µs + a user-configurable filter time of 0 to 30,000 µs. It has an operating temperature range of 0 to 60 degrees Celsius and a non-operating range of -40 to 85 degrees Celsius. It has a vibration of 2 g at 10 to 500 Hz, an operational shock of 30 g, and a non-operational shock of 50 g.
