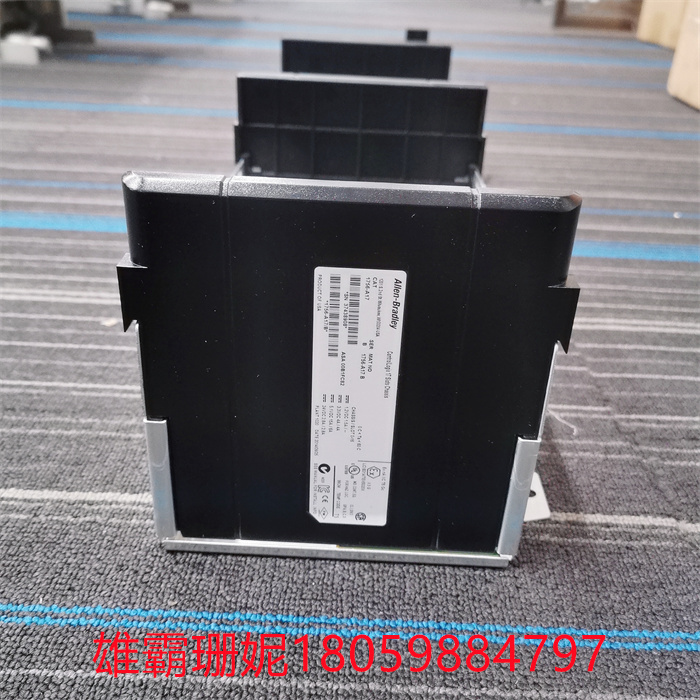

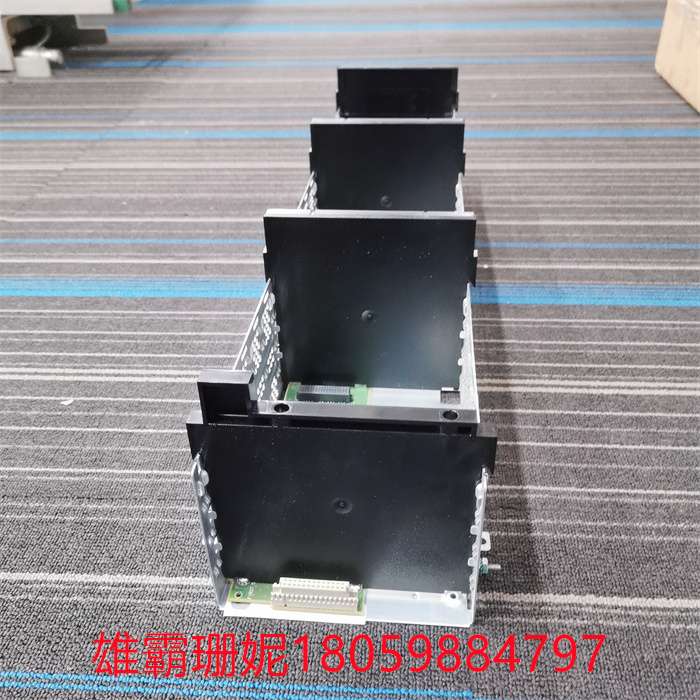

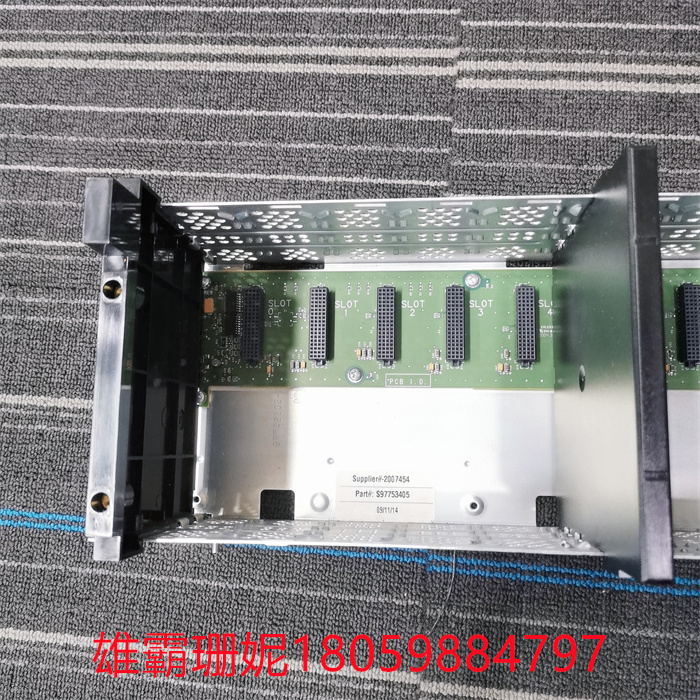

A-B罗克韦尔1756-A17 处理器模块

A-B罗克韦尔1756-A17 处理器模块

对器件进行在线测试或比较过程中，凡是测试通过（或比较正常）的器件，请直接确认测试结果，以便记录；对测试未通过（或比较超差）的，可再测试一遍，若还是未通过，也可先确认测试结果，就这样一直测试下去，直到将板上的器件测试（或比较）完，然后再回过头来处理那些未通过测试（或比较超差）的器件。

对未通过功能在线测试的器件，仪器还提供了一种不太却又比较实用的处理方法，由于仪器对电路板的供电可以通过测试夹施加到器件相应的电源与地脚，若对器件的电源脚实施刃割，则这个器件将脱离电路板供电系统，这时再对该器件进行在线功能测试，由于电路板上的其他器件将不会再起干扰作用，实际测试效果等同于“准离线”，测准率将获得很大提高。

由于ASA-VI智能曲线扫描技术能适用于对任何器件的比较测试，只要测试夹能将器件夹住，再有一块参照板，通过对比测试，同样对器件具备较强的故障侦测能力。

该功能弥补了器件在线功能测试要受制于测试库的不足，拓展了仪器对电路板故障的侦测范围。现实中往往会出现无法找到好板做参照的情景，而且待修板本身的电路结构也无任何对称性，在这种情况下，ASA-VI曲线扫描比较测试功能起不了作用，而在线功能测试由于器件测试库的不完全，无法完成对电路板上每一个器件都测试一遍，电路板依然无法修复，这儿就是电路在线维修仪的局限，就跟没有包治百病的药一样。

In the process of online testing or comparison of devices, any device that passes the test (or is relatively normal), please directly confirm the test results for record; For those that have not passed the test (or are relatively out of tolerance), you can test again, if you have not passed the test, you can also confirm the test result first, and then test it until the device on the board is tested (or compared), and then go back to deal with those that have not passed the test (or compared out of tolerance).

For the devices that have not passed the functional online test, the instrument also provides a less but more practical treatment method. Because the power supply of the circuit board of the instrument can be applied to the corresponding power supply and anchor of the device through the test clip, if the power supply foot of the device is cut, the device will be separated from the circuit board power supply system, and then the device will be tested online. Since other devices on the circuit board will not interfere again, the actual test effect is equivalent to "quasi-offline", and the accuracy will be greatly improved.

Because the ASA-VI intelligent curve scanning technology can be applied to the comparative test of any device, as long as the test clip can clamp the device, there is a reference board, through the comparison test, the device also has a strong fault detection ability.
