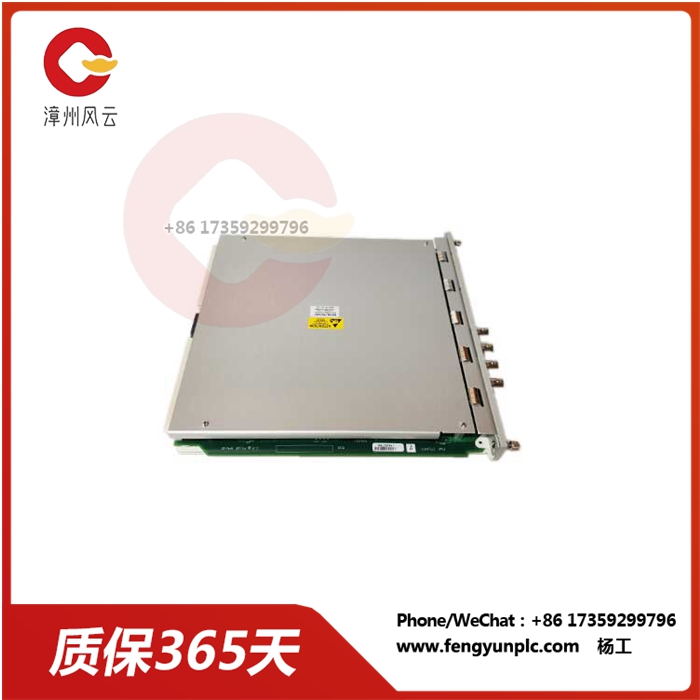

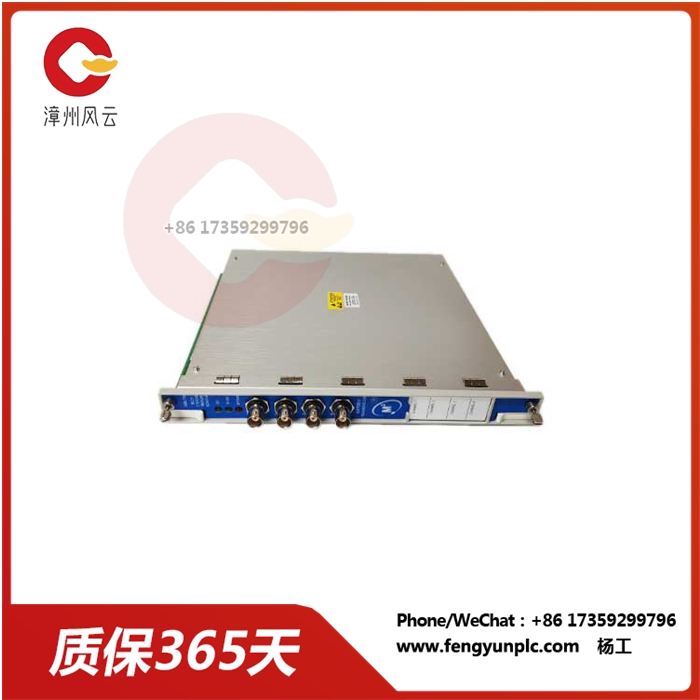

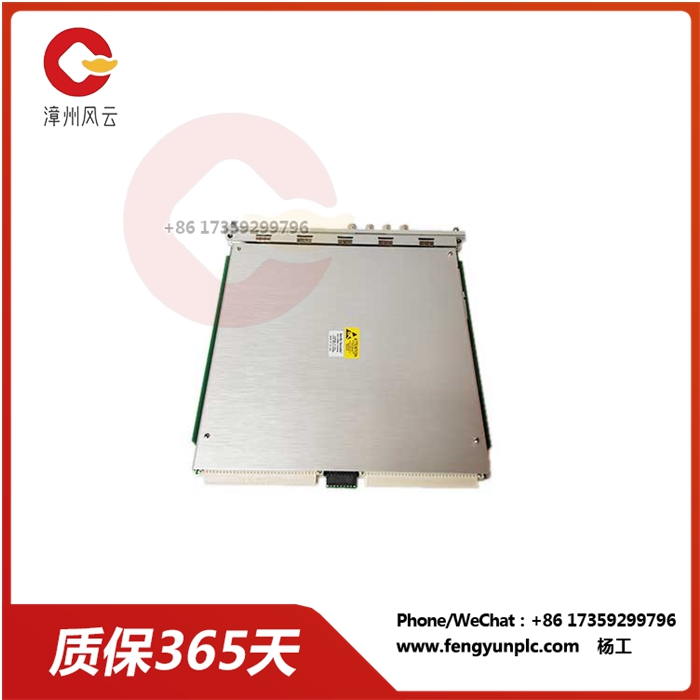

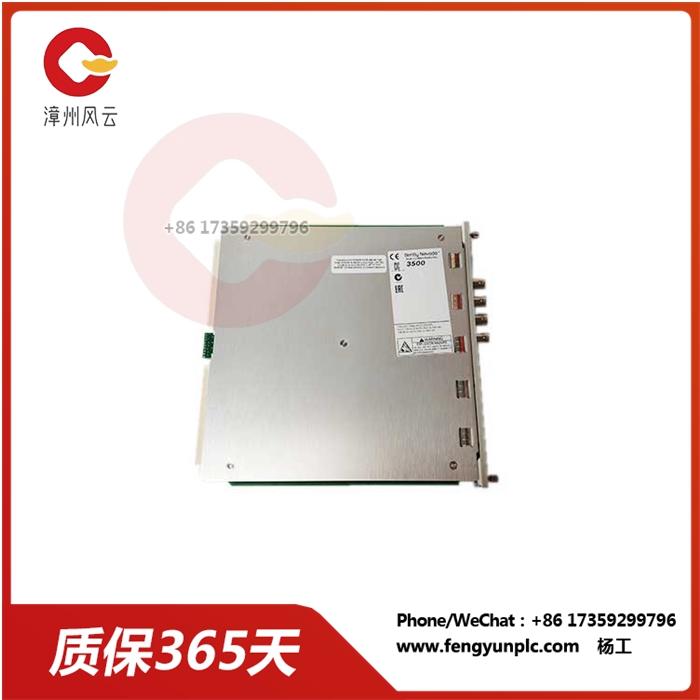

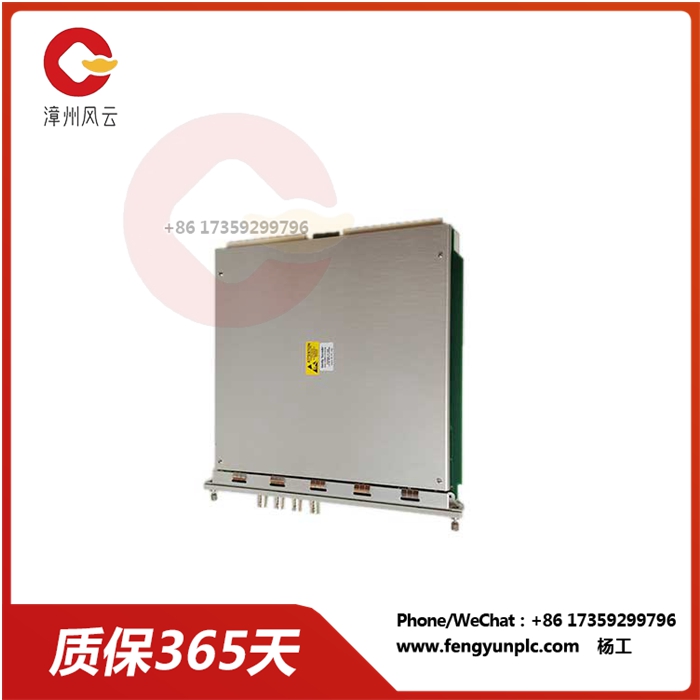

3500/77M 176449-07 气缸压力监测器 一 个4通道监测器

3500/77M 176449-07 气缸压力监测器 一 个4通道监测器

3500/77M 176449-07 气缸压力监测器是一个四通道监测器，专为保护机器和维护人员而设计。它接收来自Bently Nevada许可的压力传感器的信号，并对这些信号进行处理，以转换为各种往复式压缩机汽缸压力测量参数。这些参数随后与用户可编程的报警值进行比较，以触发必要的报警。

其主要功能是通过持续比较被监测参数与预设的报警设定点，来启动报警并保护机械免受潜在损害。每个通道通常将输入信号调理为提供称为“比例值”的各种参数，也称为PPL。用户可以为每个活动比例值配置报警设定点(PPL)和任何两个活动比例值的危险设定点。

此外，3500/77M气缸压力监测器还提供了与操作和维护人员相关的基本机器信息。它具备PLC/DCS备件模块的特性，确保与各种控制系统和设备的兼容性。在结构上，该监测器采用模块式设计，方便现场安装和维护。

总的来说，3500/77M 176449-07 气缸压力监测器是一个功能强大、性能稳定的设备，适用于需要精确测量和控制气缸压力的工业应用，如往复式压缩机等。其高度的可靠性和准确性有助于确保工业过程的顺利进行，同时降低设备故障和维护成本。

3500/77M 176449-07 气缸压力监测器 一 个4通道监测器

The 3500/77M 176449-07 Cylinder Pressure monitor is a four-channel monitor designed to protect machines and maintenance personnel. It receives signals from pressure sensors licensed by Bently Nevada and processes these signals to convert them into a variety of reciprocating compressor cylinder pressure measurement parameters. These parameters are then compared with user-programmable alarm values to trigger the necessary alarms.

Its main function is to activate the alarm and protect the machine from potential damage by continuously comparing the monitored parameters with the preset alarm set points. Each channel typically conditioning the input signal to provide various parameters called "proportional values," also known as PPL. The user can configure an alarm set point (PPL) for each active scale value and a danger set point for any two active scale values.

In addition, the 3500/77M cylinder pressure monitor provides basic machine information relevant to operators and maintenance personnel. It features PLC/DCS spare parts modules to ensure compatibility with a wide range of control systems and equipment. In terms of structure, the monitor adopts modular design, which is convenient for on-site installation and maintenance.

Overall, the 3500/77M 176449-07 cylinder pressure monitor is a powerful and stable device for industrial applications that require accurate measurement and control of cylinder pressure, such as reciprocating compressors. Its high reliability and accuracy help ensure the smooth running of industrial processes while reducing equipment failures and maintenance costs.
