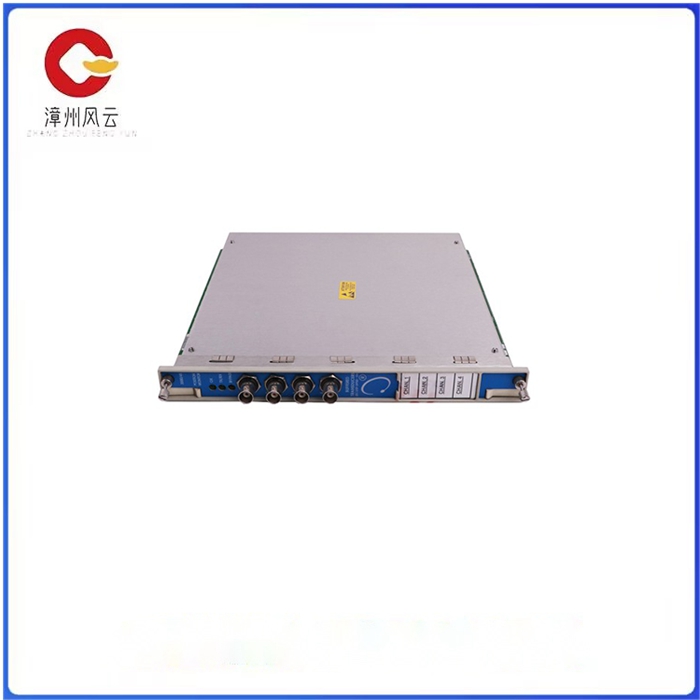

3500/45-01-00差胀热膨胀模块

3500/45-01-00差胀热膨胀模块

本特利3500/45-01-00配件13545-01差胀热膨胀模块属于本特利.内华达(Bently Nevada)公司3500产品，本特利3500是旋转机械在线状态监测和机械保护而设计的振动监测系统，涉及用户包括电力、石化、造纸、钢铁、机械和设备维修。本特利3500系统适用于压缩机、风机、制氧机、水泵、电机、汽轮机等机械的工程要求。其中汽轮机安全监视及保护系统(TSI)是比较典型的，可在线监测系统可连续测量和监测旋转机械和往复式机械的运转状态，对预防不平衡、不对中、轴裂痕和轴承损坏等预诊断提供重要的数据资料。本特利3500/45位置监测器是一个4通道监测器，它接受来自涡流传感器、线性可变差动变压器LVDT以及旋转电位计的输入，并利用此输入信号来驱动报警。3500/45可利用3500框架组态软件编程来执行以下功能：轴位移，差胀，斜面差胀，补偿输入差胀，壳胀和阀位。

本特利3500/45-01-00配件13545-01差胀热膨胀模块为本特利3500框架系统提供连续、在线监测功能，符合美国石油协会API670标准对该类系统的要求。该系统高度模块化的设计包括必选项：框架3500/05 ; 电源3500/15;框架接口模块3500/22; 3500/01框架组态软件；振动监测器模块3500/42M等。特点 :1、数字和模拟通讯；2、高度灵活的显示选项；3、软件可组态；4、更高的集成度/ 容错能力；5报警/事件列表；6、API670 标准；7、所有的模块和电源（当使用冗余电源时）可以在带电情况下在框架中插拔，8、进的数据类型3500系统用于连续监测应用于多种行业的旋转和往复机械，尤其适用于要求极高可靠性和可用性的自动停机机械保护应用中。

3500/45-01-00差胀热膨胀模块

Bentley 3500/45-01-00 Accessory 13545-01 Differential expansion thermal expansion module belongs to Bentley. Bently Nevada 3500 products, Bentley 3500 is a vibration monitoring system designed for online condition monitoring and mechanical protection of rotating machinery for users including power, petrochemical, paper, steel, machinery and equipment maintenance. Bentley 3500 system is suitable for compressor, fan, oxygen generator, water pump, motor, steam turbine and other mechanical engineering requirements. Among them, the turbine safety monitoring and protection system (TSI) is more typical. The on-line monitoring system can continuously measure and monitor the running state of rotating machinery and reciprocating machinery, and provide important data for the pre-diagnosis of preventing unbalance, misalignment, shaft cracks and bearing damage. The Bentley 3500/45 position monitor is a 4-channel monitor that accepts input from the eddy current sensor, the linear variable differential transformer LVDT, and the rotary potentiometer and uses this input signal to drive the alarm. The 3500/45 can be programmed with the 3500 frame configuration software to perform the following functions: shaft displacement, differential expansion, bevel differential expansion, compensation for input differential expansion, shell expansion and valve position.

The Bentley 3500/45-01-00 Accessory 13545-01 Differential expansion thermal expansion module provides continuous, in-line monitoring of the Bentley 3500 frame system and complies with API670 requirements for such systems. The system's highly modular design includes mandatory options: Frame 3500/05; Power supply 3500/15; Frame interface module 3500/22; 3500/01 Framework configuration software; Vibration monitor module 3500/42M etc. Features :1, digital and analog communication; 2, highly flexible display options; 3, the software can be configured; 4, higher integration/fault tolerance; 5 Alarm/event list; 6. API670 standard; 7, all modules and power supplies (when using redundant power supplies) can be plugged in and out of the frame under live conditions, 8, the data type 3500 system is used for continuous monitoring of rotating and repeating machinery used in a variety of industries, especially for automatic shutdown machine protection applications that require extremely high reliability and availability.
