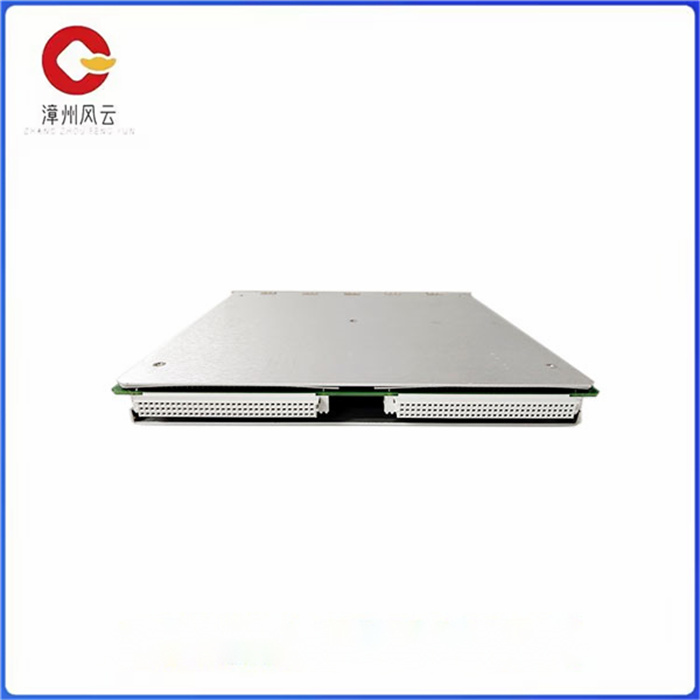

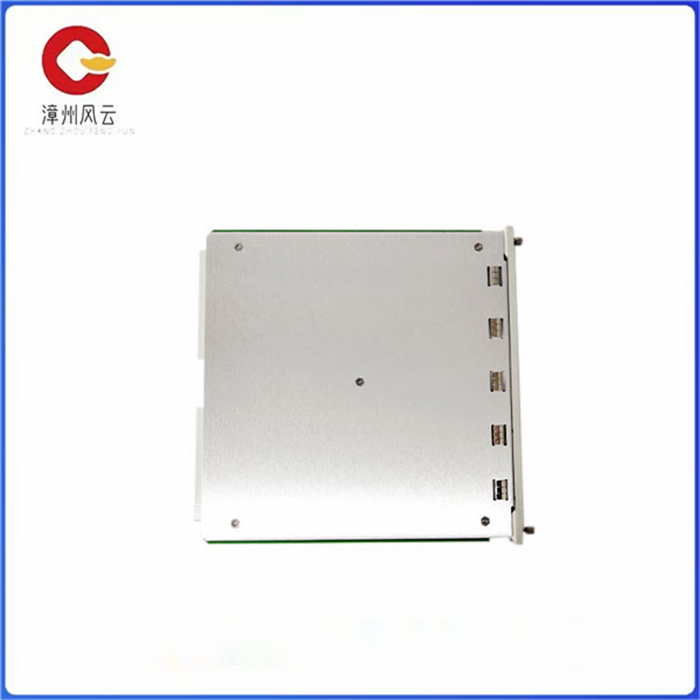

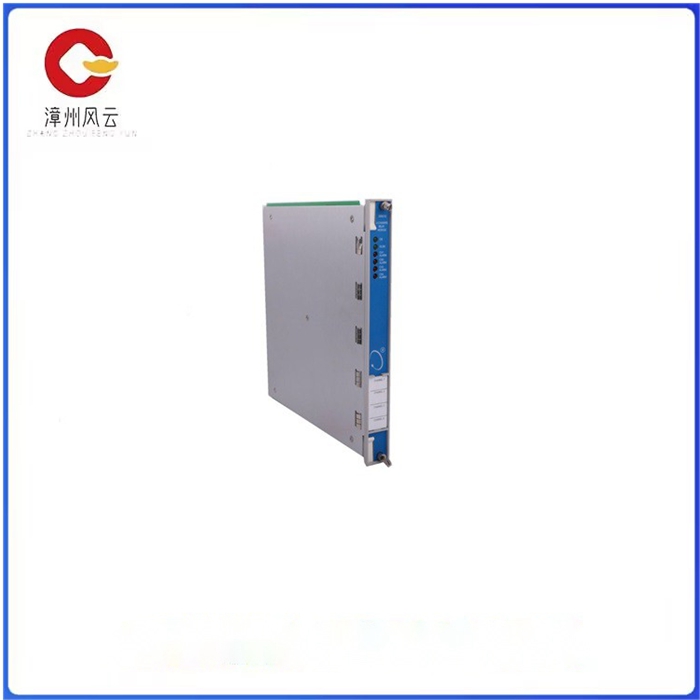

350032M 继电器模块4通道

详细参数描述    　

3500/32M4通道继电器模块提供四个继电器输出和高度可配置的继电器逻辑接口。  四个输出中的每一个都可以独立编程，以通过为每个继电器配置警报驱动逻辑来启用投票。  3500机械保护系统内的所有通道都可用于使用NotOK状态以及3500/32M内的警报和危险设置点来驱动复杂逻辑。  3500/32M为高度可配置的AND/OR逻辑组合提供易于使用的界面，包括“正常”和“真”和表决选项以及闭锁继电器通道选项。    　　

4通道继电器模块是一个全高模块提供四个继电器输出。任何数量的4通道继电器    　 模块可以放置在瞬态数据接口模块。    4的每个输出-通道继电器模块可独立编程为执行投票逻辑。    　　4通道继电器模块上使用的每个继电器包括    　　报警驱动逻辑。    　　报警驱动逻辑的编程使用AND和OR逻辑，    　　并且可以使用报警输入（警报和危险状态），    　　不正常，或来自任何监视器通道或任何    　　机架中监视器通道的组合。你可以    　　编程此报警驱动器以满足您的应用需求    　　使用3500机架配置软件。

350032M 继电器模块4通道

Detailed parameter description

The 3500/32M4 channel relay module offers four relay outputs and a highly configurable relay logic interface. Each of the four outputs can be programmed independently to enable voting by configuring alarm driver logic for each relay. All channels within the 3500 mechanical protection system can be used to drive complex logic using NotOK states and alarm and hazard setting points within 3500/32M. The 3500/32M provides an easy-to-use interface for highly configurable AND/OR logic combinations, including "normal" and "true" and voting options as well as lockout relay channel options.

The 4-channel relay module is a full height module providing four relay outputs. Any number of 4-channel relay modules can be placed in the transient data interface module. Each output-channel relay module of 4 can be independently programmed to execute voting logic. Each relay used on the 4-channel relay module includes alarm drive logic. The alarm driver logic is programmed using AND and OR logic, and can use alarm inputs (alarm and danger status), abnormal, or a combination of monitor channels from any monitor channel or any rack. You can program this alarm driver to meet your application needs using 3500 rack configuration software.
