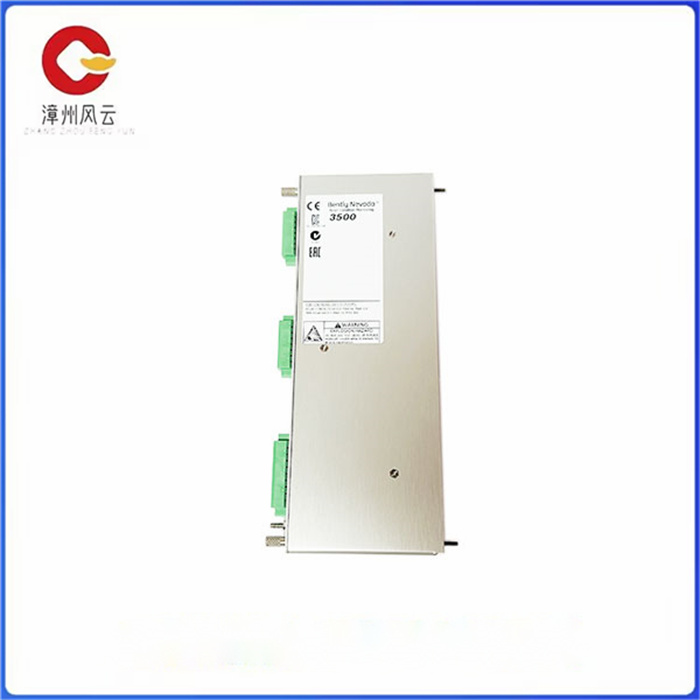

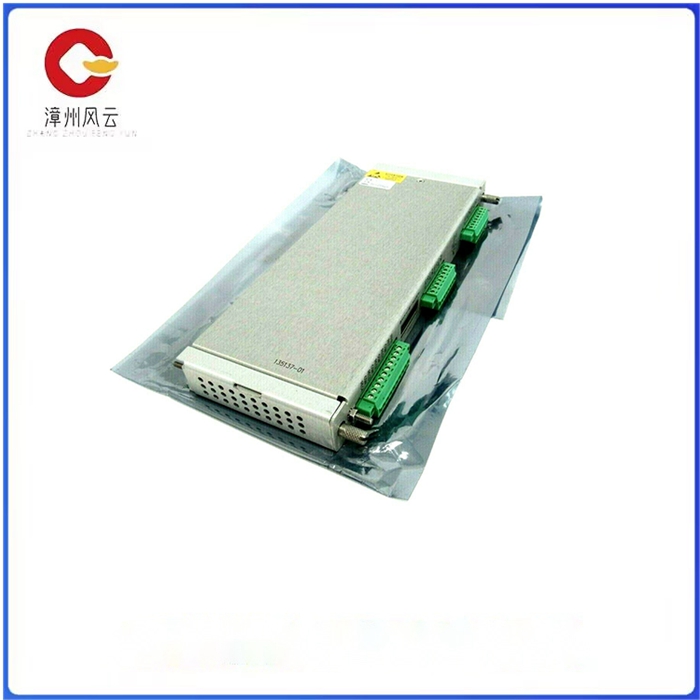

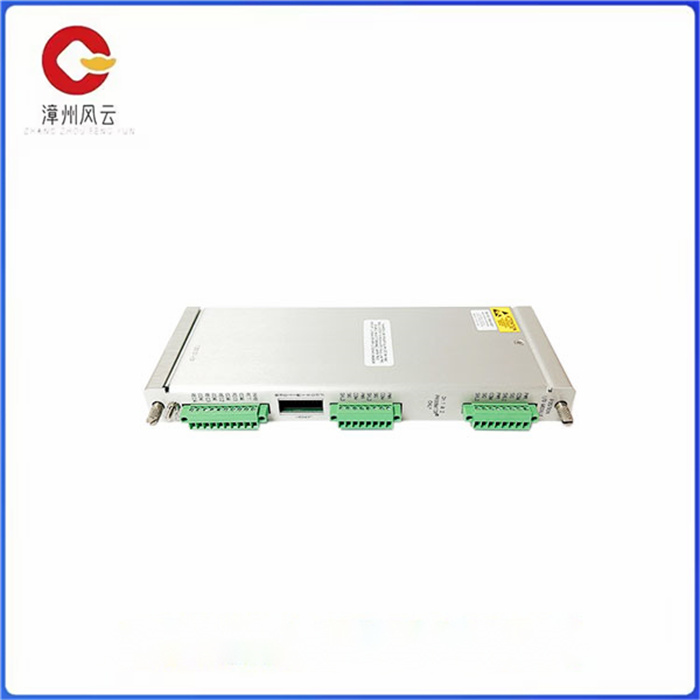

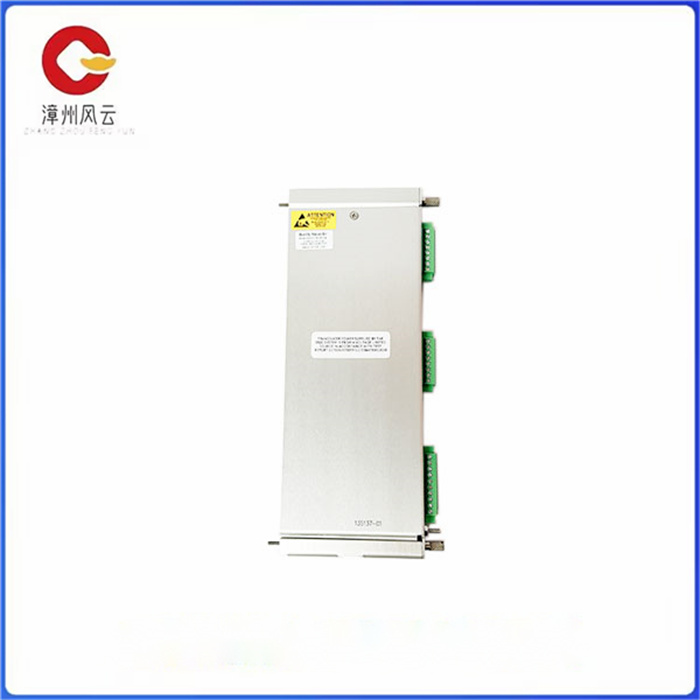

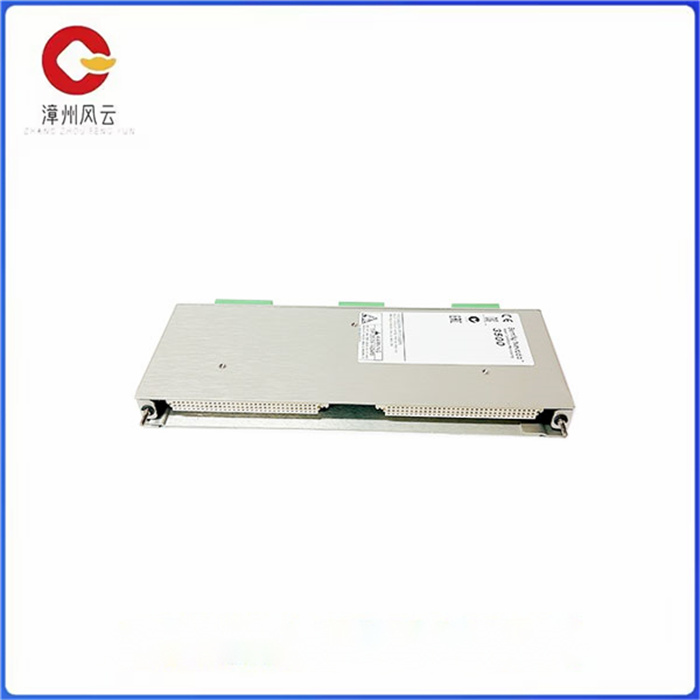

135137-01 该位置监视器是一个4通道装置

135137-01功能描述

位置监视器的主要功能是提供以下功能:

通过持续比较监控参数和预定义报警设定值来触发报警，从而保护机器。

操作和维护人员的重要机器知识

135137 -01功能

Bently Nevada 3500/45位置监视器有四个通道，可接受来自接近传感器、旋转位置传感器(RPT)、 DC线性可变差动变压器(AC LVDTs).交流线性

可蹉动变压器(交流LVDT)和旋转电位计的输入。

该监控器的主要功能是通过持续比较监控的参数和配置的报警设定值来驱动报警,并为操作和维护收集关键的机器信息，从而保护您的机器。

监视器在将输入与用户可编程的警报进行比较之前对其进行处理。监控通道成对编程，- -次最多可执行其中两种功能。

135137-01 该位置监视器是一个4通道装置

135137-01 Function Description

The main function of the location monitor is to provide the following functions:

Protect the machine by continuously comparing monitoring parameters and predefined alarm setpoints to trigger alarms.

Essential machine knowledge for operation and maintenance personnel

135137-01 Functions

The Bently Nevada 3500/45 position monitor has four channels and can accept input from proximity sensors, rotary position sensors (RPT), and DC linear Variable differential transformers (AC LVDTs). Ac linearity

Input of a vatable transformer (AC LVDT) and rotary potentiometer.

The main function of the monitor is to protect your machine by continuously comparing monitored parameters and configured alarm Settings to drive alarms and collect critical machine information for operation and maintenance.

The monitor processes the input before comparing it to a user-programmable alert. The monitoring channels are programmed in pairs and can perform up to two of these functions at a time.
