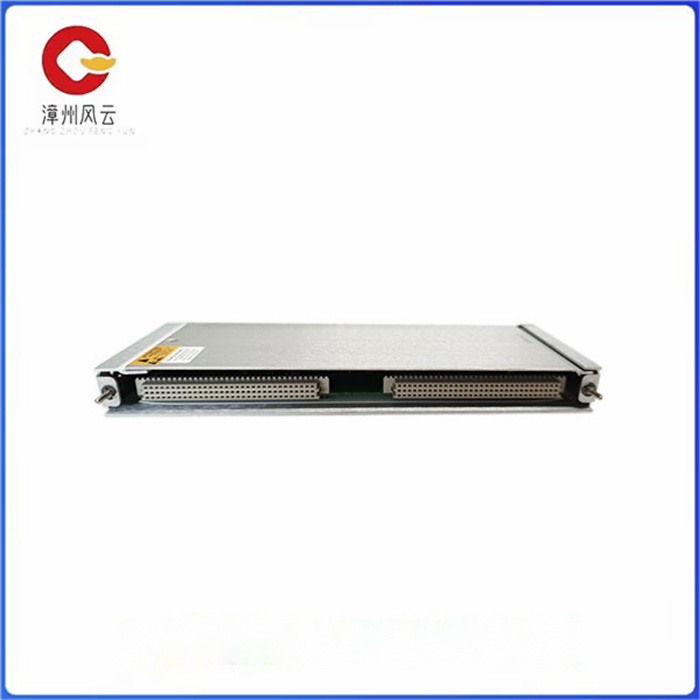

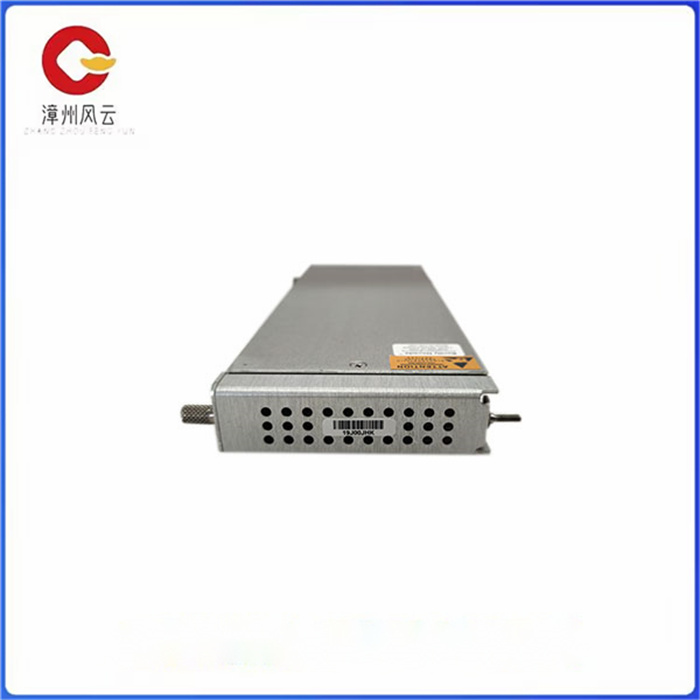

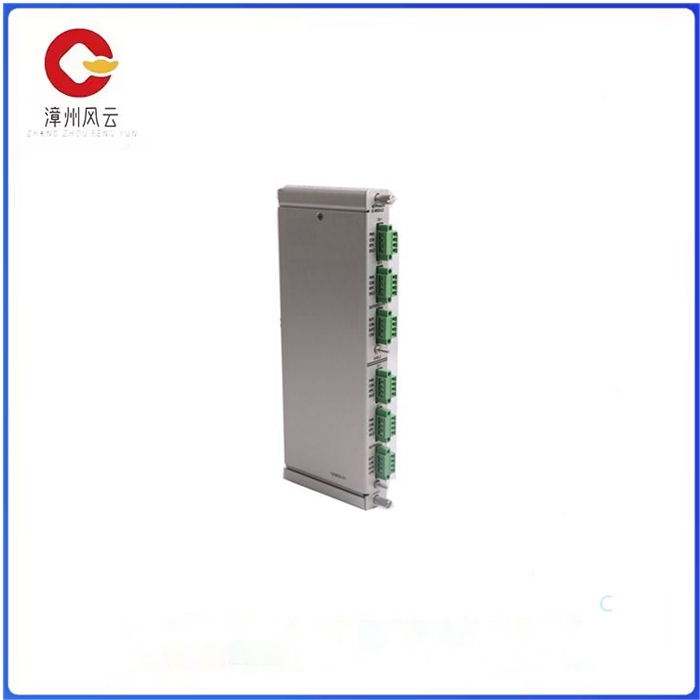

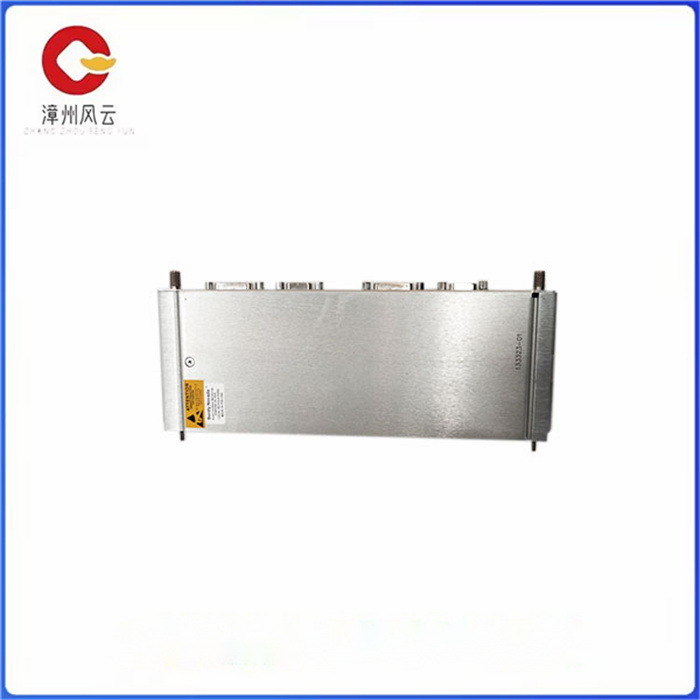

133323-01 通讯网关模块

133323-01通讯网关模块是一款功能强大的通讯设备，广泛应用于工业自动化和控制系统中。它作为连接外部设备和内部系统的桥梁，实现了数据的可靠传输和信息的有效交流。

该模块具有广泛的通信功能，支持以太网TCP/IP和串行（RS232/RS422/RS485）通信协议，可以与各种设备和系统进行无缝对接。它允许用户通过以太网与3500机架配置软件和数据采集软件进行通信，实现了对机架状态的实时监控和数据采集。

此外，133323-01通讯网关模块还具有高度的灵活性和可扩展性。它支持多个模块在同一框架内的安装，使得用户可以根据实际需求进行配置和扩展。这种设计不仅提高了系统的集成度，还降低了用户的维护成本。

在电源方面，该模块具有多种输入电压选项，以适应不同的工作环境和电源要求。它提供了全面的电源保护措施，包括过流、过压、过热等保护机制，确保模块在异常情况下能够安全稳定运行。

此外，为了避免接地回路，系统提供了单点接地线连接功能。用户可以根据实际情况调整接地开关的位置，以确保系统的接地安全。这种设计不仅提高了系统的可靠性，还降低了电磁干扰对通信质量的影响。

总的来说，133323-01通讯网关模块是一款功能全面、性能稳定的通讯设备，适用于各种工业自动化和控制系统。它能够有效地实现数据的传输和信息的交流，提高系统的整体性能和可靠性。

133323-01 通讯网关模块

133323-01 Communication Gateway module is a powerful communication equipment, widely used in industrial automation and control systems. As a bridge connecting external devices and internal systems, it realizes reliable transmission of data and effective exchange of information.

The module has a wide range of communication functions, supporting Ethernet TCP/IP and serial (RS232/RS422/RS485) communication protocols, and can be seamlessly interlinked with a variety of devices and systems. It allows users to communicate with 3500 rack configuration software and data acquisition software through Ethernet, and realizes real-time monitoring and data acquisition of rack status.

In addition, the 133323-01 communication gateway module also has a high degree of flexibility and scalability. It supports the installation of multiple modules in the same framework, so that users can configure and expand according to actual needs. This design not only improves the integration of the system, but also reduces the maintenance cost of the user.

In terms of power supply, the module has a variety of input voltage options to adapt to different working environments and power requirements. It provides comprehensive power protection measures, including overcurrent, overvoltage, overheating and other protection mechanisms, to ensure that the module can operate safely and stably under abnormal conditions.

In addition, in order to avoid ground loops, the system provides a single point ground wire connection. You can adjust the position of the grounding switch as required to ensure the grounding safety of the system. This design not only improves the reliability of the system, but also reduces the influence of electromagnetic interference on the communication quality.

Overall, the 133323-01 Communication gateway module is a full-featured, stable performance of the communication equipment, suitable for a variety of industrial automation and control systems. It can effectively realize data transmission and information exchange, improve the overall performance and reliability of the system.
