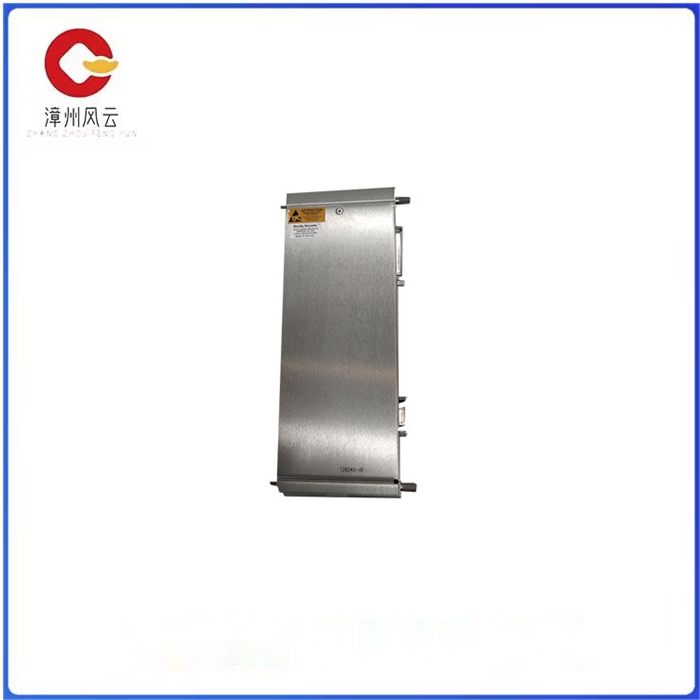

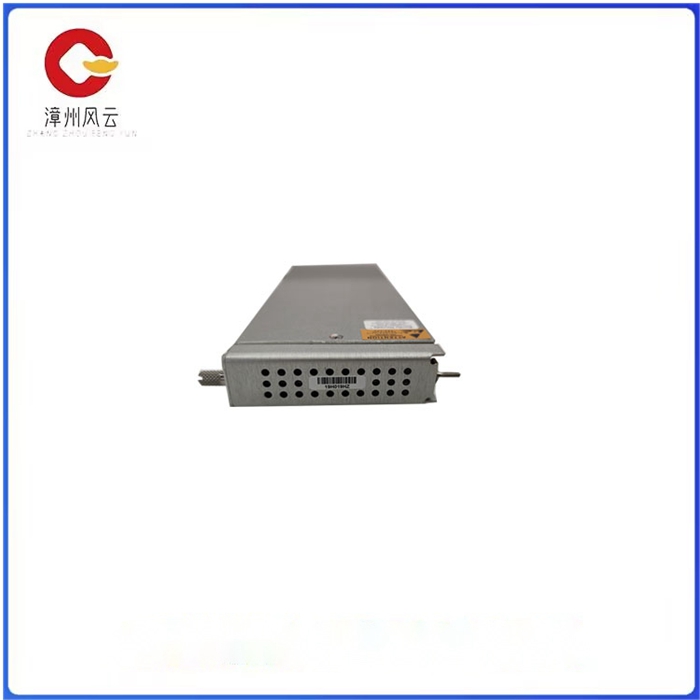

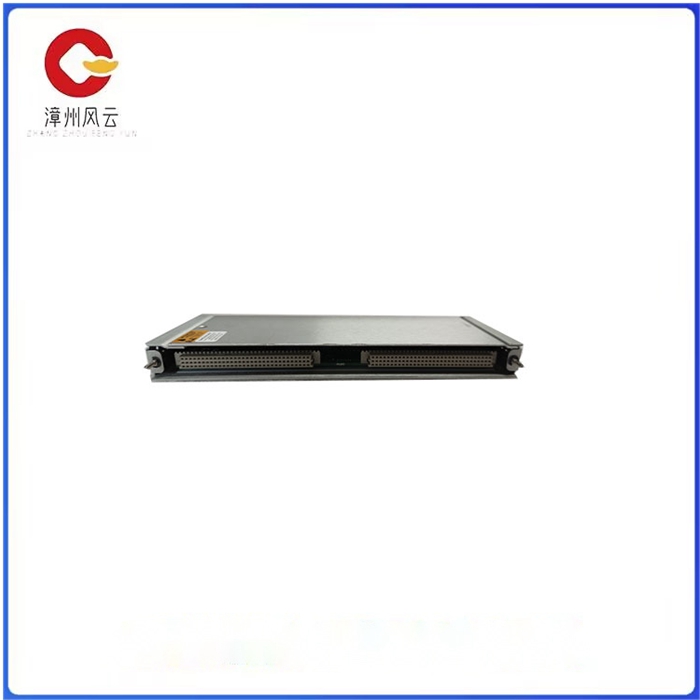

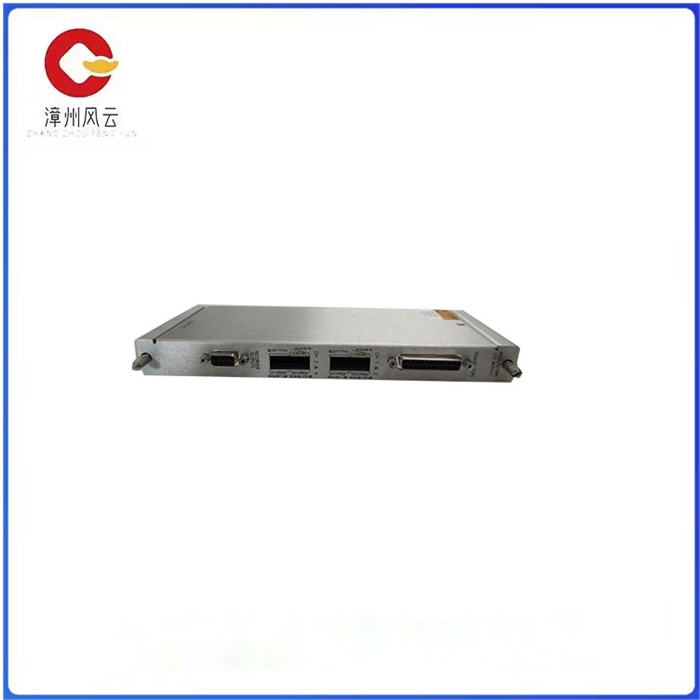

128240-01 前置器/地震监视器I/O模块

128240-01功能

前置器/地震监测器的主要功能是通过持续比较监测参数和配置的警报设定值，为操作和维护人员提供警报和重要的机器信息，从而为机器提供保护。

根据配置的不同，每个通道通常会调理其输入信号，以产生各种称为静态值的参数。您可以为每个活动静态值设置报警和危险设定点，也可以为任意两个活动静态值设置报警和危险设定点。

传感器类型

地震探测器。Prox/Accel和Velomitor受支持，但不推荐使用。

特征

规模:高x宽x深- 241.3毫米x 24.4毫米x 99.1毫米(9.50英寸x 0.96英寸x 3.90英寸)

重量:0.20千克(0.44磅)

机架空间要求:1个全高后插槽

环境限制

储存温度:-40摄氏度至+85摄氏度

湿度:95%，非冷凝

警告

警报设定点

使用框架配置软件为监视器测量的任何值设置警报级别，并为监视器测量的任何两个值设置危险设定点。对于每个测量值，警报可以设置为满量程的0-100%。当满量程范围超过传感器范围时，传感器范围会限制设定值。

128240-01 前置器/地震监视器I/O模块

128240-01 Function

The primary function of the preprocessor/seismic monitor is to provide the operator and maintenance personnel with alerts and important machine information to protect the machine by continuously comparing the alarm Settings of the monitoring parameters and configurations.

Depending on the configuration, each channel typically adjusts its input signal to produce a variety of parameters called static values. You can set alarm and danger setpoints for each active static value, or for any two active static values.

Sensor type

An earthquake detector. Prox/Accel and Velomitor are supported but not recommended.

trait

Size: H x W x D - 241.3 mm x 24.4 mm x 99.1 mm (9.50 inches x 0.96 inches x 3.90 inches)

Weight :0.20 kg (0.44 lb)

Rack space: One full-height rear slot

Environmental restriction

Storage temperature :-40 ℃ to +85 ℃

Humidity :95%, non-condensing

warn

Alarm set point

Use the framework configuration software to set an alert level for any value measured by the monitor and a danger set point for any two values measured by the monitor. For each measurement, the alarm can be set to 0-100% of full scale. When the full scale range exceeds the sensor range, the sensor range limits the set value.
