3500/32 125720-01 继电器模块 为前置器换能器供电

3500/32 125720-01 继电器模块 为前置器换能器供电

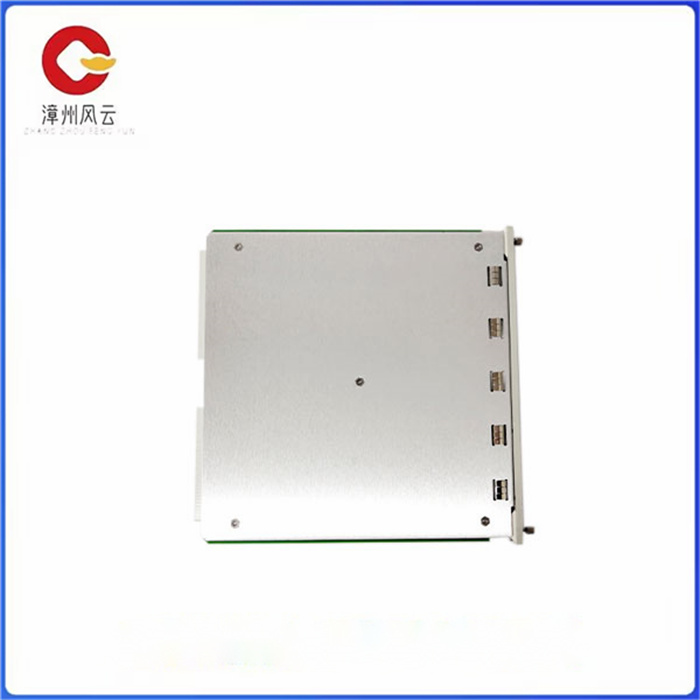

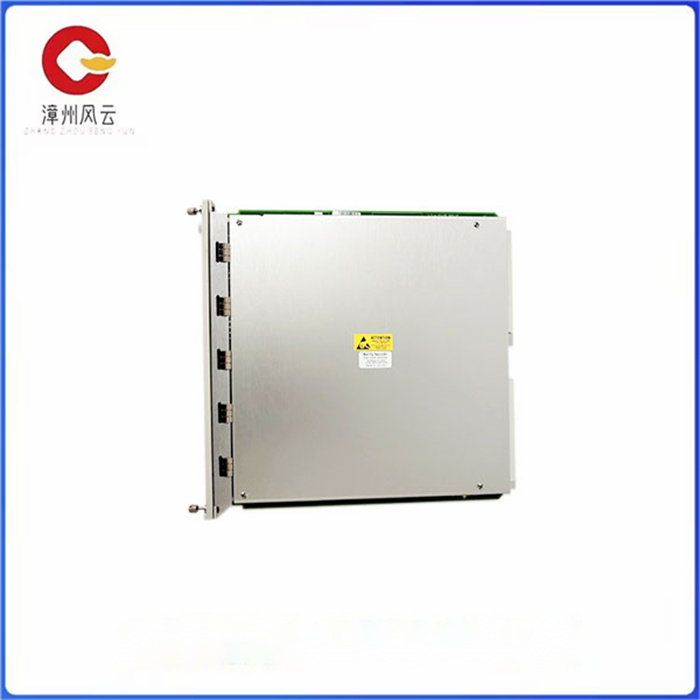

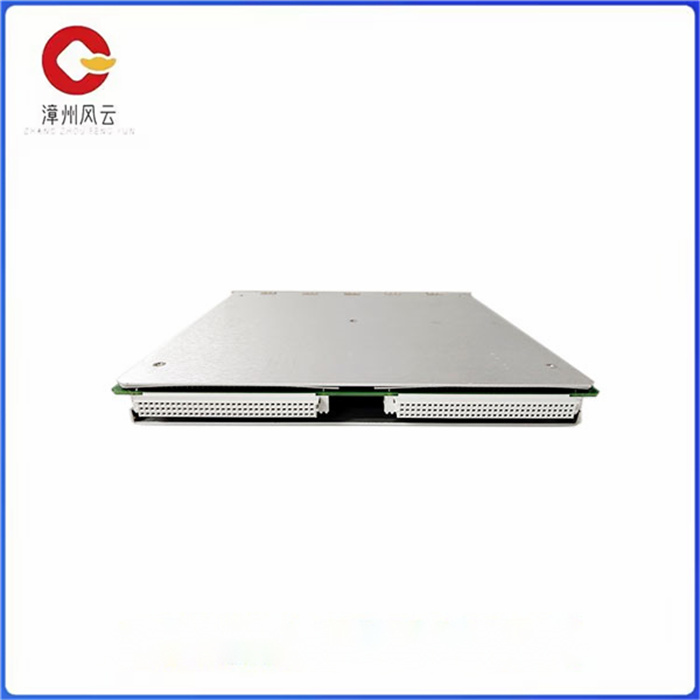

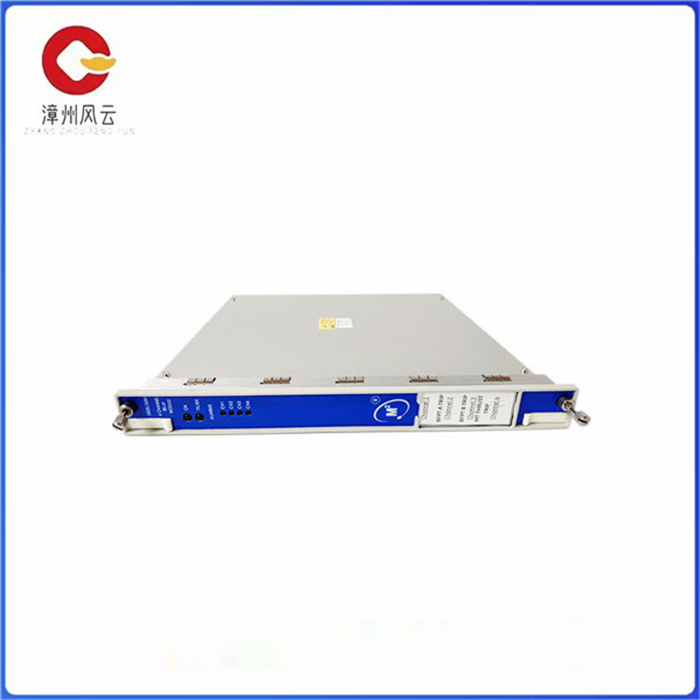

4通道继电器模块是一个全高度的模块，它可提供四个继电器的输出量。任何数量的4通道继电器模块，都可放置在框架接口模块右边的任一个槽位里。

4通道继电器模块的每个输出都可以独立编程，以执行所需要的表决逻辑。

每个应用在4通道继电器模块上的继电器，都具有“报警驱动逻辑”。

该报警驱动逻辑可用“与门”和“或门”逻辑编程，并可利用框架中的任何监测器通道或任何监测器通道的组合所提供的报警输入(警告或危险)。该报警驱动逻辑应用框架组态软件编程，可满足应用中的特殊需要。

3500/32 125720-01 继电器模块 为前置器换能器供电

The 4-channel relay module is a full-height module that provides the output of four relays. Any number of 4-channel relay modules can be placed in any slot on the right of the frame interface module.

Each output of the 4-channel relay module can be programmed independently to perform the required voting logic.

Each relay applied to the 4-channel relay module has an "alarm drive logic".

The alarm driver logic can be programmed with and Gate and or Gate logic and can take advantage of the alarm inputs (warning or danger) provided by any monitor channel in the frame or a combination of any monitor channel. The alarm driver logic application framework configuration software programming can meet the special needs of applications.
