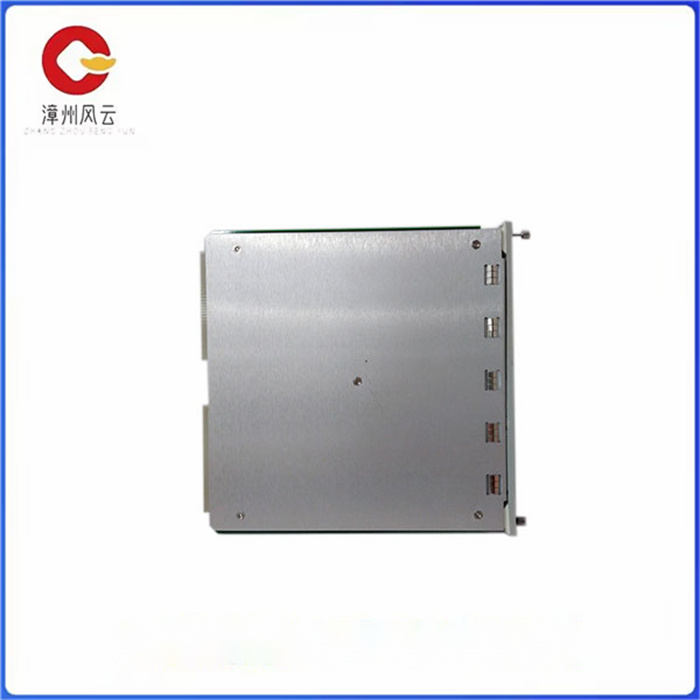

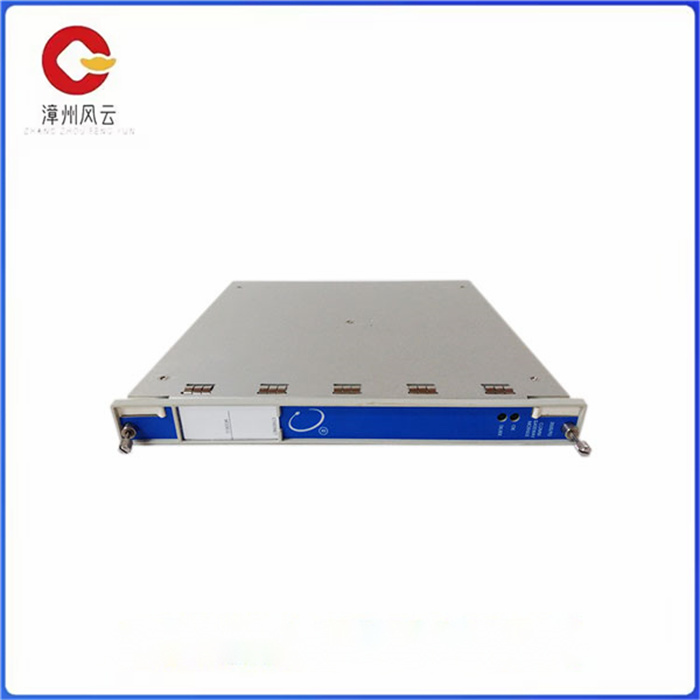

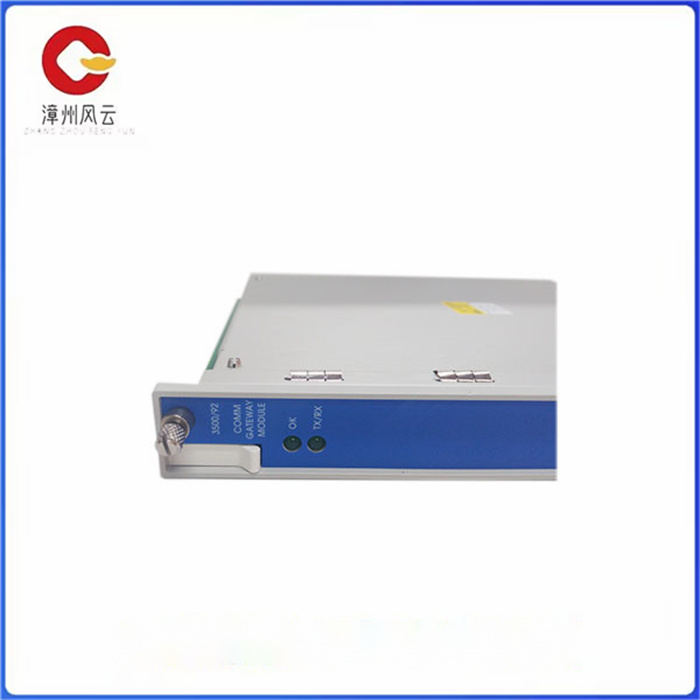

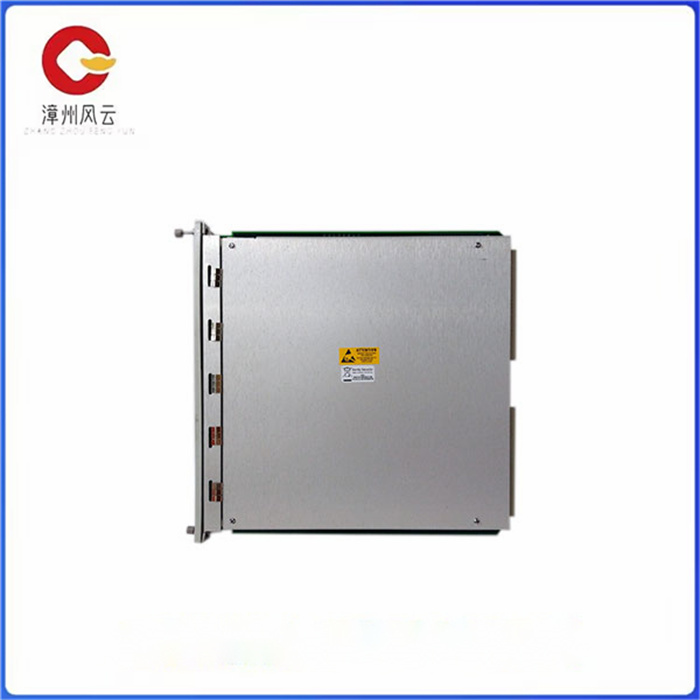

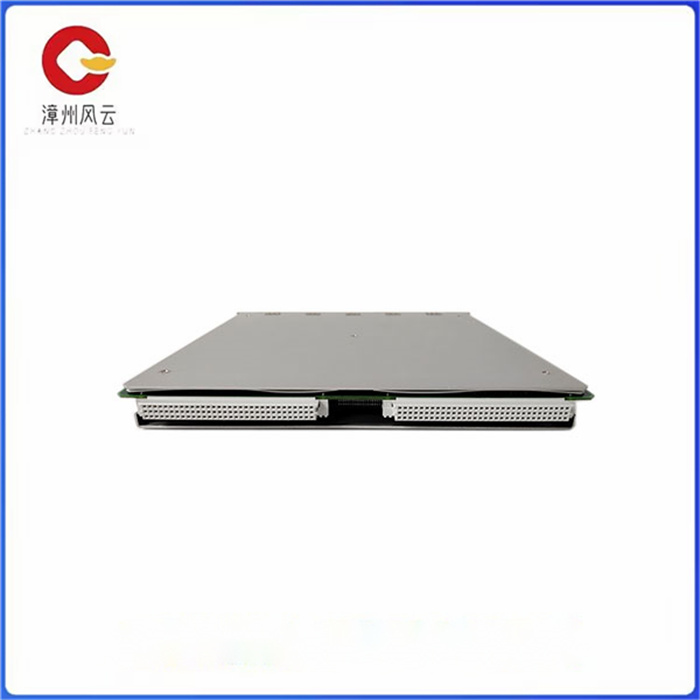

3500/92 框架接口 通信网关模块

3500/92 框架接口 通信网关模块

3500/92通信网关模块提供了广泛的  所有机架监控值和状态的通信能力  与过程控制和使用两者的其他自动化系统集成  以太网TCP/IP和串行(RS232/RS422/RS485)通信能力。它  还允许与3500机架配置软件进行以太网通信  以及数据采集软件。

支持的协议包括:  •Modicon®Modbus®协议(通过串行通信)  Modbus/TCP协议(用于TCP/IP的串行Modbus的变体)  以太网通信)

•专有的Bently Nevada协议(用于与3500 Rack通信  组态及数据采集软件包)  到3500/92的以太网连接是10BASE-T星型的RJ45连接  配置以太网网络。  3500/92支持通信接口、通信协议、  以及除主功能外的其他3,500 /90原始版本的功能  value Modbus寄存器。

3500/92现在有一个可配置的Modbus寄存器  方法最初处理的相同功能  Modbus寄存器的主值。

3500/92 框架接口 通信网关模块

The 3500/92 Communication Gateway module provides a wide range of all rack monitoring values and status communication capabilities with process control and other automation systems using both integrated Ethernet TCP/IP and serial (RS232 / RS422 / RS485) communication capabilities. It also allows Ethernet communication with 3500 rack configuration software as well as data acquisition software.

Supported protocols include :• Modbus® protocol (via serial communication)Modbus/TCP protocol (variant of Serial Modbus for TCP/IP) Ethernet communication

• The proprietary Bentley Nevada Protocol (for 3500-year-old configuration and data acquisition packages with rack communication) to 3500/92 Ethernet connection is a 10 base-t star RJ45 connection configuration Ethernet network. The 3500/92 supports communication interfaces, communication protocols, and functional value Modbus registers of the original version of the 3500/90 in addition to the main function.

3500/92 now has a configurable Modbus register method that originally handles the same function as the Modbus register's primary value.
