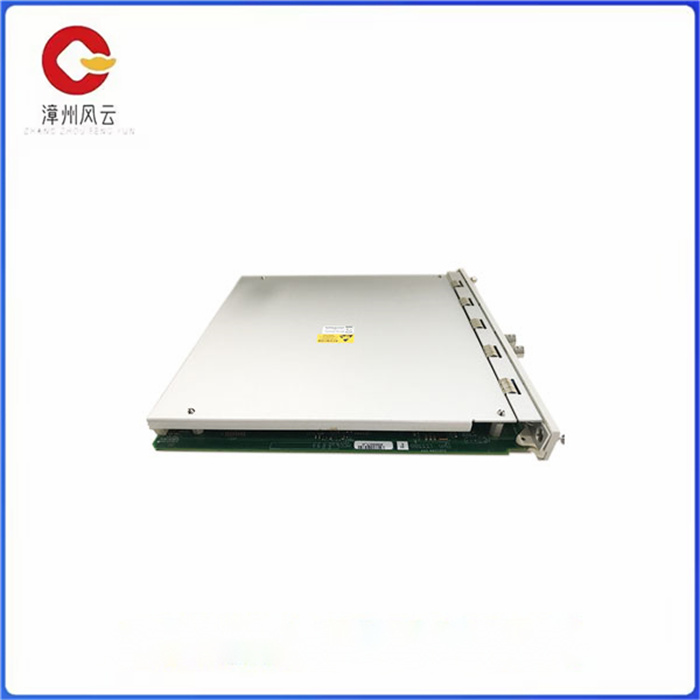

Bently 3500/50-01-00-01 汽轮机转速和反转测量模块

Bently 3500/50-01-00-01 汽轮机转速和反转测量模块

本特利3500/50-01-00-01汽轮机转速和反转测量模块属于本特利.内华达(Bently Nevada)公司3500产品，本特利3500是旋转机械在线状态监测和机械保护而设计的振动监测系统，涉及用户包括电力、石化、造纸、钢铁、机械和设备维修。本特利3500系统适用于压缩机、风机、制氧机、水泵、电机、汽轮机等机械的工程要求。

其中汽轮机安全监视及保护系统(TSI)是比较典型的，可在线监测系统可连续测量和监测旋转机械和往复式机械的运转状态，对预防不平衡、不对中、轴裂痕和轴承损坏等预诊断提供重要的数据资料。本特利3500/50M转速表模块是一个双通道模块，它接收来自电涡流传感器或磁阻式传感器的脉冲输入信号，利用该输入信号来驱动报警。此外，3500/50转速表模块还可被组态为框架中的监测器模块提供键相信号。通过35000框架组态软件，3500/50M转速表模块可编程来执行以下功能：转子转速，转子加速度，零转速和反向转动。

本特利3500/50-01-00-01汽轮机转速和反转测量模块为本特利3500系统提供连续、在线监测功能，符合美国石油协会API670标准对该类系统的要求。该系统高度模块化的设计包括必选项：框架3500/05 ; 电源3500/15;框架接口模块3500/22; 3500/01框架组态软件；振动监测器模块3500/42M等。特点 :1、数字和模拟通讯；2、高度灵活的显示选项；3、软件可组态；4、更高的集成度/ 容错能力；5报警/事件列表；6、API670 标准；7、所有的模块和电源（当使用冗余电源时）可以在带电情况下在框架中插拔，8、进的数据类型3500系统用于连续监测应用于多种行业的旋转和往复机械，尤其适用于要求极高可靠性和可用性的自动停机机械保护应用中。

Bently 3500/50-01-00-01 汽轮机转速和反转测量模块

Bentley 3500/50-01-00-01 Turbine speed and inversion measurement modules belong to Bentley. Bently Nevada 3500 products, Bentley 3500 is a vibration monitoring system designed for online condition monitoring and mechanical protection of rotating machinery for users including power, petrochemical, paper, steel, machinery and equipment maintenance. Bentley 3500 system is suitable for compressor, fan, oxygen generator, water pump, motor, steam turbine and other mechanical engineering requirements.

Among them, the turbine safety monitoring and protection system (TSI) is more typical. The on-line monitoring system can continuously measure and monitor the running state of rotating machinery and reciprocating machinery, and provide important data for the pre-diagnosis of preventing unbalance, misalignment, shaft cracks and bearing damage. The Bentley 3500/50M tachometer module is a dual channel module that receives a pulse input signal from an eddy current sensor or a reluctance sensor and uses this input signal to drive an alarm. In addition, the 3500/50 tachometer module can be configured to provide a key trust for the monitor module in the frame. With the 35000 frame configuration software, the 3500/50M tachometer module can be programmed to perform the following functions: rotor speed, rotor acceleration, zero speed and reverse rotation.

The Bentley 3500/50-01-00-01 Turbine Speed and inversion measurement module provides continuous, in-line monitoring of the Bentley 3500 system and complies with API670 requirements for such systems. The system's highly modular design includes mandatory options: Frame 3500/05; Power supply 3500/15; Frame interface module 3500/22; 3500/01 Framework configuration software; Vibration monitor module 3500/42M etc. Features :1, digital and analog communication; 2, highly flexible display options; 3, the software can be configured; 4, higher integration/fault tolerance; 5 Alarm/event list; 6. API670 standard; 7, all modules and power supplies (when using redundant power supplies) can be plugged in and out of the frame under live conditions, 8, the data type 3500 system is used for continuous monitoring of rotating and repeating machinery used in a variety of industries, especially for automatic shutdown machine protection applications that require extremely high reliability and availability.
