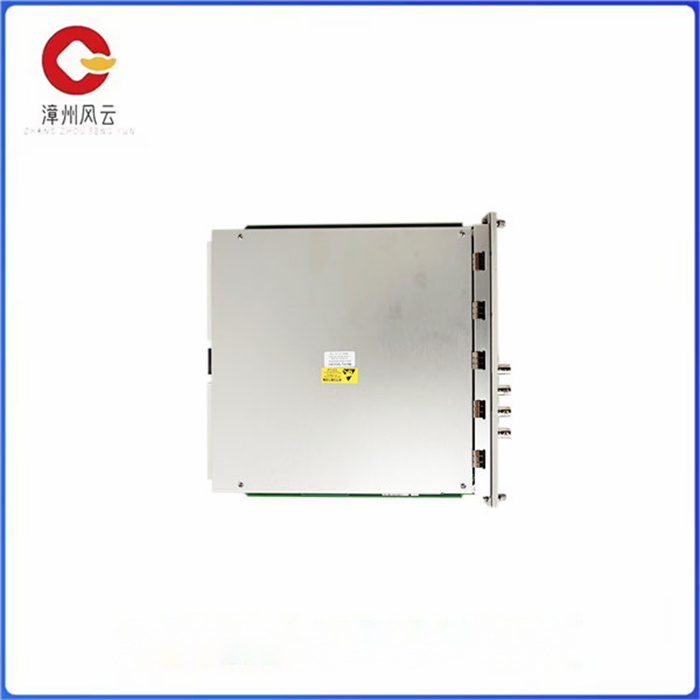

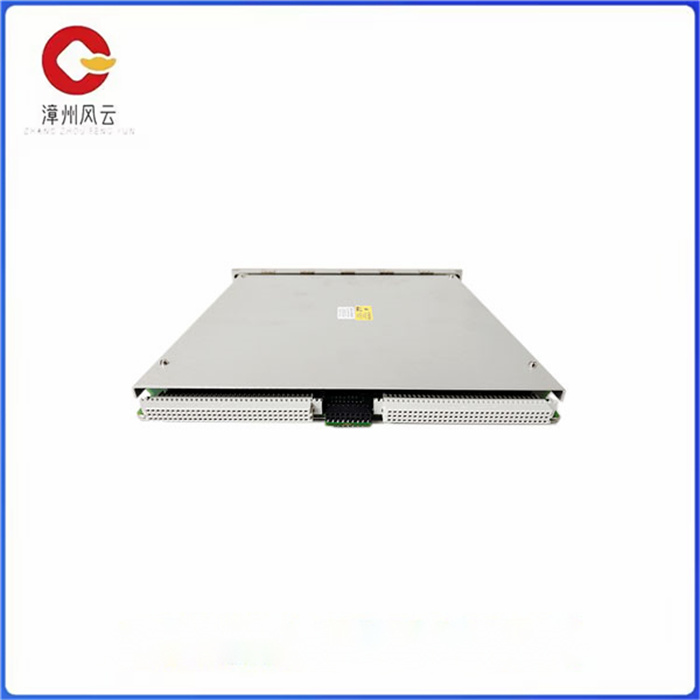

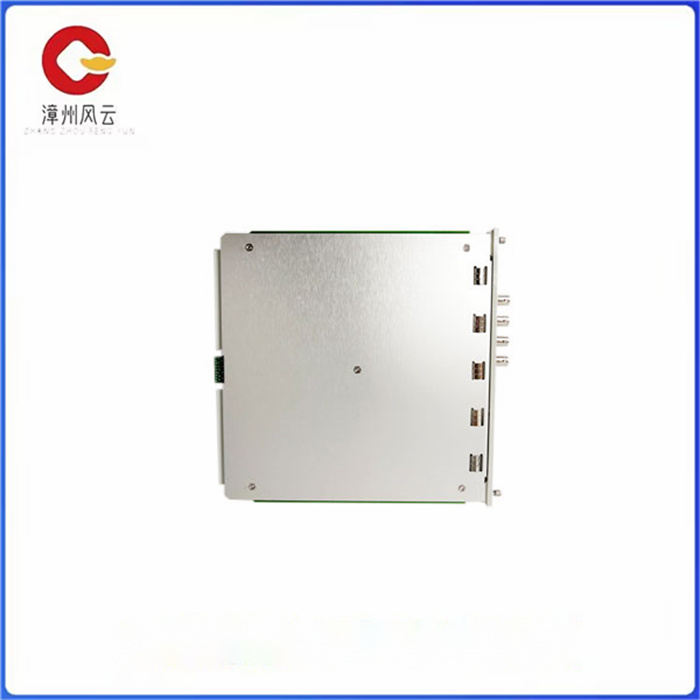

350042M-176449-02 位移/速度加速度监测器

350042M-176449-02 位移/速度加速度监测器

BENTLY 3500/40M是4通道位移监测器，接收本特利位移传感器的输入，对信号进行处理后生成各种振动和位移测量量，并将处理后的信号与用户可编程的报警设置点进行比较。可以使用3500 框架组态软件对3500/40M 的每个通道进行组态，使其具有如下功能：

径向振动 ;

轴向位移 ;

差胀 ;

轴偏心

灵敏度

可组态的4通道监测器模块，用于径向振动、轴向位移、偏心、REBAM  和差胀测量。只接收电涡流传感器输入类型。具有TüV 认证 。

可组态的4通道监测器模块，除了具有3500/40M的所有功能外，还可以接收速度、 加速度和双探头(速度和位移)输入类型及其相关的信号调节，如滤波和积分。它还能进行微分信号处理，从轴相对振动中提取机壳振动信号，提供用于某些大型燃气和蒸汽轮机的轴绝对测量信息。

350042M-176449-02 位移/速度加速度监测器

The BENTLY 3500/40M is a 4-channel displacement monitor that receives input from Bentley's displacement sensor, processes the signal to generate various vibration and displacement measurements, and compares the processed signal with a user-programmable alarm setting point. Each channel of 3500/40M can be configured using the 3500 framework configuration software so that it has the following functions:

Radial vibration;

Axial displacement;

Differential expansion;

Shaft eccentricity

sensitivity

Configurable 4-channel monitor module for radial vibration, axial displacement, eccentricity, REBAM and differential expansion measurements. Only eddy current sensor input types are accepted. With TuV certification.

The configurable 4-channel monitor module, in addition to all functions of 3500/40M, can also receive speed, acceleration and dual probe (speed and displacement) input types and their associated signal adjustments such as filtering and integration. It also performs differential signal processing to extract the housing vibration signal from the relative shaft vibration, providing absolute shaft measurement information for some large gas and steam turbines.
