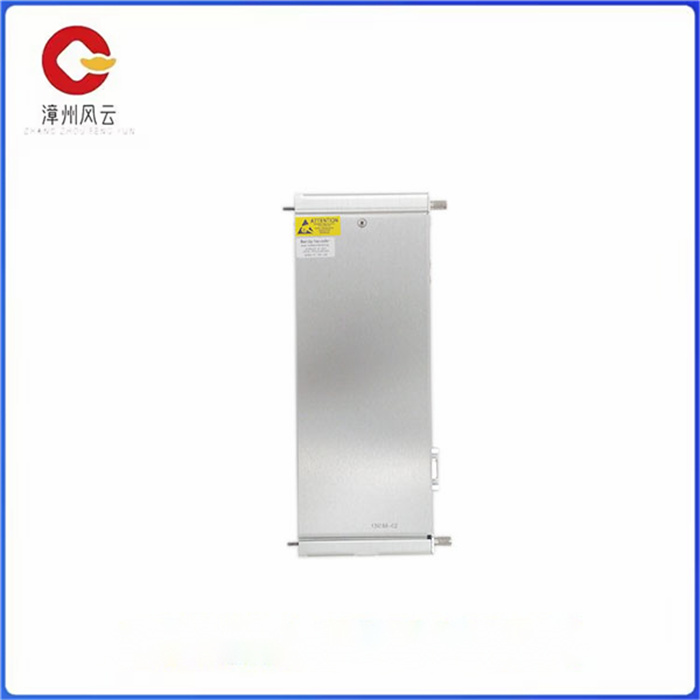

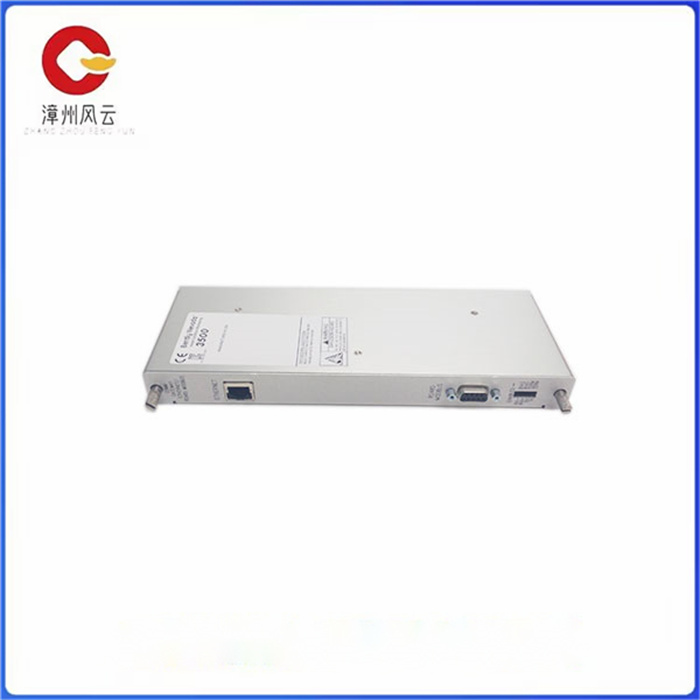

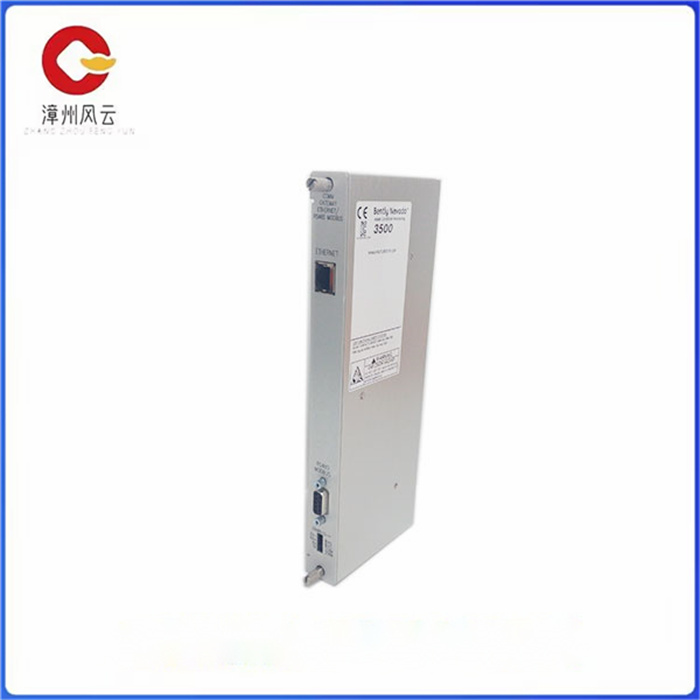

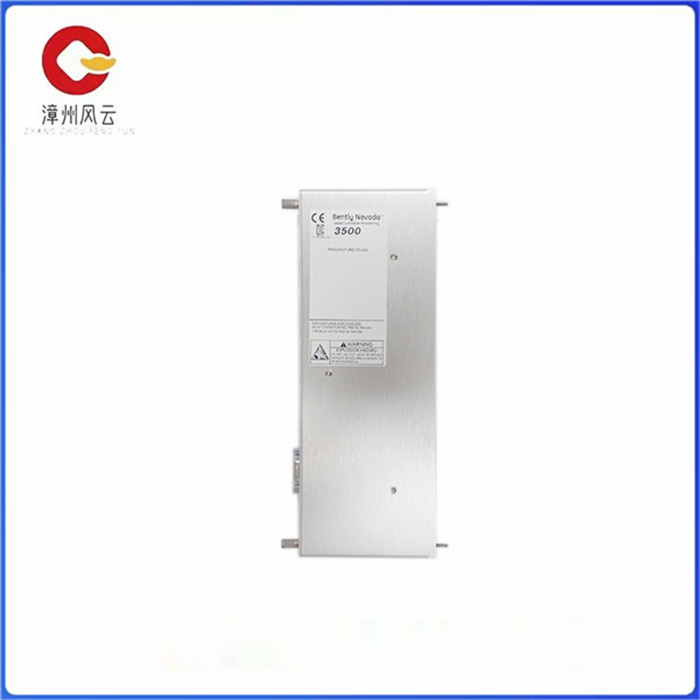

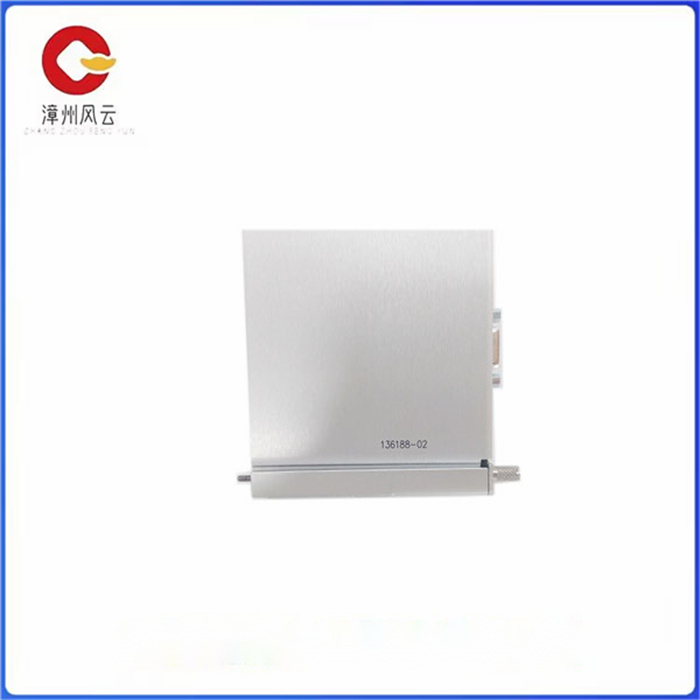

BENTLEY 136188-02 以太网/RS485 ModbusI/O 模块

BENTLEY 136188-02 以太网/RS485 ModbusI/O 模块

详细描述： GE/本特利136483-01 以太网/RS485 ModbusI/O 模块

3500/92 通信网关模块为所有受监控的机架提供广泛的通信能力

使用以太网 TCP/IP 与过程控制和其他自动化系统集成的值和状态

和串行 (RS232/RS422/RS485) 通信功能。它还允许与 3500 进行以太网通信

机架配置软件和数据采集软件。

支持的协议包括：

l Modicon Modbus协议（通过串口通讯）

l Modbus/TCP协议（串行Modbus的一种变体，用于TCP/IP以太网通信）

l 专有的 Bently Nevada 协议（用于与 3500 Rack Configuration 和

数据采集软件包）

BENTLY 125800-01 键相模块 单半高2通道键相量卡和1/0模块

BENTLY 125800-02 I/O 模块

BENTLY 125840-01 交流电源模块

BENTLY 125840-01 106M1081-01

BENTLY 125840-02 电压电源I/P模块

BENTLY 126615-01 输入/输出模块

BENTLY 126632-01 TMR前置器/地震输入/输出

BENTLY 126648-02 隔离键相输入/输出模块

BENTLEY 136188-02 以太网/RS485 ModbusI/O 模块

Details: GE/ Bentley 136483-01 Ethernet /RS485 ModbusI/O module

The 3500/92 Communication Gateway module provides extensive communication capabilities for all monitored racks

Values and states of integration with process control and other automation systems using Ethernet TCP/IP

And serial (RS232/RS422/RS485) communication function. It also allows Ethernet communication with the 3500

Rack configuration software and data acquisition software.

Supported protocols include:

l Modicon Modbus protocol (communication via serial port)

l Modbus/TCP protocol (a variant of serial Modbus for TCP/IP Ethernet communication)

Proprietary Bently Nevada protocol (for use with 3500 Rack Configuration and

Data acquisition package)

BENTLY 125800-01 Key phase module Single half height 2-channel key phasor card and 1/0 module
