133292-01低压直流电源模块 线路板所构成的小型化电路

133292-01低压直流电源模块 线路板所构成的小型化电路

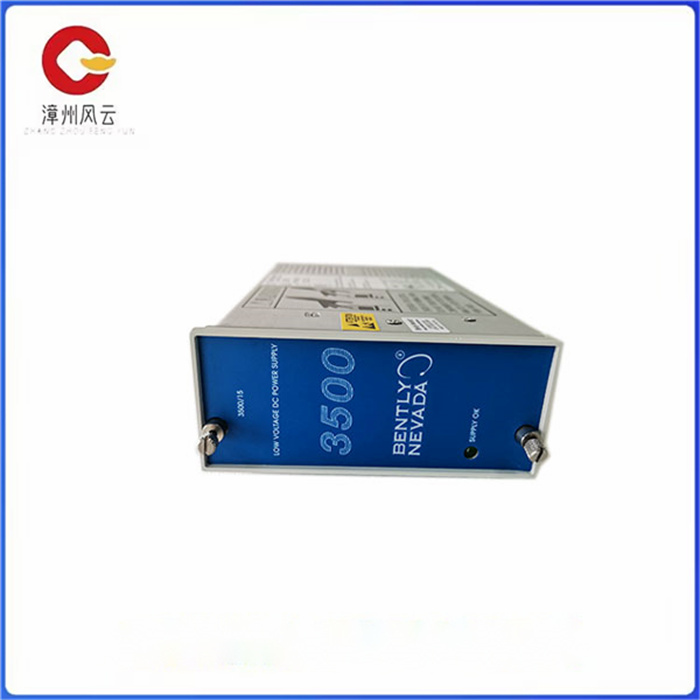

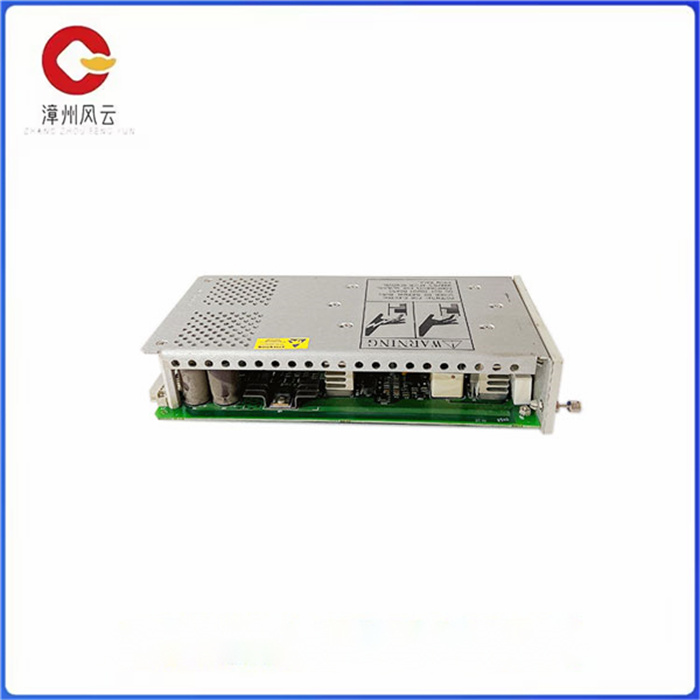

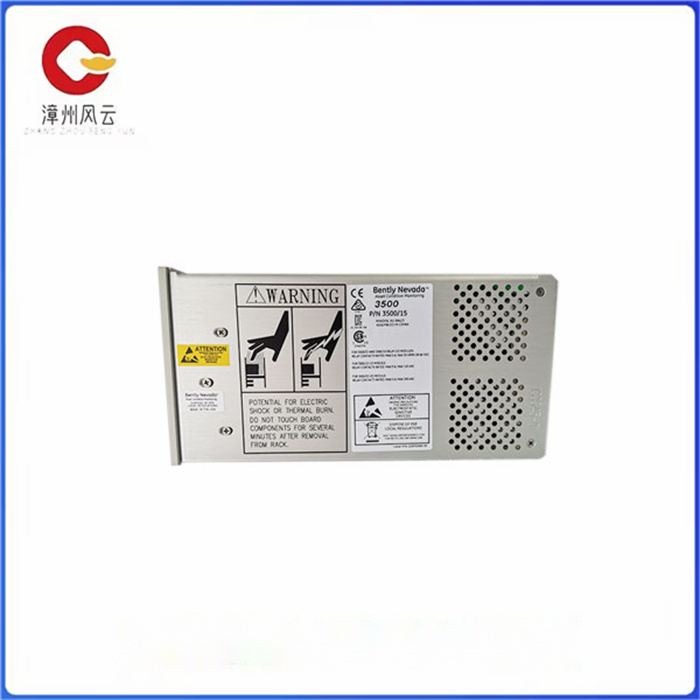

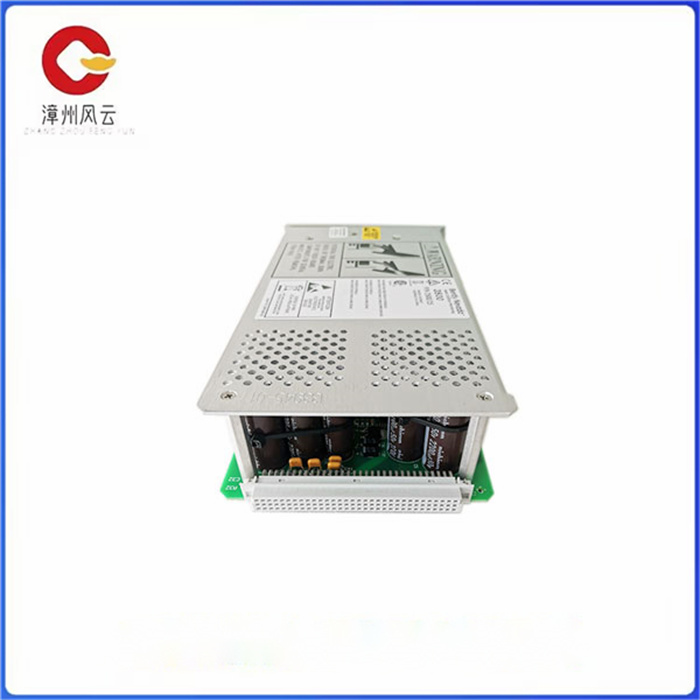

133292-01是由本特利内华达公司开发的低压DC电源输入模块。该组件是3500/15电源模块中的一个。输入电压额定值为88至140 Vdc.133292-01功能3500/15系列电源安装在机架左侧设计的插槽中。

3500机架可以容纳-个或两个电源(交流和/或直流的任意组合)，任电源都能为整个机架供电。如果安装了二个电源，它将作为主电源的备用电源。当两个电源安装在一个机架中时，下面的电源作为主电源，上面的电源作为备用电源。只要安装了二个电源，移除或插入任何-一个电源模块都不会中断机架操作。

3500电源接受各种输入电压，并将其转换为其他3500模块可以使用的电压。对于350O系列机械保护系统，有三种电源版本可供选择:1。交流电源，2。高压直流电源3。

133292-01低压直流电源模块 线路板所构成的小型化电路

The 133292-01 is a low-voltage DC power input module developed by Bentley Nevada. This component is one of the 3500/15 power modules. Input voltage ratings range from 88 to 140 Vdc.133292-01 Features The 3500/15 series power supply is installed in a slot designed on the left side of the rack.

The 3500 rack can accommodate one or two power supplies (any combination of AC and/or DC), either of which can power the entire rack. If two power supplies are installed, it will act as a backup to the main power supply. When two power supplies are installed in a rack, the lower power supply acts as the primary power supply and the upper power supply acts as the standby power supply. As long as two power supplies are installed, removing or inserting either power module will not interrupt rack operation.

The 3500 power supply accepts a variety of input voltages and converts them to voltages that other 3500 modules can use. For the 350O series mechanical protection system, three power supply versions are available :1. Ac power supply, 2. High voltage DC power supply 3.
