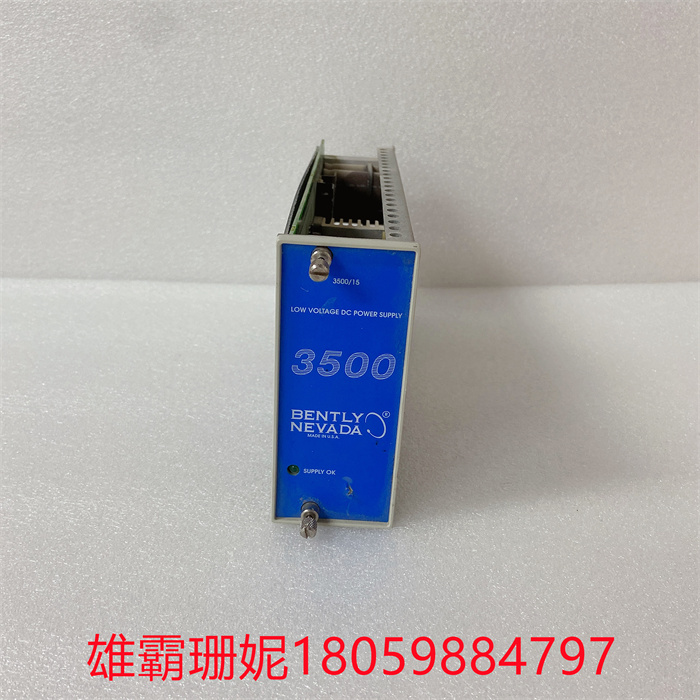

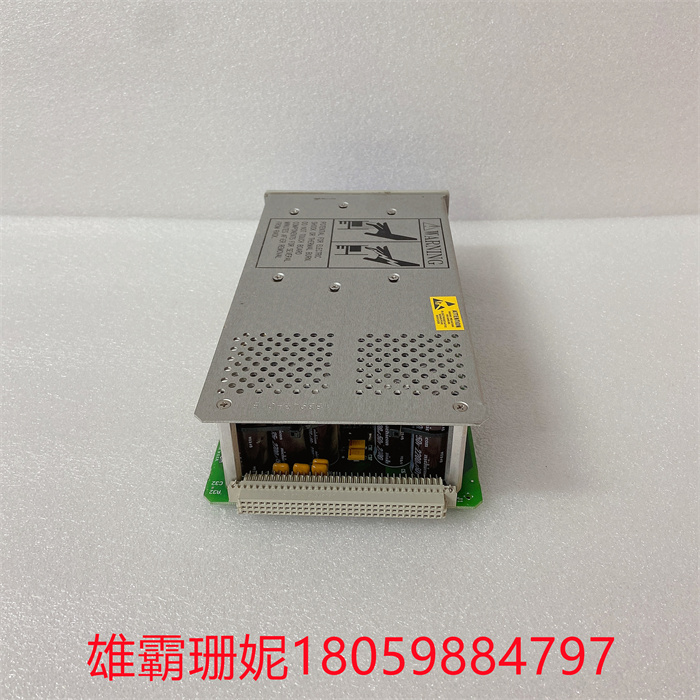

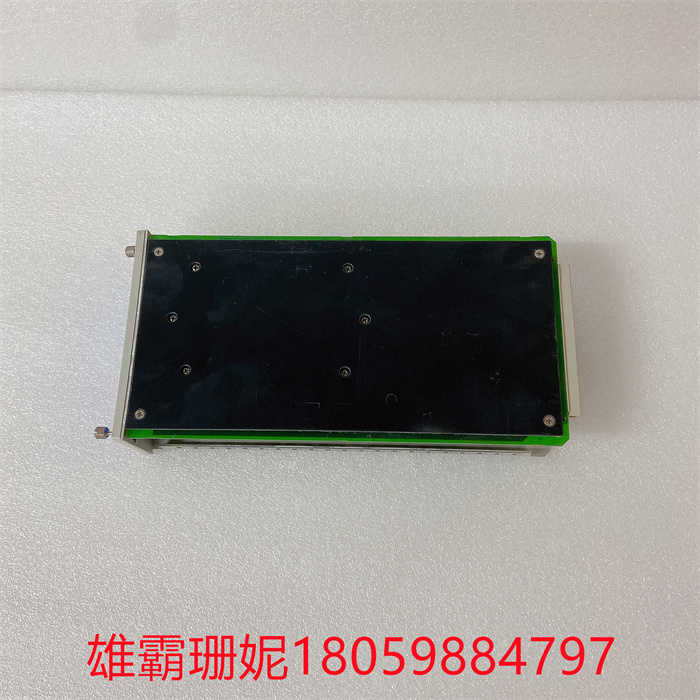

Bently 3500/15 电源模块 本特利 3500-15 133292-01

Bently 3500/15 电源模块 本特利 3500-15 133292-01

使用3500系统机架安装所有3500监控模块和电源。该机架允许您将3500个模块放置在彼此附近，使它们能够轻松通信，并安装必要的电源以分配每个模块的电源。电源和机架接口模块必须安装在机柜的左侧。其余14个机架位置(7个机架位置为迷你机架)可用于任何模块组合。

bently nevada 3500本特利模块用于汽轮机、压缩机、风机、水泵、磨煤机、齿轮箱、电机等大中型旋转机械的振动监测,广泛应用于钢铁、电力、冶金、化工、石化等很多行业。

3500/ 22m暂态数据接口(TDI)是3500监控系统与兼容软件(system 1状态监测与诊断软件和3500系统组态软件)之间的接口。TDI结合了3500/20机架接口模块(RIM)的功能和通信处理器(如TDXnet)的数据采集能力。

在3500机柜中，TDI安装在靠近电源的槽位。它与M系列监视器(3500/40M, 3500/42M等)接口，连续采集稳态和瞬态动态(波形)数据，并通过以太网链路将这些数据传递给主机软件。有关更多信息，请参阅本文档末尾的兼容性部分。

Install all 3500 monitoring modules and power supplies using the 3500 system rack. The rack allows you to place 3,500 modules near each other so they can easily communicate and install the necessary power to distribute power to each module. The power supply and rack interface modules must be installed on the left side of the cabinet. The remaining 14 rack locations (7 of which are mini racks) can be used for any module combination.

The bently nevada 3500 Bentley module is used for vibration monitoring of large and medium-sized rotating machinery such as steam turbine, compressor, fan, water pump, mill, gearbox, motor, etc. It is widely used in many industries such as steel, electric power, metallurgy, chemical industry, petrochemical industry, etc.

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (system 1 condition monitoring and diagnosis software and 3500 system configuration software). The TDI combines the capabilities of a 3500/20 rack interface module (RIM) with the data acquisition capabilities of a communications processor such as TDXnet.
