BENTLY本特利3500/25 125792-01增强型键相模块

BENTLY本特利3500/25 125792-01增强型键相模块

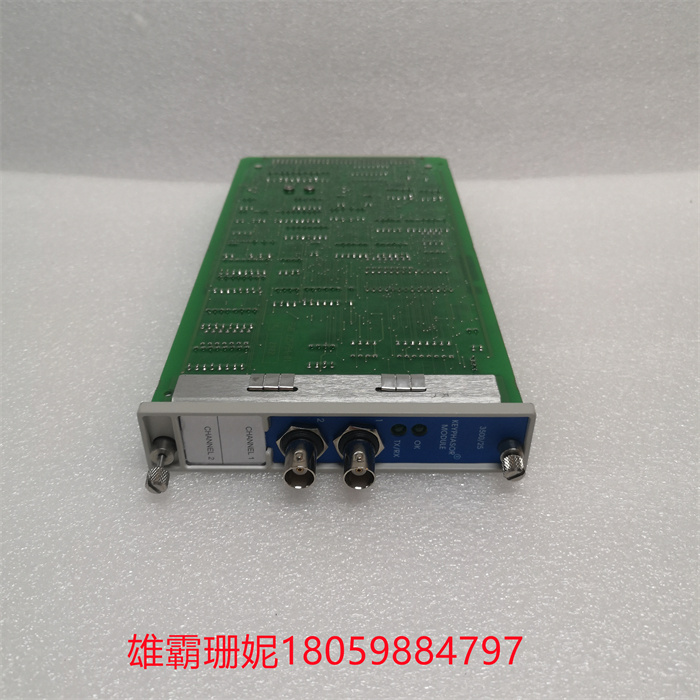

3500/25增强型键相器模块为半高双通道模块用于向3500机架中的监测器模块提供键相信号。这个模块接收来自接近探测器或磁性拾取器的输入信号将信号转换为数字键相器信号，指示轴上的键相器标记与键相器传感器一致。

3500机械保护系统最多可接受四个键相器信号正常配置和最多8个键相器信号配置增强型键相器模块是一种改进的3500系统模块。它提供在之前的设计基础上扩展了键相器信号处理能力同时在形状、贴合度和与现有键相器模块一起工作，以便在传统系统中使用。

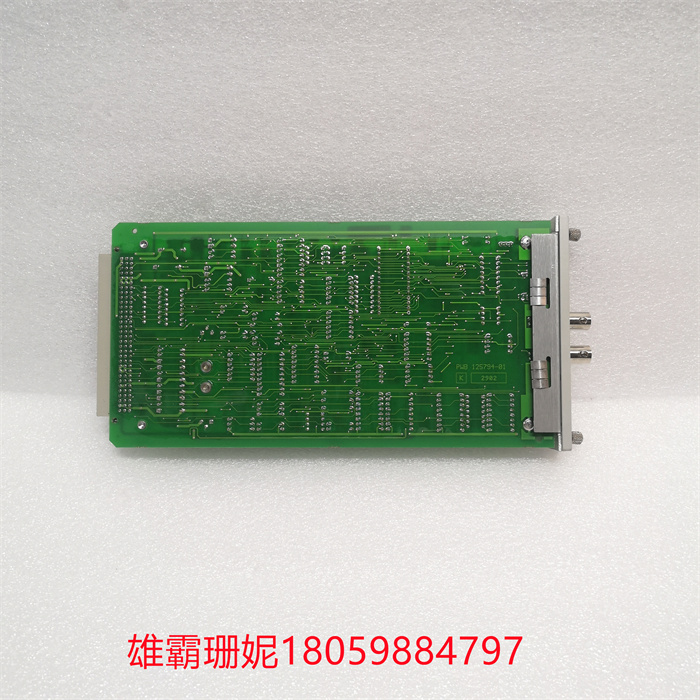

这个键相器模块PWA 125792-01被更新的完全取代149369-01模块。当三模块冗余（TMR）需要系统键相器输入时3500系统应采用两个键相模块。在这个配置模块并行工作，以提供主和至机架中其他模块的二次键相器信号。

he 3500/25 Enhanced Key phaser module is a half-height dual-channel module used to provide key trust numbers to the monitor module in the rack 3500. This module receives an input signal from a proximity detector or magnetic picker and converts the signal into a digital key phaser signal. The key phaser mark on the indicating shaft corresponds to the key phaser sensor.

The 3500 Mechanical protection system accepts up to four phaser signals in normal configurations and up to eight phaser signals in configurations. The Enhanced Phaser module is an improved 3500 system module. It offers extended phase signal processing capabilities over previous designs while working in shape, fit and with existing phase modules for use in legacy systems.

This phaser module PWA 125792-01 was updated to completely replace module 149369-01. When three-module redundancy (TMR) requires system key input, the 3500 system should use two key phase modules. This configuration module works in parallel to provide primary and secondary keying signals to other modules in the rack.
