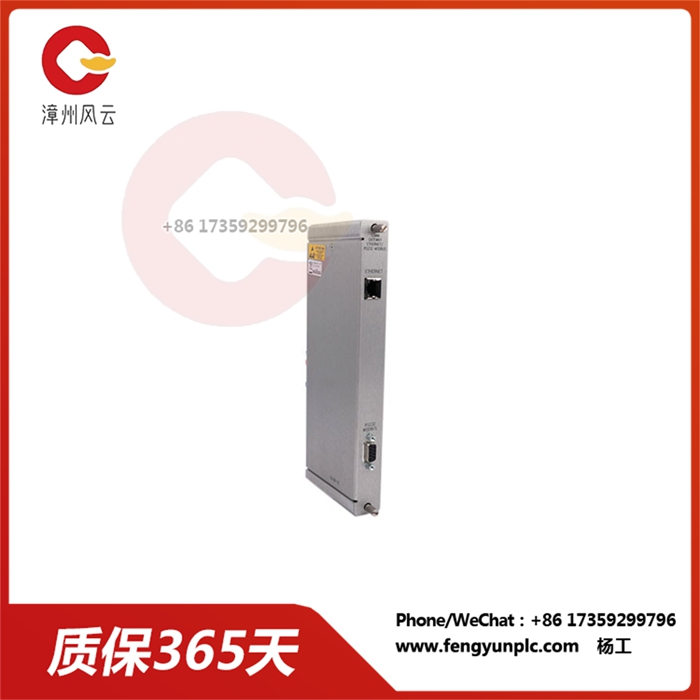

BENTLEY 3500/92-04-01-00 136188-02 通信网关模块

BENTLEY 3500/92-04-01-00 136188-02 通信网关模块

BENTLEY 3500/92-04-01-00 136188-02 通信网关模块

产品概述

Bentley Nevada 3500/92-04-01-00 136188-02 是一个专为工业设备监控而设计的通信网关模块。它主要用于将设备的各种数据（如振动、温度、压力等）从现场采集设备传输到上位机系统，实现对设备的远程监测和控制。

主要功能

数据采集: 从各种传感器和仪表采集数据，包括振动、温度、压力、位移等。

数据转换: 将采集到的模拟信号转换为数字信号，并进行预处理。

协议转换: 支持多种通信协议，如Modbus、Profibus、以太网等，实现与不同设备的互联。

数据传输: 将采集到的数据通过网络传输到上位机系统。

远程配置: 通过网络对模块进行远程配置和参数设置。

产品特点

高可靠性: 适用于恶劣的工业环境，具有较高的可靠性和稳定性。

多协议支持: 支持多种通信协议，适应性强。

灵活配置: 可以根据不同的应用需求进行灵活配置。

模块化设计: 模块化设计方便维护和扩展。

应用场景

发电厂: 监测汽轮机、发电机、泵等设备的运行状态。

石油化工: 监测压缩机、泵、阀门等设备的运行状态。

钢铁冶金: 监测轧机、电机等设备的运行状态。

技术参数（示例）

参数名称参数值

输入通道数 8

输入信号类型 4-20mA， 0-10V， 频率等

输出通道数 4

输出信号类型 数字量，模拟量

通信接口 以太网，RS485

工作温度范围 -20°C~+60°C

BENTLEY 3500/92-04-01-00 136188-02 通信网关模块

Product overview

Bentley Nevada 3500/92-04-01-00 136188-02 is a communications gateway module designed for industrial equipment monitoring. It is mainly used to transmit various data of the equipment (such as vibration, temperature, pressure, etc.) from the field acquisition equipment to the upper computer system to achieve remote monitoring and control of the equipment.

Main function

Data acquisition: Collect data from a variety of sensors and instruments, including vibration, temperature, pressure, displacement, and more.

Data conversion: The collected analog signal is converted into a digital signal and pre-processed.

Protocol conversion: Supports a variety of communication protocols, such as Modbus, Profibus, Ethernet, etc., to achieve interconnection with different devices.

Data transmission: The collected data is transmitted to the upper computer system through the network.

Remote configuration: Remote configuration and parameter setting of the module over the network.

Product characteristics

High reliability: Suitable for harsh industrial environment, with high reliability and stability.

Multi-protocol support: Supports a variety of communication protocols, strong adaptability.

Flexible configuration: Flexible configuration based on different application requirements.

Modular design: Modular design is easy to maintain and expand.

Application scenario

Power plant: Monitor the operation status of turbine, generator, pump and other equipment.

Petrochemical: Monitoring the operation of compressors, pumps, valves and other equipment.

Iron and steel metallurgy: Monitor the operation status of rolling mills, motors and other equipment.

Technical parameters (Example)

Parameter Name Parameter value

Number of input channels 8

Input signal type 4-20mA, 0-10V, frequency, etc

Number of output channels 4

Output signal type Digital, analog

Communication interface Ethernet, RS485

Operating temperature range -20°C to +60°C
