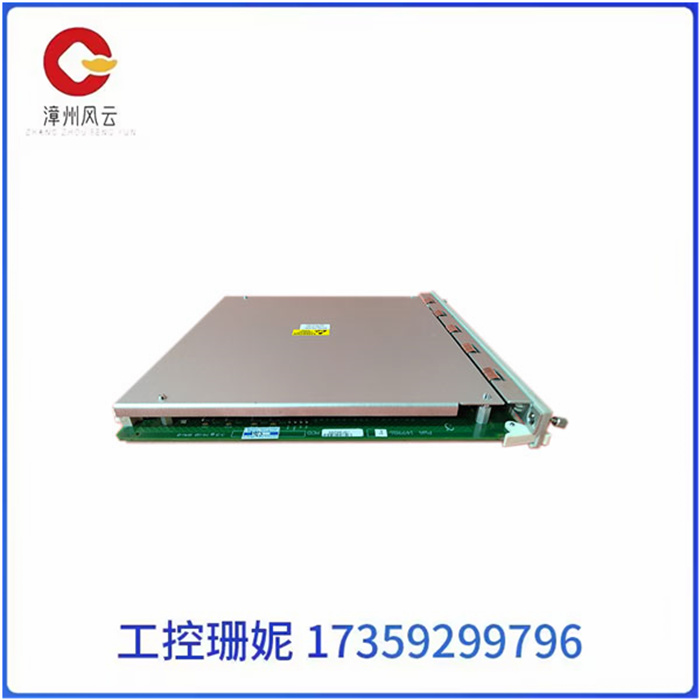

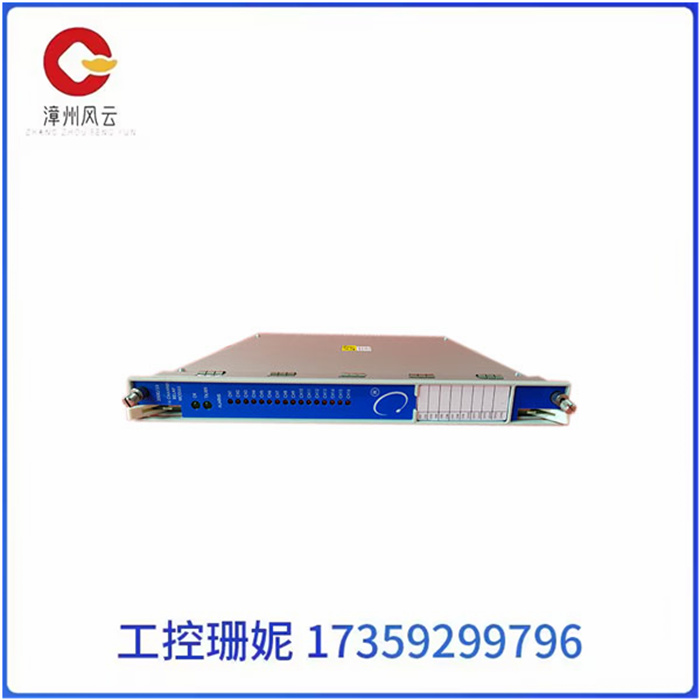

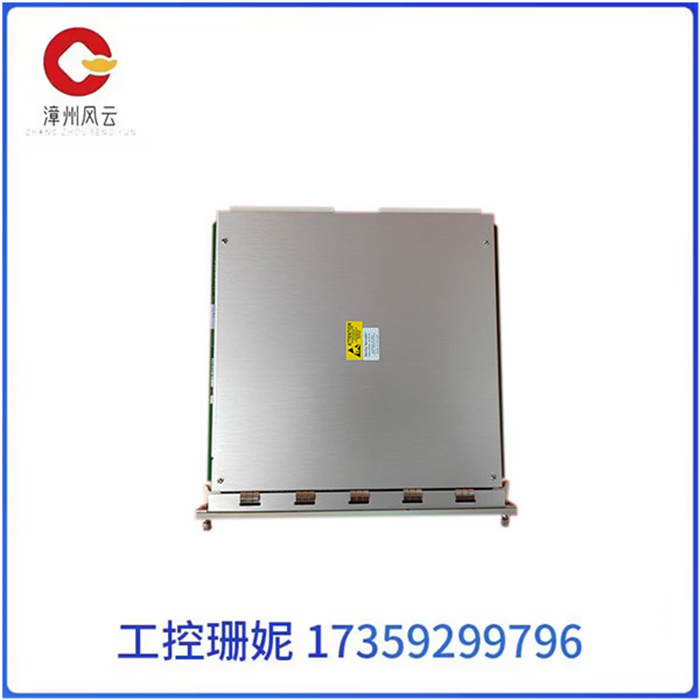

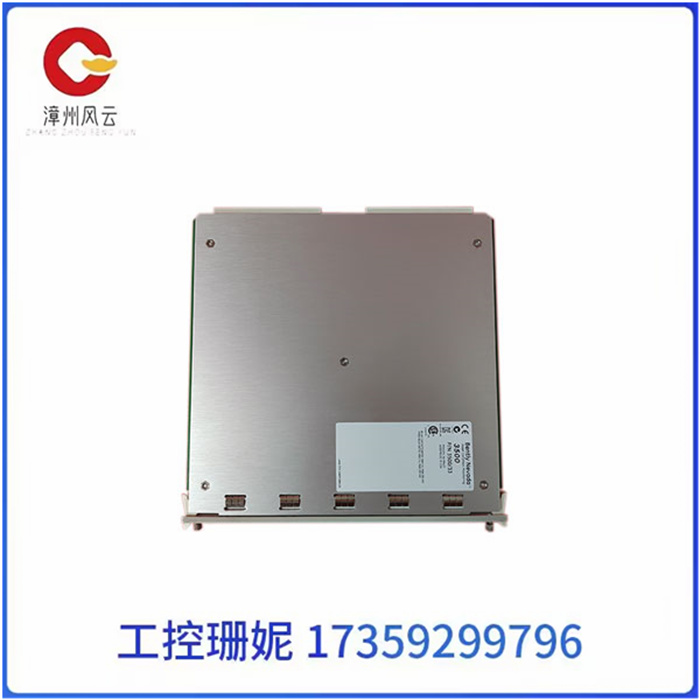

BENTLY NEVADA 3500/33 16通道继电器模块

BENTLY NEVADA 3500/33 16通道继电器模块

描述

16通道继电器模块是一个全高模块，提供16个继电器产出。任何数量的16通道继电器模块可以放置在任何机架接口模块右侧的插槽。16通道的每个输出继电器模块可以独立编程，以执行所需的表决逻辑。

16通道继电器模块上使用的每个继电器都包括“报警驱动逻辑”。用于报警驱动逻辑的编程使用AND和or逻辑，并且可以使用报警输入(警报和危险状态)、不正常或来自机架中的任意监控通道或任意监控通道组合。

用户使用3500框架配置软件对此报警驱动进行编程，以满足应用程序的特定需求。

BENTLY NEVADA 3500/33 16通道继电器模块

Description

The 16 channel relay module is a full height module that provides 16 relay outputs. Any number of 16-channel relay modules can be placed in the slot on the right side of any rack interface module. Each of the 16-channel output relay modules can be programmed independently to perform the required voting logic.

Each relay used on the 16-channel relay module includes "alarm drive logic". Programming for alarm driver logic uses AND and or logic, and can use alarm inputs (alarm and danger states), abnormal or from any monitor channel in the rack, or any combination of monitor channels.

Users program this alarm driver using the 3500 framework configuration software to meet the specific needs of the application.

BENTLY NEVADA 3500/33 16通道继电器模块
