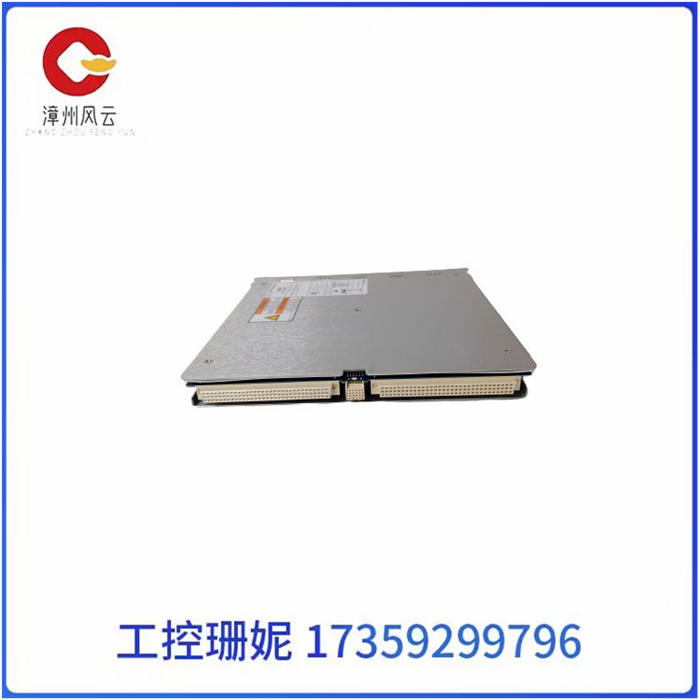

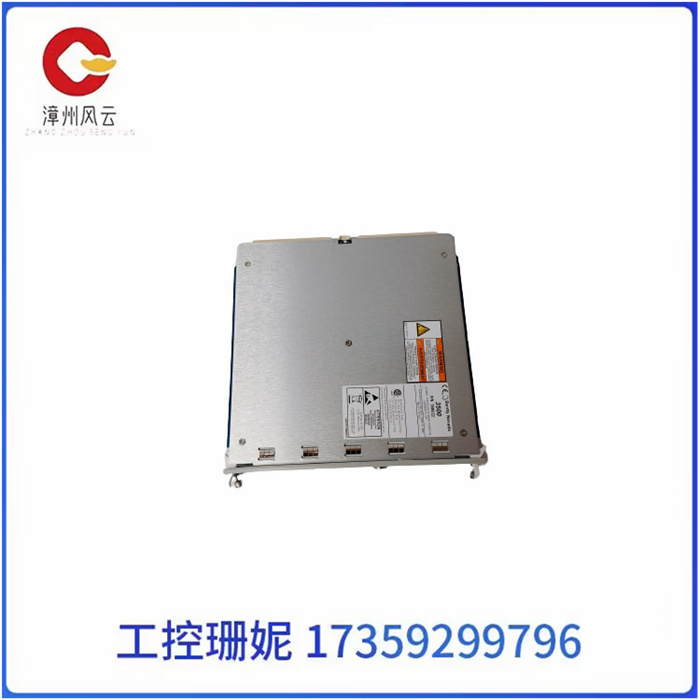

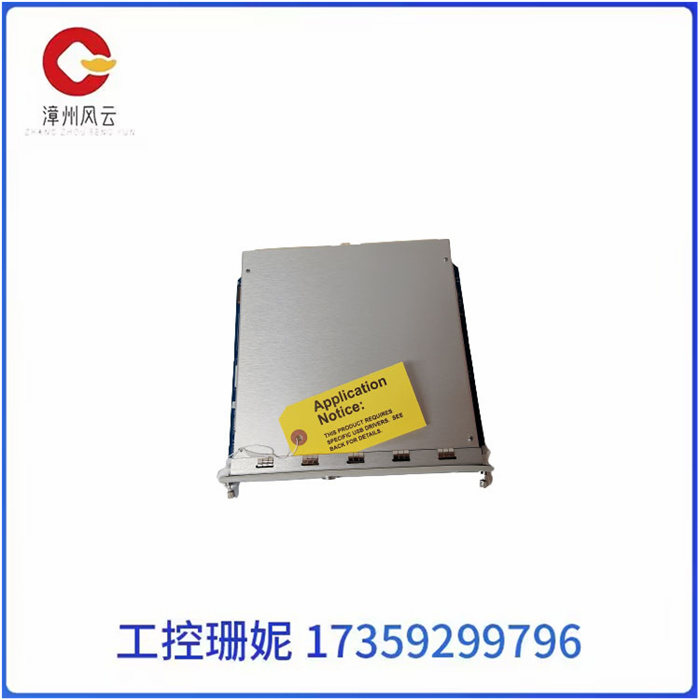

3500/22M 288055-01 接口电源冗余模块模块

3500/22M 288055-01 接口电源冗余模块模块

3500/22M框架接口模块是连接3500框架的基本接口。它支持本特利内华达公司专有协议，用作组态框架和收集机器信息。RIM必须安装在框架的槽位(与电源模块紧挨着)。

RIM提供一个连接，它支持当前本特利内华达通讯处理器(外部瞬态数据接口TDIX和外部动态数据接口DDIX)。

RIM使用两种类型的I/O模块，即框架接口I/O模块和数据管理I/O模块。这些I/O模块让你把主计算机和通讯处理器与3500框架连接起来，一次只能在RIM(盘装或架装框架中)的后面或RIM(壁挂式框架)的上面安装一个框架接口I/O模块。

对于3500监测系统，有效的两种框架接口I/O模块是RS-232/RS-422I/O 模块和调制解调器I/O模块。以下特性为两种I/O模块共有的。

框架接口I/O模块必须安装在框架接口模块的后面(盘装或架装框架)或者在框架接口模块的上面(壁挂式框架)。

3500/22M TDI模块和输入/输出模块的选型如下：

3500/22-AXX-BXX-CXX

A：TDI模块类型

0 1标准（标准监测应用）

0 2TMR（只用于要求三重模块冗余组态时）

B：输入/输出模块类型

0 1 10 base -T/100 base-TX以太网输入/输出模块 0 2 100 base-FX（光纤）以太网输入/输出模块

3500/22M 288055-01 接口电源冗余模块模块

The 3500/22M frame interface module is the basic interface to connect to the 3500 frame. It supports Bentley Nevada proprietary protocols and is used as a configuration framework and to collect machine information. The RIM must be installed in a slot in the frame (next to the PSU).

RIM provides a connection that supports current Bentley Nevada communications processors (External Transient Data Interface TDIX and External Dynamic Data Interface DDIX).

RIM uses two types of I/O modules, the Framework Interface I/O module and the data management I/O module. These I/O modules allow you to connect the main computer and communication processor to the 3500 frame, and only one frame interface I/O module can be installed at a time behind the RIM(disk or rack frame) or on top of the RIM(wall-mounted frame).

For 3500 monitoring systems, the two effective frame interface I/O modules are the RS-232/RS-422I/O module and the modem I/O module. The following features are common to both types of I/O modules.

The frame interface I/O module must be mounted behind the frame interface module (disk or rack mounted frame) or on top of the frame interface module (wall mounted frame).

The selection of 3500/22M TDI modules and input/output modules is as follows:

3500/22-AXX-BXX-CXX

A: Type of the TDI module

0 1 Standard (Standard Monitoring Application)

0 2TMR (Only used when triple module redundancy configuration is required)

B: Input/output module type

0 1 10 base-T /100 base-TX Ethernet input/output module 0 2 100 base-FX (Optical fiber) Ethernet input/output module
