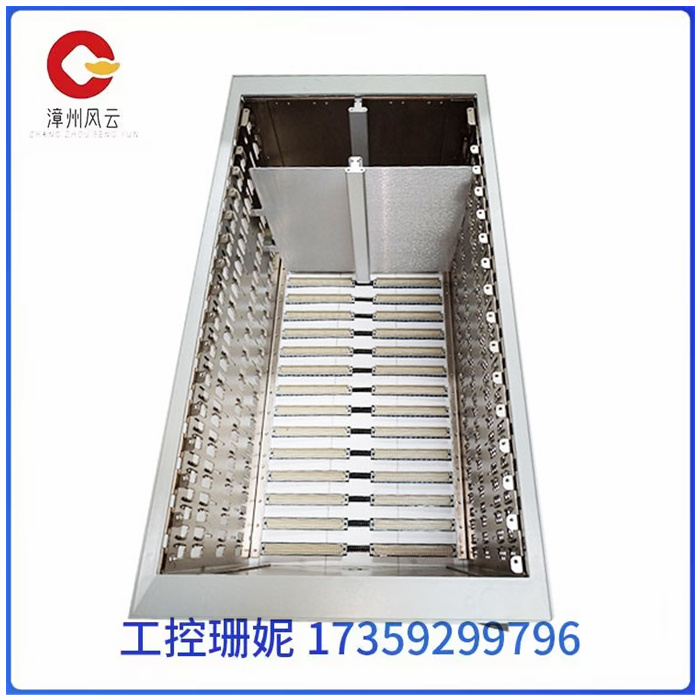

Bently 本特利 350005-01-01-00-00-01 3500/05系统机架

Bently 本特利 350005-01-01-00-00-01 3500/05系统机架

Bently 本特利 350005-01-01-00-00-01 3500/05系统机架

轴振动测量:一般安装X、Y方向两个传感器轴位移测量:轴向位移的变化

键相测量:通过凹槽或凸键产生的脉冲信号，得出转速或键相值

支持的振动监测器和模件:2300/20、1900/65A、3500/42等3500框架系统监测。

趋近式传感器的校准:用本特利TK-3E涡流探头校验仪3500电源是半高度模件，必须安装在框架左边特殊设计的槽口内。

3500框架可装一个或2个电源。任何一个电源都可给整个框架供电。如果是两个电源，电源可做为基本电源的冗余。只要装又一个冗余的电源，拆除或安装另一个电源模件将不会影响框架的运行。

键相器模件是一个半高度、两通道模件，用来为3500框架中的偏心监视模件提供键相位信号。此模件接受来自电涡流传感器或电磁式传感器的输入信号，并转换成数字键相位信号。

Bently 本特利 350005-01-01-00-00-01 3500/05系统机架

Axial vibration measurement: Generally installed X, Y direction two sensors axis displacement measurement: the change of axial displacement

Key phase measurement: Through the pulse signal generated by the groove or convex key, the speed or key phase value is obtained

Supported vibration monitors and modules: 300/20, 1900/65A, 3500/42 and other 3500 frame system monitoring.

Calibration of the approach sensor: Calibrating the instrument 3500 with the Bentley TK-3E eddy current probe is a half-height module that must be installed in a specially designed notch on the left side of the frame.

The 3500 frame can be fitted with one or two power supplies. Any one power source can power the entire frame. If there are two power supplies, the power supply can be used as redundancy of the basic power supply. As long as another redundant power supply is installed, removing or installing another power module will not affect the operation of the frame.

The key phase module is a half-height, two-channel module used to provide a key phase signal to the eccentricity monitoring module in the 3500 frame. This module accepts the input signal from an eddy current sensor or an electromagnetic sensor and converts it into a digital key phase signal.
