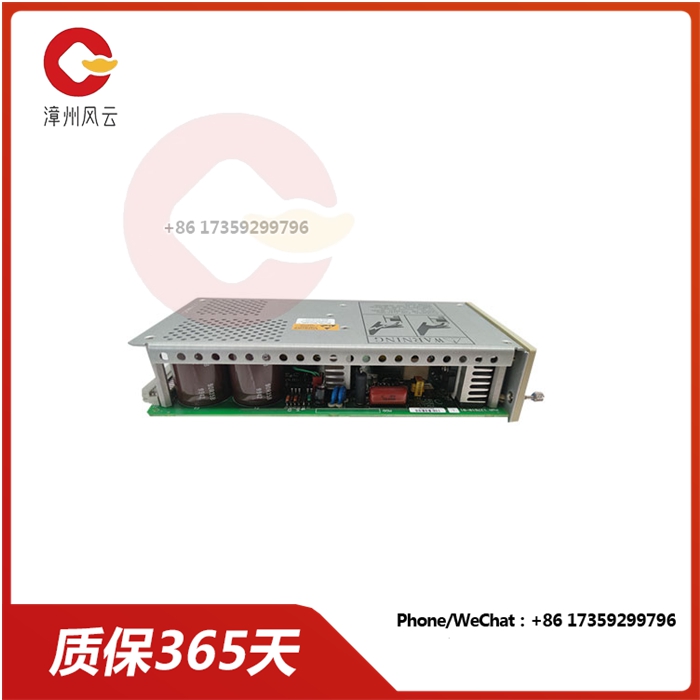

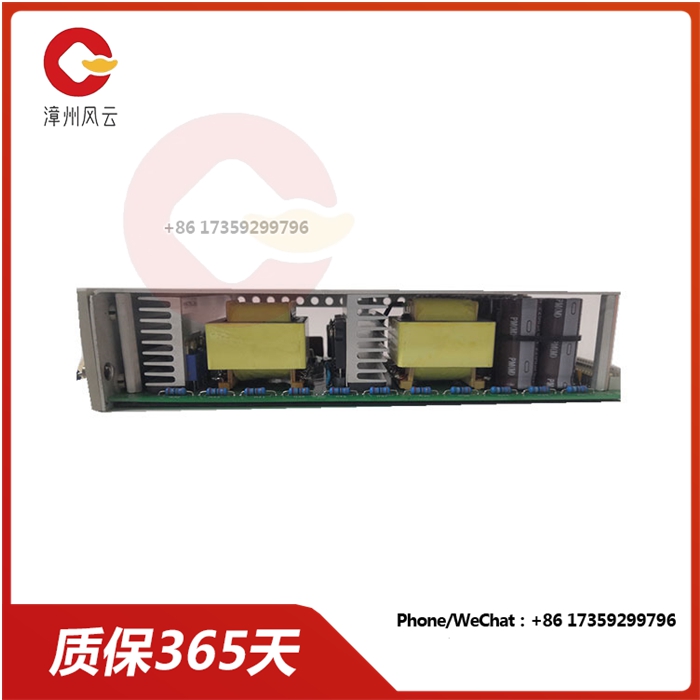

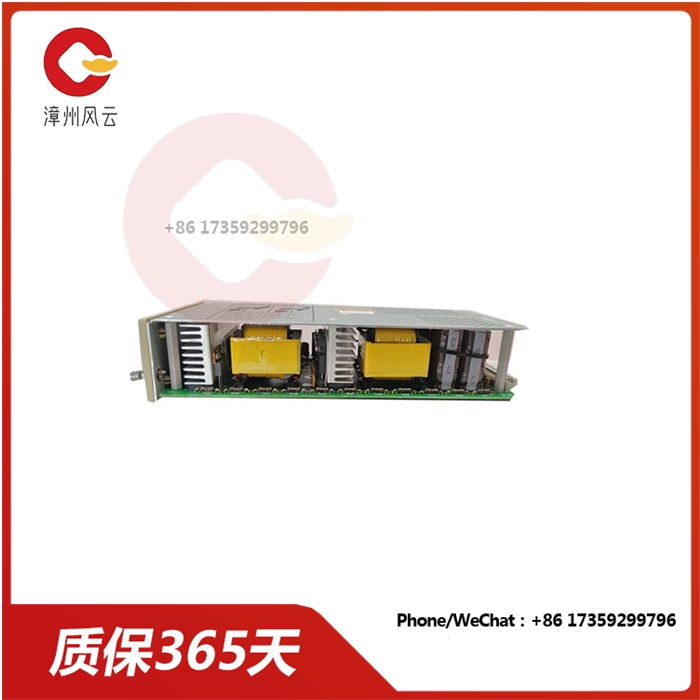

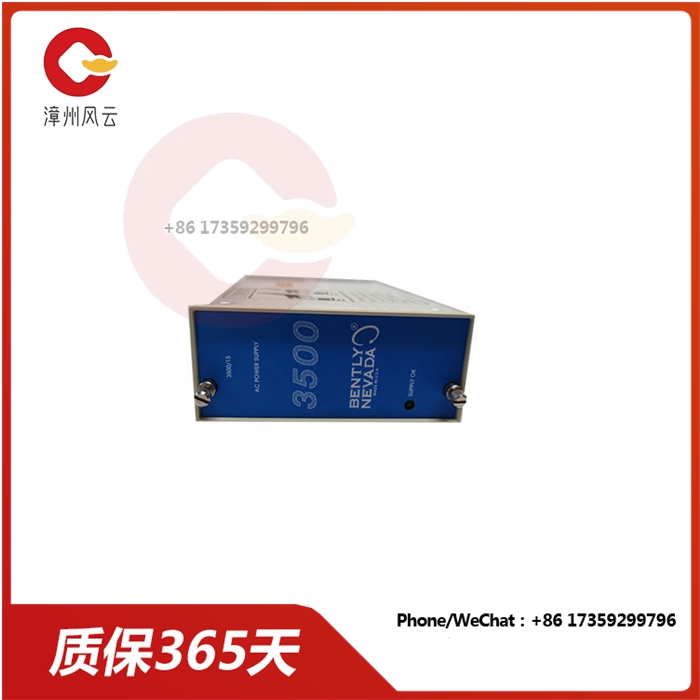

3500/15-01-01-01 交流/直流电源模块

制造商 ： Bently Nevada

产品编号: 3500/15-01-01-01

产品类型 ： 3500/15 电源

01 - 电源类型（顶部插槽）：低压交流（85 至 132 Vac rms）

01 - 电源类型（底部插槽）：低压交流（85 至 132 Vac rms）

01 - 机构批准 ： 01 CSA / NRTL / C（1 类，2 区）

装运重量 ： 3 公斤

3500/15交流/直流电源模块为半高模块，必须安装在机柜左侧的指定槽位上。3500机柜支持单路或双路交流电源和直流电源的任意组合。任何一种电源都可以为整个机架供电。

当机架内安装两个电源时，下槽位的一个作为主电源，上槽位的另一个作备用电源。如果安装了，第二个电源是主电源的备份。

只要安装了另一个电源，插拔任意一个电源模块都不会影响机架的正常运行。

3500/15交流和直流电源接受广泛的输入电压，并将其转换为其他3500模块可接受的电压。以下电源可与3500系列机械保护系统一起使用:

l通用交流电源

l高压直流电源

l低压直流电源

3500/15-01-01-01 交流/直流电源模块

Manufacturer: Bently Nevada

Product Number: 3500/15-01-01

Product Type: 3500/15 power supply

01 - Power Supply type (top slot) : Low voltage AC (85 to 132 Vac rms)

01 - Power Supply type (bottom slot) : Low voltage AC (85 to 132 Vac rms)

01 - Institutional Approval: 01 CSA/NRTL/C (Category 1, Zone 2)

Shipping weight: 3 kg

The 3500/15 AC/DC power module is half-height and must be installed in the specified slot on the left of the cabinet. The 3500 cabinet supports any combination of single or dual AC power supplies and DC power supplies. Any kind of power supply can power the entire rack.

When two power supplies are installed in a rack, one in the lower slot serves as the active power supply, and the other in the upper slot serves as the standby power supply. If installed, the second power supply is a backup of the main power supply.

As long as the other power supply is installed, the insertion or removal of either power module does not affect the normal running of the rack.

The 3500/15 AC and DC power supplies accept a wide range of input voltages and convert them to voltages acceptable to other 3500 modules. The following power supplies can be used with the 3500 Series mechanical protection system:

l Universal AC power supply

l High voltage DC power supply

l Low voltage DC power supply
