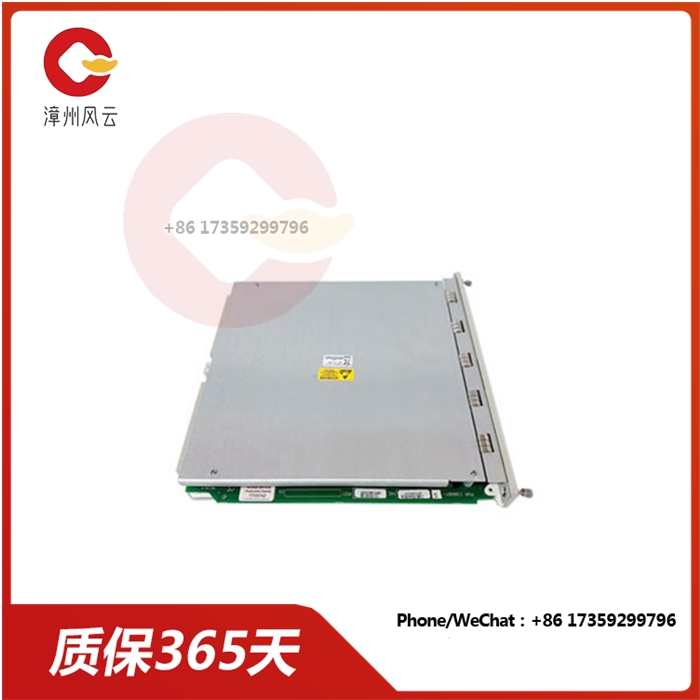

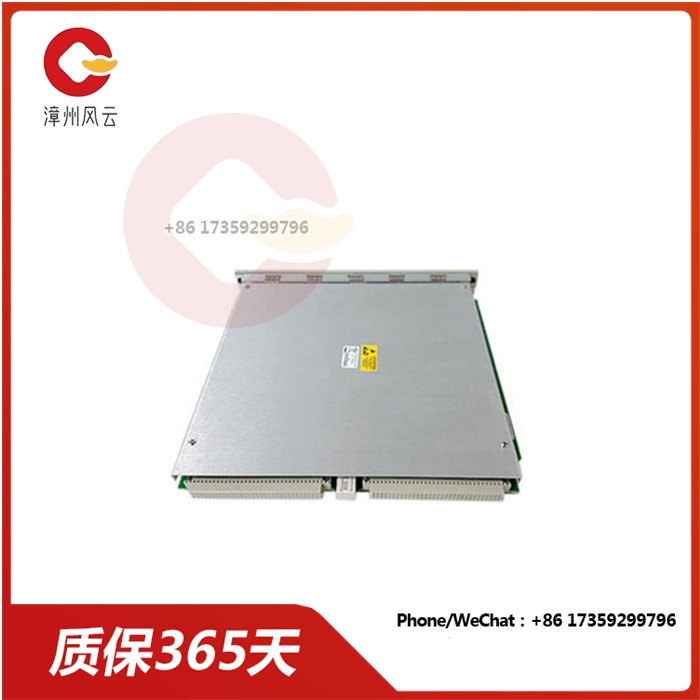

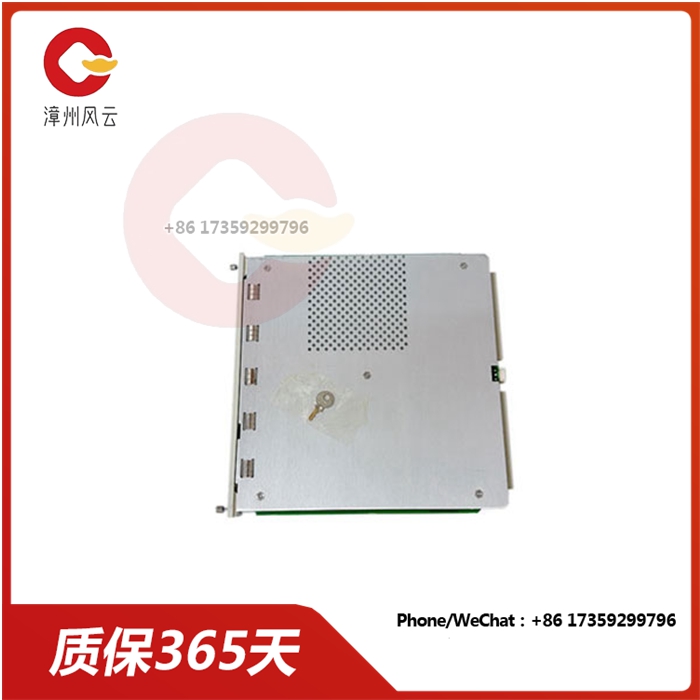

3500/22M 138607-01AE|瞬态数据接口模块

部件号:138607-01

系列:3500/22M

产品类型:瞬态数据接口模块

采样率:samples/s

产品特点

高速数据采集：能够以高采样率采集瞬态数据，捕捉设备运行过程中的快速变化。

多通道输入：支持多通道同时采集数据，提高数据采集效率。

灵活配置：通过软件配置，可以灵活设置采集参数、触发条件等。

数据分析功能：提供强大的数据分析功能，帮助用户快速定位故障。

3500/ 22m暂态数据接口(TDI)是3500监控系统与兼容软件(system 1状态监测与诊断软件和3500系统组态软件)之间的接口。TDI结合了3500/20机架接口模块(RIM)的功能和通信处理器(如TDXnet)的数据采集能力。

在3500机柜中，TDI安装在靠近电源的槽位。它与M系列监视器(3500/40M, 3500/42M等)接口，连续采集稳态和瞬态动态(波形)数据，并通过以太网链路将这些数据传递给主机软件。有关更多信息，请参阅本文档末尾的兼容性部分。

静态数据捕获功能是TDI的标准配置。但是，使用可选的通道启用磁盘将允许TDI捕获动态和高分辨率的瞬态数据。TDI集成了3500机架内的通信处理器功能。

虽然TDI提供了整个机架通用的某些功能，但它不是关键监控路径的一部分，对整个自动机械保护监控系统的正常运行没有影响。每个3500机架需要1个TDI或RIM，总是占用1号槽位(电源旁边)。

3500/22M 138607-01AE|瞬态数据接口模块

Part number :138607-01

Series :3500/22M

Product type: transient data interface module

Sample rate :samples/s

Product characteristics

High-speed data acquisition: It can collect transient data at a high sampling rate to capture rapid changes during the operation of the equipment.

Multi-channel input: supports multi-channel data collection at the same time to improve data collection efficiency.

Flexible configuration: Through software configuration, you can flexibly set collection parameters and trigger conditions.

Data analysis: Provides powerful data analysis functions to help users quickly locate faults.

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (system 1 condition monitoring and diagnosis software and 3500 system configuration software). The TDI combines the capabilities of a 3500/20 rack interface module (RIM) with the data acquisition capabilities of a communications processor such as TDXnet.

In cabinet 3500, the TDI is installed in a slot close to the power supply. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady-state and transient dynamic (waveform) data and pass this data to the host software via an Ethernet link. For more information, see the Compatibility section at the end of this document.

Static data capture is standard in TDI. However, enabling the disk with an optional channel will allow TDI to capture dynamic and high-resolution transient data. The TDI integrates communication processor capabilities within 3500 racks.

Although TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no impact on the normal operation of the overall automatic mechanical protection monitoring system. Each 3500 rack requires 1 TDI or RIM, always occupying slot 1 (next to the power supply).
