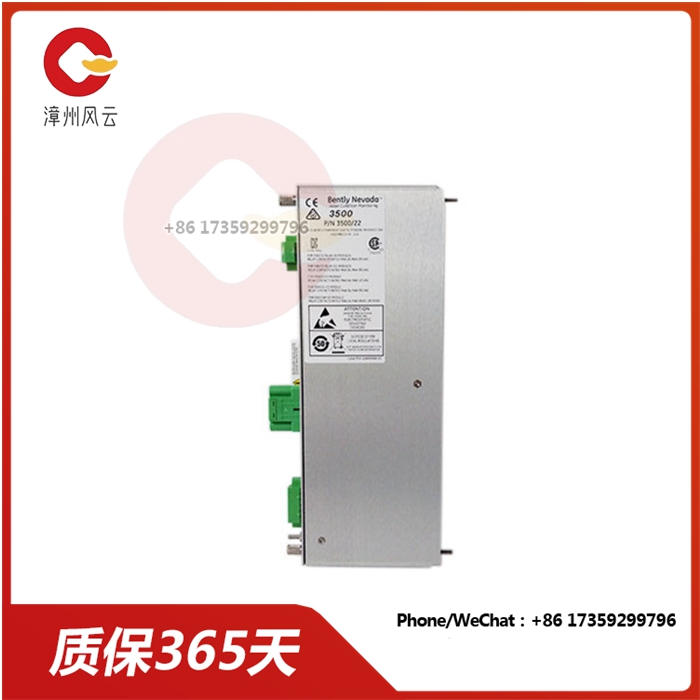

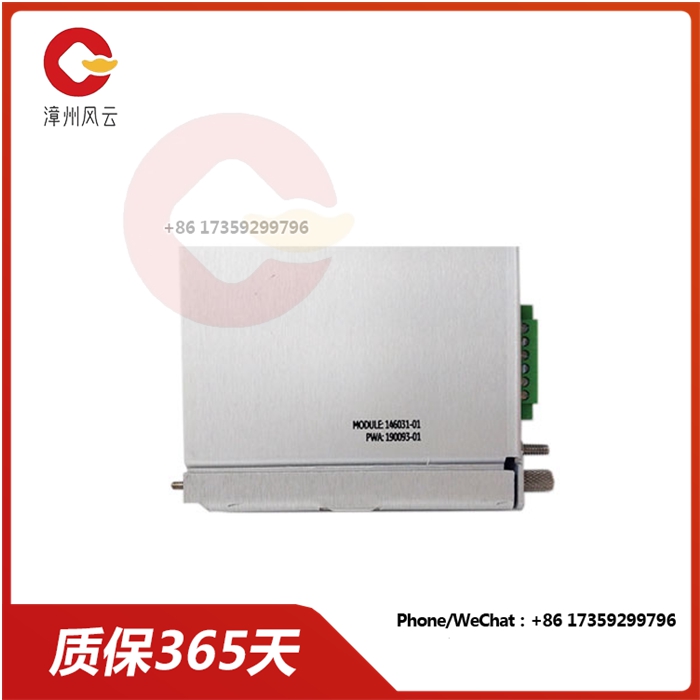

3500/22M 146031-01|瞬态数据接口

产品详情：

接口：作为兼容的 PCI 夹层卡 （PMC） 模块，它提供双通道或四通道 10Base-T/100Base-TX/1000Base-T 接口。

传输速率：每个以太网接口支持 10、100 和 1000 mbit 传输速率。

闪存支持：配备 16 mbit 串行闪存，支持 PXE 和 iSCSIboot。

协议支持：支持 IEEE 1588/802.1 作为精确时间协议 （PTP） 和 IEEE 802.1Qav 音频/视频桥接 （AVB） 流量整形。

端口特性：所有端口都与以太网控制器和LED电气隔离，指示板上

的不同工作活动

3500瞬态数据接口（TDI）是3500监测系统和本特利内华达 System 1TM 机械管理软件之间的接口。TDI结合了3500/20框架接口模块（RIM）和通讯处理器，如TDXnet的功能。TDI运行在3500框架的RIM插槽中，与M系列监测器（3500/40M、3500/42M等）配合使用，连续采集稳态和瞬态波形数据，并通过以太网将数据传送到主计算机软件。TDI具有标准的静态数据采集，但是采用可选的通道使能磁盘，也可采集瞬态或动态数据。TDI与以前的通讯处理器相比，除了将通讯处理器的功能集成到3500框架以外，还有其它几方面的改进。

3500/22M 146031-01|瞬态数据接口

Product Details:

Interface: As a compatible PCI Sandwich card (PMC) module, it offers dual or quad-channel 10Base-T/100Base-TX/1000Base-T interfaces.

Transmission rate: Each Ethernet interface supports transmission rates of 10, 100, and 1000 mbit.

Flash support: Equipped with 16 mbit serial flash memory, supports PXE and iSCSIboot.

Protocol support: Support IEEE 1588/802.1 as Precision Time Protocol (PTP) and IEEE 802.1Qav Audio/Video Bridge (AVB) traffic shaping.

Port features: All ports are electrically isolated from the Ethernet controller and LED on the dashboard

Different work activities

The 3500 Transient Data Interface (TDI) is the interface between the 3500 monitoring System and the Bentley Nevada System 1TM machine management software. TDI combines the capabilities of 3500/20 Framework Interface Modules (RIM) and communication processors such as TDXnet. The TDI runs in the RIM slot of the 3500 frame and is used in conjunction with the M Series monitor (3500/40M, 3500/42M, etc.) to continuously collect steady-state and transient waveform data and transmit the data to the main computer software via Ethernet. TDI has standard static data acquisition, but enables the disk with an optional channel to also capture transient or dynamic data. In addition to integrating the capabilities of the communication processor into the 3500 framework, TDI has several other improvements over previous communication processors.
