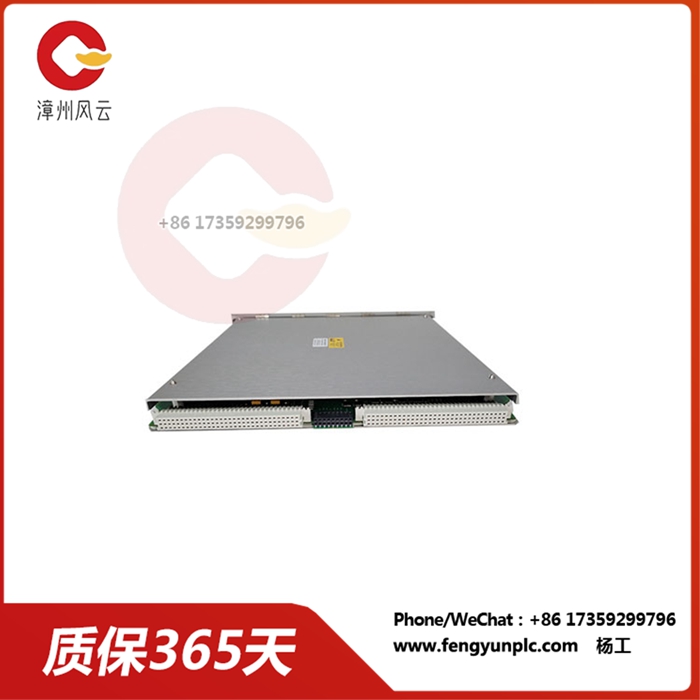

3500/50 133434-01 3500/50M 转速计模块

3500/50 133434-01 3500/50M 转速计模块

3500/50M转速计模块是一个2通道模块,接受来自电涡流探头或磁性传感器的输入,以确定轴的旋转速度,转子加速度或转子方向。该模块将这些测量值与用户可编程的警报设定值进行比较，并在超出设定值时生成警报。

转速计模块使用 3500 机架配置软件进行编程。以下配置选项可用：

L速度监控，设定点警报和速度带警报

L速度监控，设定点警报和零速通知

L速度监控，设定点警报和转子加速度警报

L速度监控，设定点警报和反转通知

3500/50M转速计模块可配置为向3500机架的背板提供经过调节的键相信号,以供其他显示器使用。因此，机架中不需要单独的关键字模块。3500/50m转速计模块具有峰值保持功能，可存储机器已达到的最高速度，最高倒车速度或倒转次数。您可以重置峰值。

3500/50 133434-01 3500/50M 转速计模块

The 3500/50M tachometer module is a 2-channel module that accepts input from an eddy current probe or magnetic sensor to determine the rotational speed of the shaft, rotor acceleration or rotor direction. The module compares these measurements with user-programmable alarm setpoints and generates alerts when the setpoints are exceeded.

The tachometer module is programmed using 3500 rack configuration software. The following configuration options are available:

l Speed monitoring, set point alerts and speed band alerts

Speed monitoring, set point alerts and zero speed notifications

l Speed monitoring, set point alarm and rotor acceleration alarm

Speed monitoring, set point alerts, and reverse notifications

The 3500/50m tachometer module can be configured to provide an adjusted key trust to the backplane of the 3500 rack for use by other displays. Therefore, there is no need for a separate Keyphasor module in the rack. The 3500/50M tachometer module has a peak-hold function that stores the maximum speed, maximum reverse speed or number of reversals the machine has achieved. You can reset the peak.
