本特利Bently Nevada 3500/25-PWA149369-01键相模块

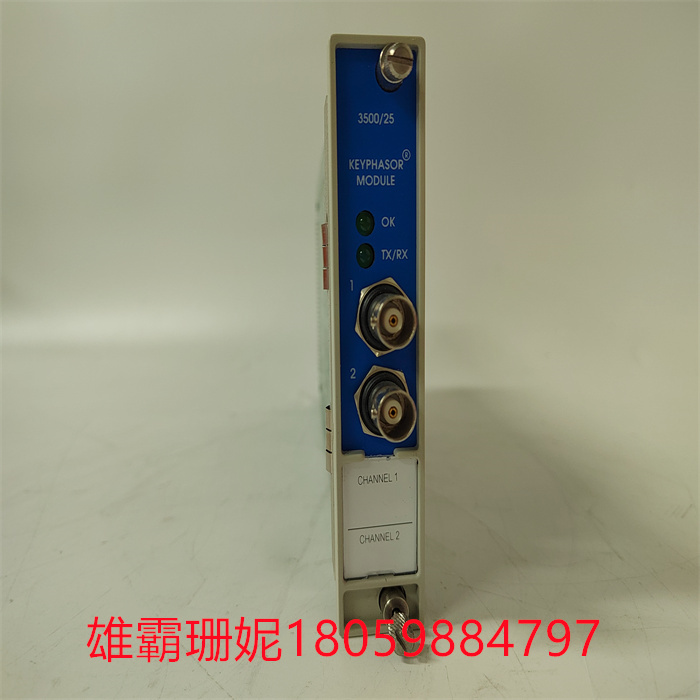

3500/25-PWA149369-01 是增强型键相模块由 Bently Nevada 制造，用于机械状态监测系统。称为 3500/25 增强型键相模块的半高双通道模块将键相信号传输到 3500 机架中的监视器模块。

当轴上的键相标记与键相传感器对齐时，模块使用磁性传感器或接近探头检测对齐情况，并将输入信号转换为数字键相信号。对于常规设置，3500 机械保护系统最多可以接受四个键相信号，对于配对配置，它最多可以接受八个。

增强型 3500 系统模块称为增强型键相模块。在保持与现有 Keyphasor 模块的形状、配合和功能方面的完全向下兼容性的同时，可在遗留系统中使用，与之前的设计相比，它提供了增强的 Keyphasor 信号处理能力。修改后的 149369-01 模块完全取代了 Keyphasor 模块 PWA 125792-01。

The 3500/25-PWA149369-01 is an enhanced bond phase module manufactured by Bently Nevada for mechanical condition monitoring systems. A half-height dual-channel module known as the 3500/25 Enhanced Key Phase module transmits the key signal to the monitor module in the 3500 frame.

When the key phase marker on the axis is aligned with the key phase sensor, the module detects the alignment using a magnetic sensor or proximity probe and converts the input signal into a digital key trust signal. The 3500 Mechanical protection system can accept up to four key trust numbers for a regular setup and up to eight for a paired configuration.

The enhanced 3500 system module is called the Enhanced bond phase module. While maintaining full backward compatibility with existing Keyphasor modules in terms of shape, fit, and functionality, it can be used in legacy systems, providing enhanced Keyphasor signal processing capabilities compared to previous designs. The modified 149369-01 module completely replaces the Keyphasor module PWA 125792-01.
