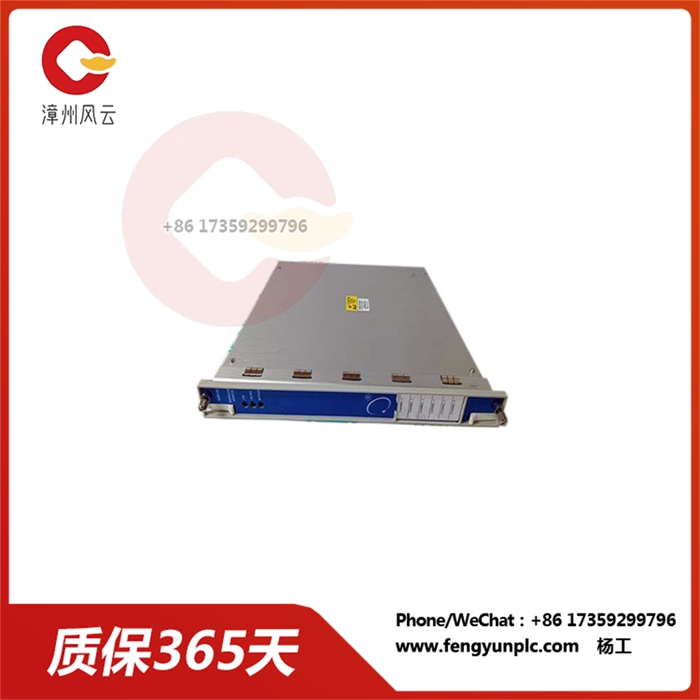

136483-01 背板隔离模块是 Bently Nevada 3500/20 系列机架接口模块 （RIM） 的一个组件。它用作RIM背板和模块组件其余部分之间的物理和电气屏障，为模块的内部电路提供隔离和保护。

主要特点：

背板隔离：136483-01 模块将 RIM 的背板与模块组件的其余部分隔离开来，防止电气噪声和干扰影响模块的敏感电子设备。

接地隔离：它在背板和模块之间提供接地隔离，防止接地回路和不需要的电流中断模块的运行。

EMI/RFI 保护：该模块可保护 RIM 的内部电路免受电磁干扰 （EMI） 和射频干扰 （RFI） 的影响。保护它免受外部噪声源的影响。

坚固的结构：专为承受恶劣的工业环境而设计，136483-01 模块可以承受极端温度，振动和冲击。

兼容性：

136483-01 背板隔离模块与以下 Bently Nevada 机架接口模块 （RIM） 兼容：

3500-20-00:3500/20 系列 RIM 的基本型号。

3500-20-01:3500-20-00 RIM 的增强版本，具有附加功能。

应用：

136483-01 背板隔离模块在各行各业的各种机械保护和状态监测系统中发挥着至关重要的作用，包括：

发电：保护用于监测涡轮机的 RIM，发电机以及发电厂中的其他旋转设备。

石油和天然气：保护监控泵的 RIM，压缩机以及石油和天然气生产和加工设施中的阀门。

石油化：保护石化炼油厂和加工厂的机械。

制造业：监控电机，轴承和制造工厂的齿轮箱。

纸浆和造纸：保护纸浆和造纸厂的机械。

好处：

利用 136483-01 背板隔离模块具有以下几个优点：

增强的系统可靠性：通过隔离背板并提供接地隔离，该模块可保护RIM的电子设备免受噪音影响，干扰和接地回路，提高整体系统可靠性。

改进的信号完整性：隔离可最大限度地减少信号失真，并确保准确的数据传输，提高机械状态监测数据的质量。

降低电磁干扰 （EMI）：屏蔽 EMI 和 RFI 可防止外部噪声源干扰 RIM 的运行，确保性能稳定可靠。

延长产品寿命：该模块的坚固结构可保护RIM的内部电路免受恶劣环境条件的影响。延长设备的使用寿命。

与各种 RIM 型号的兼容性：136483-01 模块与多种 RIM 型号兼容，提供灵活性和易于集成。

136483-01 背板隔离模块在确保可靠性方面发挥着至关重要的作用。信号完整性，以及 Bently Nevada 机架接口模块的 EMI 保护，有助于加强机械状态监测，减少停机时间，并延长各种工业应用的设备使用寿命。
