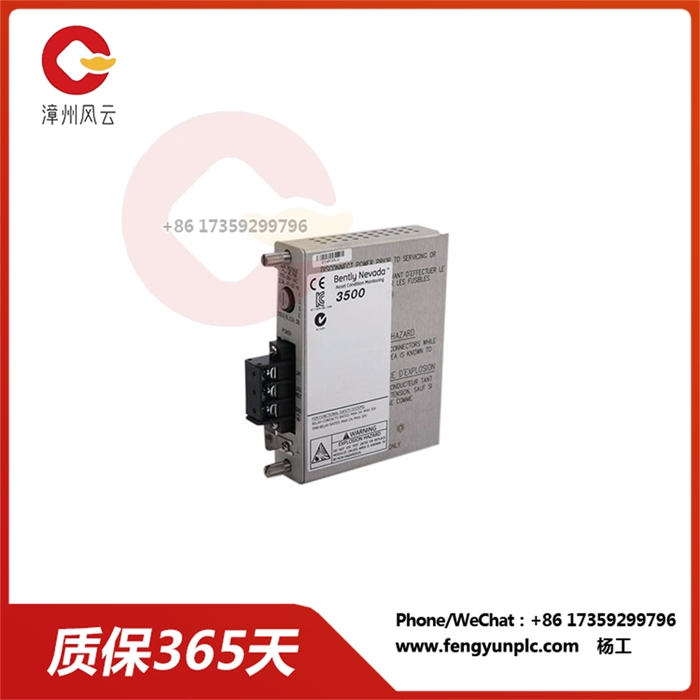

125840-01 交流电源模块

125840-01 交流电源模块

125840-01 交流电源输入模块是本特利内华达 3500/20 系列机架接口模块 （RIM） 的关键组件。它是RIM交流电源的主要来源，将输入的交流电源转换为机架内部电路所需的稳压直流电压。

主要特点：

交流电源输入：125840-01 模块接受指定电压范围内的单相交流电源，通常为 110-240 VAC。

直流电源转换：它有效地将输入的交流电源转换为稳压直流电压，为RIM的电子设备提供稳定可靠的电源。

过载保护：集成的过载保护电路可保护模块和连接的设备免受过大电流消耗或短路造成的损坏。

高效率：该模块专为高效率而设计，最大限度地减少功率损耗和发热。

坚固的结构：专为承受恶劣的工业环境而设计，125840-01 模块可以承受极端温度，振动和冲击。

兼容性：

125840-01 交流电源输入模块与以下 Bently Nevada 机架接口模块 （RIM） 兼容：

3500-20-00：3500/20 系列 RIM 的基本型号。

3500-20-01: An enhanced version of the 3500-20-00 RIM with additional features.

应用：

125840-01 交流电源输入模块在各行各业的各种机械保护和状态监测系统中发挥着关键作用。包括：

发电：为用于监测涡轮机的RIM供电，发电机以及发电厂中的其他旋转设备。

石油和天然气：为监控泵的 RIM 供电，压缩机以及石油和天然气生产和加工设施中的阀门。

石油化：为保护石化炼油厂和加工厂机械的 RIM 提供动力。

制造业：为监控电机的RIM供电，轴承和制造工厂的齿轮箱。

纸浆和造纸：为保护纸浆和造纸厂机械的 RIM 供电。

好处：

使用 125840-01 交流电源输入模块具有以下几个优点：

可靠的电源：该模块确保为 RIM 提供稳定可靠的电源，防止机械监控和保护系统中断。

增强的系统正常运行时间：通过提供一致的功率，125840-01 模块有助于减少停机时间并延长整体系统正常运行时间。

关键设备保护：过载保护可保护模块和连接的设备免受损坏，防止昂贵的维修和计划外停机。

高效的电源转换：高效率最大限度地减少了能源消耗和热量的产生，降低运营成本和环境影响。

坚固的结构：该模块的耐用性确保了在恶劣的工业环境中可靠运行。

125840-01 交流电源输入模块在为 Bently Nevada 机架接口模块提供可靠、高效的电源方面发挥着至关重要的作用。有助于延长系统正常运行时间，设备保护，以及在各种工业应用中的高效运行。

125840-01 交流电源模块

The 125840-01 AC power input module is a key component of the Bentley Nevada 3500/20 Series Rack Interface Module (RIM). It is RIM's primary source of AC power, converting input AC power into the regulated DC voltage required for the circuit inside the rack.

Main features:

Ac power input: The 125840-01 module accepts single-phase AC power in the specified voltage range, usually 110-240 VAC.

Dc Power conversion: It effectively converts input AC power to regulated DC voltage, providing a stable and reliable power supply for RIM's electronic devices.

Overload protection: Integrated overload protection circuits protect modules and connected devices from damage caused by excessive current consumption or short circuits.

High efficiency: The module is designed for high efficiency, minimizing power loss and heating.

Rugged construction: Designed to withstand harsh industrial environments, the 125840-01 module can withstand extreme temperatures, vibrations and shocks.

Compatibility:

The 125840-01 AC power input module is compatible with the following Bently Nevada Rack Interface Modules (RIM) :

3500-20-00:35 00/20 series Basic model of RIM.

3500-20-01: An enhanced version of the 3500-20-00 RIM with additional features.

Applications:

The 125840-01 AC power input module plays a key role in a wide range of mechanical protection and condition monitoring systems in a wide range of industries. Includes:

Power generation: Power the RIM used to monitor turbines, generators, and other rotating equipment in power plants.

Oil and Gas: Supplies power to RIM that monitors pumps, compressors, and valves in oil and gas production and processing facilities.

Petrification: Powers the RIM that protects machinery in petrochemical refineries and processing plants.

Manufacturing: RIM power supply for monitoring motors, bearings and gearboxes for manufacturing plants.

Pulp and Paper: Power RIM, which protects pulp and paper mill machinery.

Benefits:

Using the 125840-01 AC power input module has the following advantages:

Reliable Power supply: This module ensures a stable and reliable power supply to RIM, preventing interruptions in mechanical monitoring and protection systems.

Enhanced system uptime: By providing consistent power, the 125840-01 module helps reduce downtime and extend overall system uptime.

Critical equipment protection: Overload protection protects modules and connected equipment from damage, preventing costly repairs and unplanned downtime.

Efficient power conversion: High efficiency minimizes energy consumption and heat generation, reducing operating costs and environmental impact.

Rugged construction: The durability of the module ensures reliable operation in harsh industrial environments.

The 125840-01 AC power input module plays a vital role in providing reliable, efficient power for Bently Nevada rack interface modules. Helps extend system uptime, equipment protection, and efficient operation in a variety of industrial applications.
