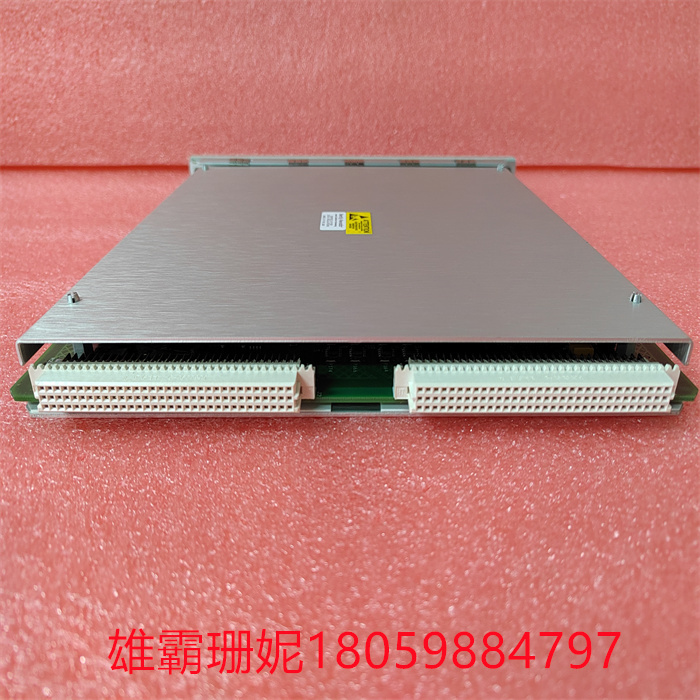

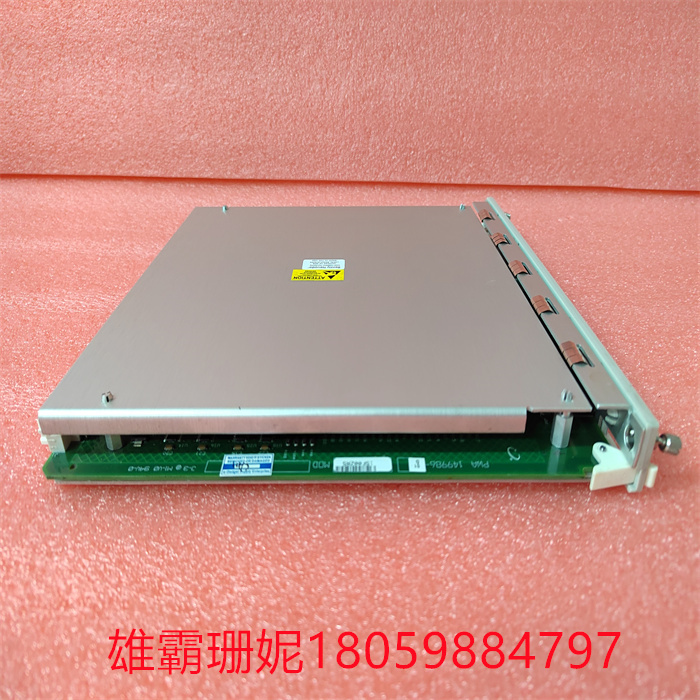

本特利3500/33-149986-01汽轮机安全监视系统继电器卡件前面板

本特利3500/33-149986-01汽轮机安全监视系统继电器卡件前面板

3500/33 16通道继电器模块是一个全高模块，它  提供16个继电器输出。您可以放置任意数量的16通道  瞬态数据右侧任何插槽中的继电器模块  接口(TDI)模块

3500/33 16通道继电器模块的每个输出可以是  独立编程以执行表决逻辑。  模块的每个继电器都包括报警驱动逻辑。编程用于  报警驱动逻辑使用AND和OR逻辑，也可以使用

以下:  l报警输入(警报和危险状态)  来自任何监控通道或任何  机架中监视器通道的组合  您可以使用3500框架配置对报警驱动进行编程  软件。

The 3500/33 16-channel relay module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel transient data on the right side of any slot in the Relay Module Interface (TDI) module

Each output of the 3500/33 16-channel relay module can be independently programmed to perform voting logic. Each relay in the module includes alarm drive logic. Programming for alarm driver logic using AND AND OR logic can also be used

The following: l Alarm inputs (alarm and danger status) from any monitor channel or a combination of monitor channels in any rack You can program the alarm driver software using the 3500 frame configuration.
