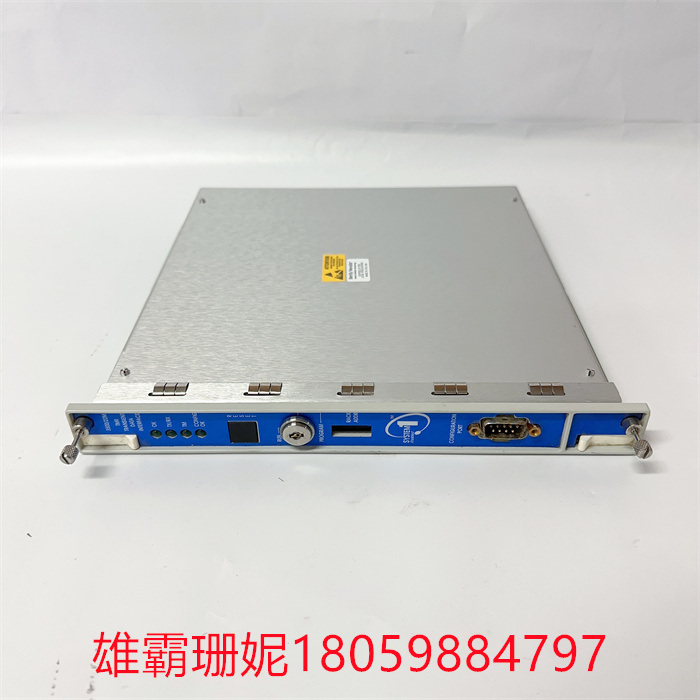

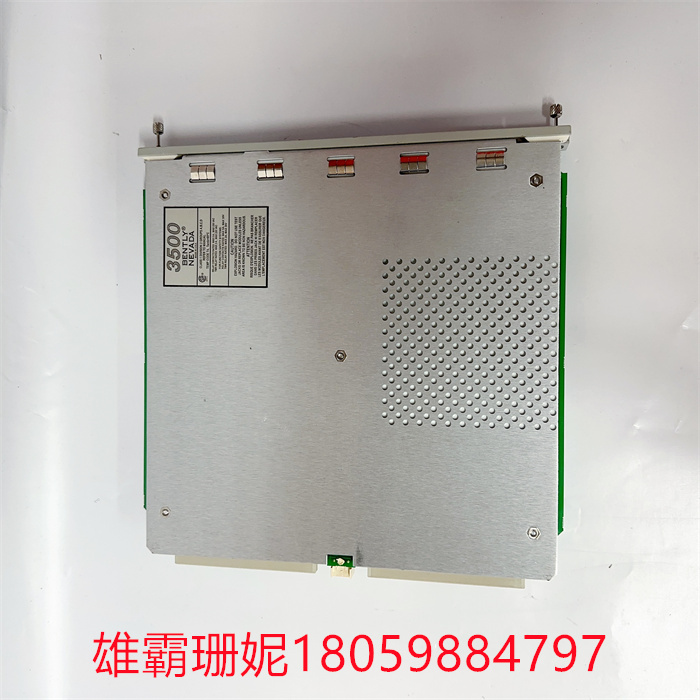

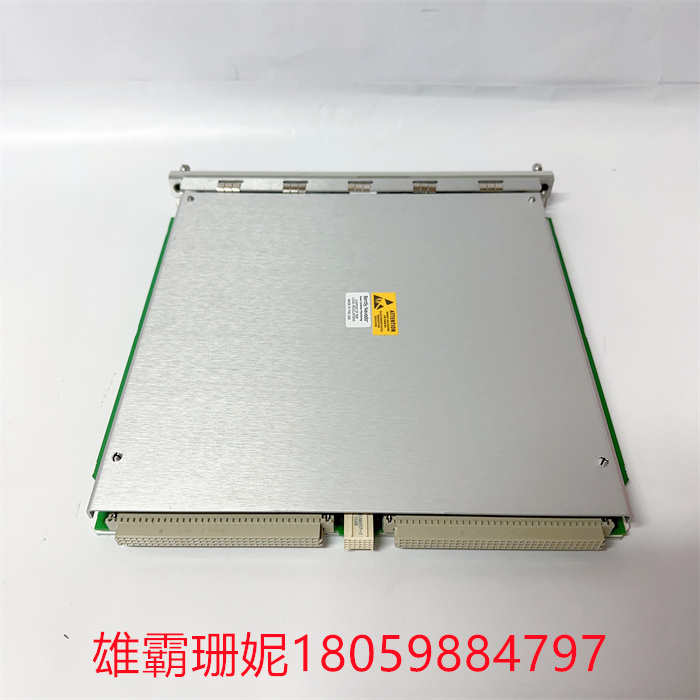

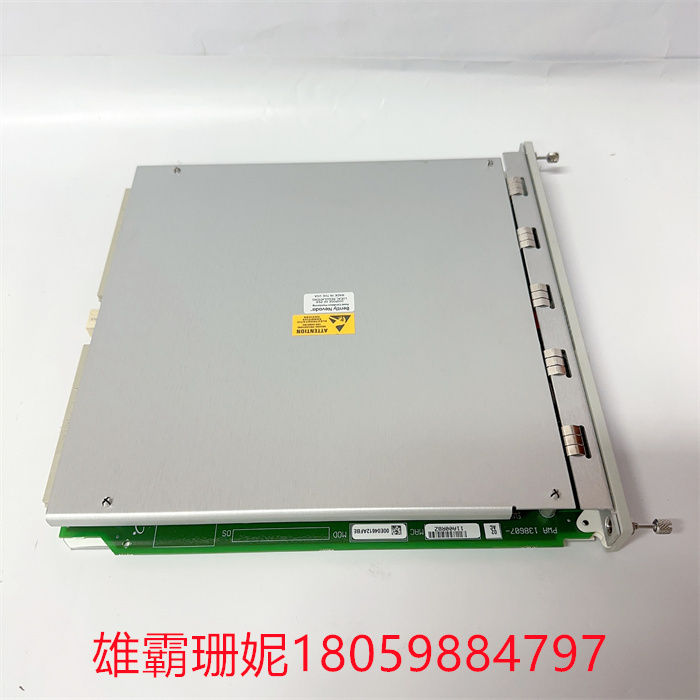

本特利 138607-01 3500/22M模块 全新

本特利 138607-01 3500/22M模块 全新

3500/22M瞬态数据接口(TDI)是3500监测系统和本特利内华达System 1TM机械管理软件之间的接口。TDI别离了3500/20框架接口模块(RIM)和通讯处置器，如TDXnet的功用。

TDI运转在3500/22M框架的RIM插槽中，与M系列监测器(3500/40M、3500/42M等)配合运用，连续采集稳态和瞬态波形数据，并经过以太网将数据传送到主计算机软件。TDI具有标准的静态数据采集，但是采用可选的通道使能磁盘，也可采集瞬态或动态数据。

TDI与以前的通讯处置器相比，除了将通讯处置器的功用集成到3500框架以外，还有其它几方面的改进。TDI为框架提供通用功用，但并不是关键监测通道的组成部分，不影响整个监测系统的正确和常规运转。每个框架恳求一个TDI或RIM。TDI只占用框架中的一个槽位，须位于一个插槽中(紧邻电源模块)。

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring System and the Bentley Nevada System 1TM machine management software. TDI separates the functions of 3500/20 Framework Interface Modules (RIM) and communication handlers such as TDXnet.

The TDI operates in the RIM slot of the 3500/22M frame and is used in conjunction with the M series monitor (3500/40M, 3500/42M, etc.) to continuously collect steady-state and transient waveform data and transmit the data to the main computer software over Ethernet. TDI has standard static data acquisition, but enables the disk with an optional channel to also capture transient or dynamic data.

TDI offers several improvements over previous communication handlers in addition to integrating the functionality of the communication handler into the 3500 framework. TDI provides a common function for the framework, but is not part of the critical monitoring channel and does not affect the correct and regular operation of the overall monitoring system. Each framework requests a TDI or RIM. The TDI occupies only one slot in the frame and must be located in one slot (next to the power module).
